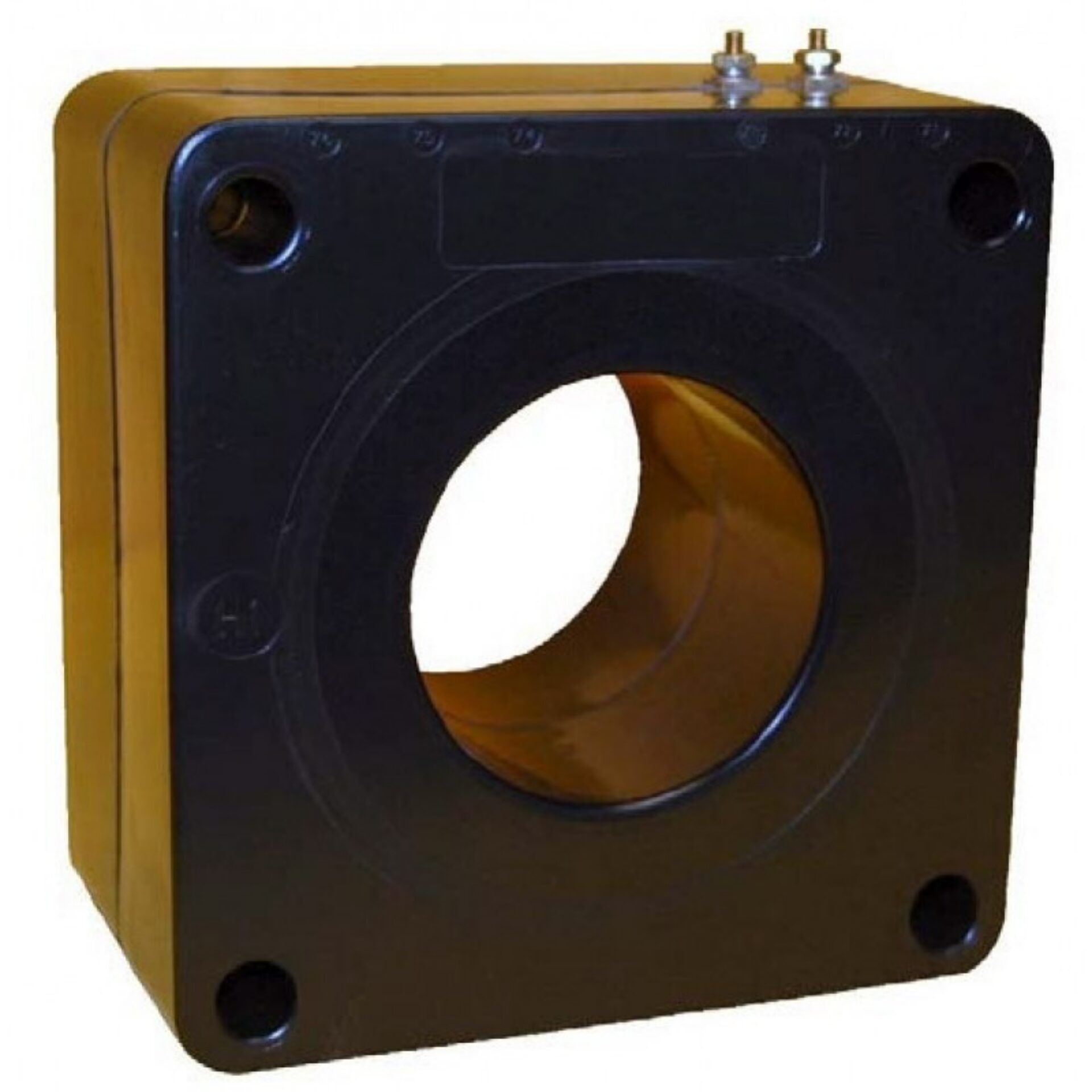

Model 114 Current Transformer
Introducing the Model 114 Current Transformer, a high-quality measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for accurate electrical current measurement in a variety of industrial and commercial applications. Whether you are conducting routine maintenance, system diagnostics, or detailed electrical analysis, the Model 114 offers the performance and durability required to get precise readings in demanding environments.
Overview
Introducing the Model 114 Current Transformer, a high-quality measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for accurate electrical current measurement in a variety of industrial and commercial applications. Whether you are conducting routine maintenance, system diagnostics, or detailed electrical analysis, the Model 114 offers the performance and durability required to get precise readings in demanding environments.
a globally recognized leader in electrical and electronic equipment, this current transformer benefits from decades of engineering expertise and innovation. Its robust construction ensures long-lasting performance, while its accurate measurement capabilities make it an invaluable component for engineers, technicians, and maintenance personnel. The Model 114 is engineered to meet stringent industry standards, providing confidence in its readings and ensuring safe operation within your electrical systems.
Distributed by Spectrum Industries, this product is readily available for purchase and designed to integrate seamlessly into existing measurement setups. Its user-friendly design and reliable performance make it a preferred choice for professionals seeking dependable current measurement solutions. Whether for new installations or system upgrades, the Model 114 Current Transformer from Spectrum Industries is a trusted, high-performance device that helps you achieve precise electrical measurements with ease and confidence.
Request a Quote for Model 114 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 22 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 3.25"
- Insulation Voltage Rating
- 600 V
- Terminal Type
- Brass stud No. 8-32 with one flat washer, lockwasher, and regular nut
- Mounting Bracket Kit
- 0221B01525 (ordered separately)
- Regulatory Approval
- Industry Canada Approval No. T-190
- Options
- Multi-ratios and excitation data available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 50 | 5 | 50:5 | C10 | — | 2 | 2 |
| 75 | 5 | 75:5 | C10 | 1.2B0.1 | 2 | 2 |
| 100 | 5 | 100:5 | C10 | 1.2B0.2 | 2 | 2 |
| 150 | 5 | 150:5 | C20 | 0.6B0.2 | 2 | 2 |
| 200 | 5 | 200:5 | C20 | 0.3B0.2 | 2 | 2 |
| 250 | 5 | 250:5 | C50 | 0.3B0.2 | 2 | 2 |
| 300 | 5 | 300:5 | C50 | 0.3B0.2 | 2 | 2 |
| 400 | 5 | 400:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 500 | 5 | 500:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 600 | 5 | 600:5 | C100 | 0.3B1.8 | 1.5 | 1.33 |
| 750 | 5 | 750:5 | C100 | 0.3B1.8 | 1.5 | 1 |
| 800 | 5 | 800:5 | C200 | 0.3B1.8 | 1.5 | 1 |
