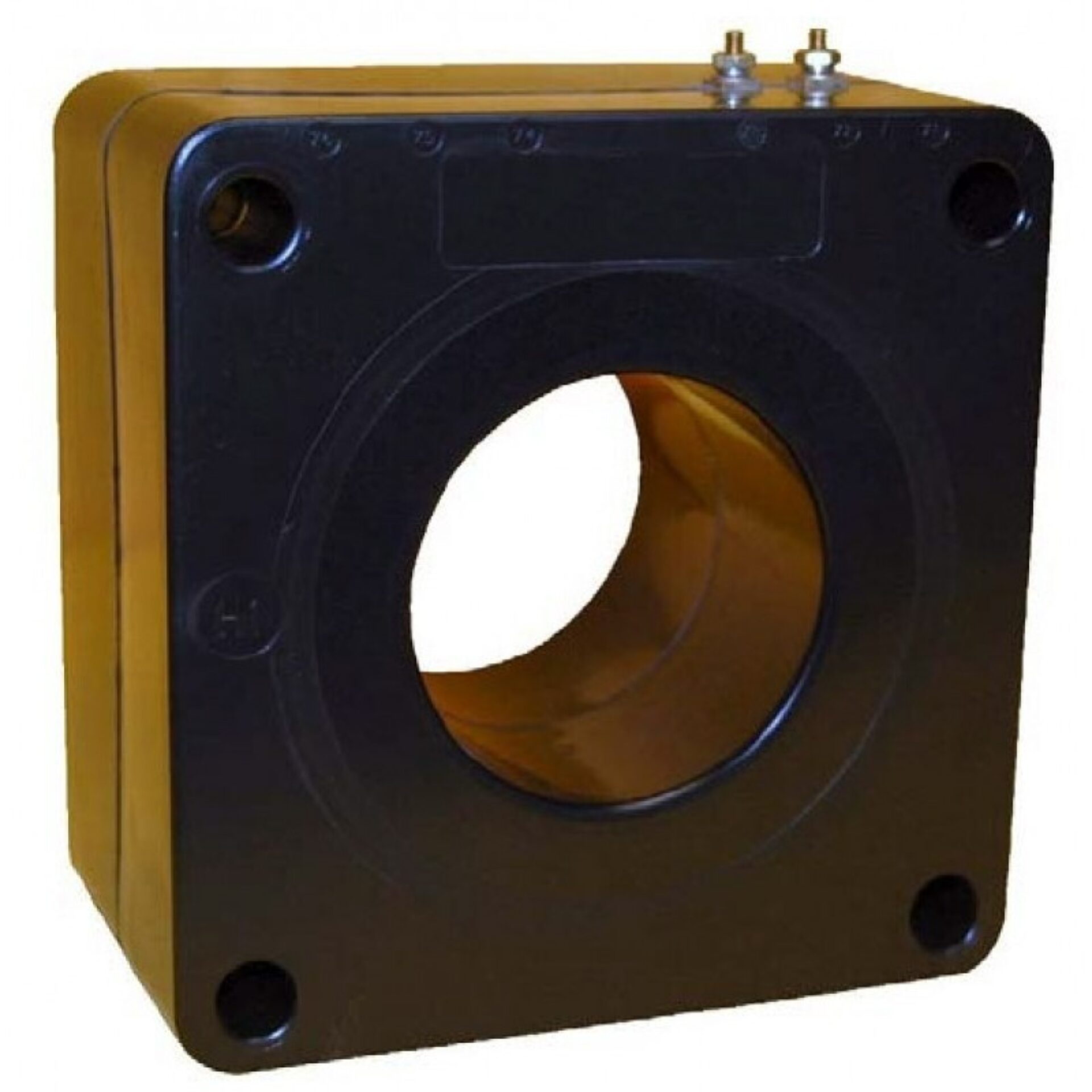

Model 115 Current Transformer
Introducing the Model 115 Current Transformer, a high-quality measuring instrument and brought to you by Spectrum Industries. Designed to deliver precise and reliable current measurements, this transformer is an essential tool for electrical professionals and engineers who require accurate data for system analysis, maintenance, and troubleshooting. Built with durability and performance in mind, the Model 115 is suitable for a wide range of industrial and commercial applications, ensuring dependable operation even in demanding environments.
Overview
Introducing the Model 115 Current Transformer, a high-quality measuring instrument and brought to you by Spectrum Industries. Designed to deliver precise and reliable current measurements, this transformer is an essential tool for electrical professionals and engineers who require accurate data for system analysis, maintenance, and troubleshooting. Built with durability and performance in mind, the Model 115 is suitable for a wide range of industrial and commercial applications, ensuring dependable operation even in demanding environments.
a global leader in electrical and electronic solutions, the Model 115 Current Transformer benefits from advanced engineering and rigorous quality standards. Spectrum Industries takes pride in offering this top-tier product, which combines ’s technological expertise with their commitment to customer satisfaction. Whether used in power distribution, control systems, or instrumentation, this current transformer provides precise current conversion, enabling users to monitor electrical systems effectively and ensure safety and efficiency.
With its robust construction and accurate measurement capabilities, the Model 115 is designed to meet the rigorous demands of modern electrical systems. Its ease of installation and compatibility with various measurement devices make it a versatile choice for professionals seeking reliable performance. Trust the Model 115 Current Transformer by, available through Spectrum Industries, to deliver the accuracy and durability your projects require.
Request a Quote for Model 115 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 19 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 4.00"
- Terminals
- Brass studs No. 8-32 with one flat washer, lockwasher and regular nut
- Mounting Bracket Kit (optional)
- 0221B01525
- Ratio/Excitation Options
- Multi-ratios and excitation data available upon request
- Approval
- Industry Canada Approval No. T-192
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 50 | 5 | 50:5 | — | — | 2 | 2 |
| 75 | 5 | 75:5 | — | 1.2B0.1 | 2 | 2 |
| 100 | 5 | 100:5 | C10 | 1.2B0.2 | 2 | 2 |
| 150 | 5 | 150:5 | C10 | 0.6B0.2 | 2 | 2 |
| 200 | 5 | 200:5 | C20 | 0.3B0.1 | 2 | 2 |
| 250 | 5 | 250:5 | C20 | 0.3B0.2 | 2 | 2 |
| 300 | 5 | 300:5 | C20 | 0.3B0.5 | 2 | 2 |
| 400 | 5 | 400:5 | C50 | 0.3B0.9 | 2 | 2 |
| 500 | 5 | 500:5 | C50 | 0.3B1.8 | 2 | 1.5 |
| 600 | 5 | 600:5 | C50 | 0.3B1.8 | 2 | 1.5 |
| 750 | 5 | 750:5 | C100 | 0.3B1.8 | 1.5 | 1.33 |
| 800 | 5 | 800:5 | C100 | 0.3B1.8 | 1.5 | 1 |
| 1000 | 5 | 1000:5 | C100 | 0.3B1.8 | 1.5 | 1 |
| 1200 | 5 | 1200:5 | C100 | 0.3B1.8 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | C100 | 0.3B1.8 | 1 | 0.8 |
| 1600 | 5 | 1600:5 | C100 | 0.3B1.8 | 1 | 0.8 |
| 2000 | 5 | 2000:5 | C200 | 0.3B1.8 | 1 | 0.8 |
| 2500 | 5 | 2500:5 | C100 | 0.3B1.8 | 1 | 0.8 |
| 3000 | 5 | 3000:5 | C200 | 0.3B1.8 | 0.8 | 0.6 |
| 3200 | 5 | 3200:5 | C200 | 0.3B1.8 | 0.8 | 0.6 |
