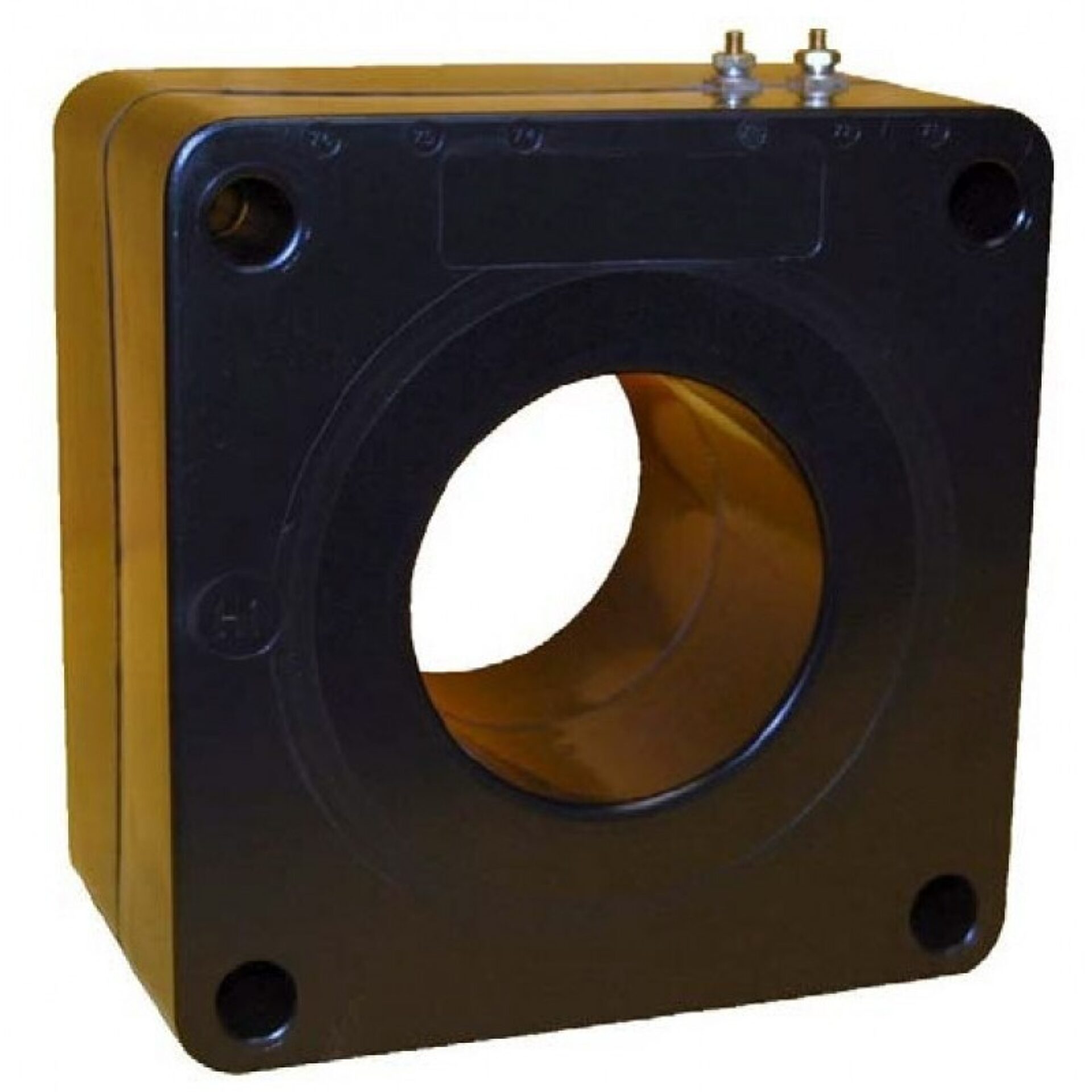

Model 117 Current Transformer
Introducing the Model 117 Current Transformer, a reliable and precise solution for electrical measurement and monitoring, proudly and distributed by Spectrum Industries. Designed to meet the demanding needs of industrial, commercial, and utility applications, this current transformer offers exceptional accuracy and durability, ensuring consistent performance in various environments.
Overview
Introducing the Model 117 Current Transformer, a reliable and precise solution for electrical measurement and monitoring, proudly and distributed by Spectrum Industries. Designed to meet the demanding needs of industrial, commercial, and utility applications, this current transformer offers exceptional accuracy and durability, ensuring consistent performance in various environments.
The Model 117 is engineered to accurately convert high current loads into manageable, low-level signals suitable for measurement and control systems. Its robust construction and high-quality materials guarantee long-term stability and reliable operation, even under challenging conditions. Whether used for power monitoring, protection relays, or metering applications, this current transformer provides the precision necessary for effective system management.
a global leader in electrical and electronic manufacturing, the Model 117 embodies advanced engineering and innovation. Spectrum Industries ensures that this product maintains the highest standards of quality and reliability, making it a trusted choice for professionals seeking dependable electrical measurement solutions. With its straightforward installation and compatibility with various systems, the Model 117 Current Transformer is an excellent addition to any electrical infrastructure requiring accurate current measurement.
In summary, the Model 117 Current Transformer by, available through Spectrum Industries, combines precision, durability, and ease of use, making it an ideal choice for those who demand excellence in electrical measurement and system protection.
Request a Quote for Model 117 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 13 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 4.62 in
- Insulation Level
- 600 V, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flat washer, lockwasher and regular nut
- Mounting Bracket Kit
- 0221B01525, ordered separately
- Options
- Multi-ratios and excitation data available upon request
- Industry Canada Approval
- T-193
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 50 | 5 | 50:5 | — | — | 2 | 2 |
| 75 | 5 | 75:5 | — | — | 2 | 2 |
| 100 | 5 | 100:5 | — | 1.2B0.1 | 2 | 2 |
| 150 | 5 | 150:5 | C10 | 0.6B0.2 | 2 | 2 |
| 200 | 5 | 200:5 | C10 | 0.6B0.2 | 2 | 2 |
| 250 | 5 | 250:5 | C20 | 0.6B0.5 | 2 | 2 |
| 300 | 5 | 300:5 | C20 | 0.3B0.2 | 2 | 2 |
| 400 | 5 | 400:5 | C20 | 0.3B0.5 | 2 | 2 |
| 500 | 5 | 500:5 | C20 | 0.3B0.9 | 2 | 1.5 |
| 600 | 5 | 600:5 | C20 | 0.3B0.9 | 2 | 1.5 |
| 750 | 5 | 750:5 | C50 | 0.3B1.8 | 1.5 | 1.33 |
| 800 | 5 | 800:5 | C50 | 0.3B1.8 | 1.5 | 1.33 |
| 1000 | 5 | 1000:5 | C50 | 0.3B1.8 | 1.5 | 1 |
| 1200 | 5 | 1200:5 | C100 | 0.3B1.8 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | C50 | 0.3B1.8 | 1.33 | 1 |
| 1600 | 5 | 1600:5 | C50 | 0.3B1.8 | 1 | 0.8 |
| 2000 | 5 | 2000:5 | C100 | 0.3B1.8 | 1 | 0.6 |
| 2500 | 5 | 2500:5 | C100 | 0.3B1.8 | 1 | 0.6 |
| 3000 | 5 | 3000:5 | — | 0.3B1.8 | 1 | 0.6 |
| 3200 | 5 | 3200:5 | — | 0.3B1.8 | 1 | 0.6 |
| 4000 | 5 | 4000:5 | — | 0.3B1.8 | 0.8 | 0.6 |
