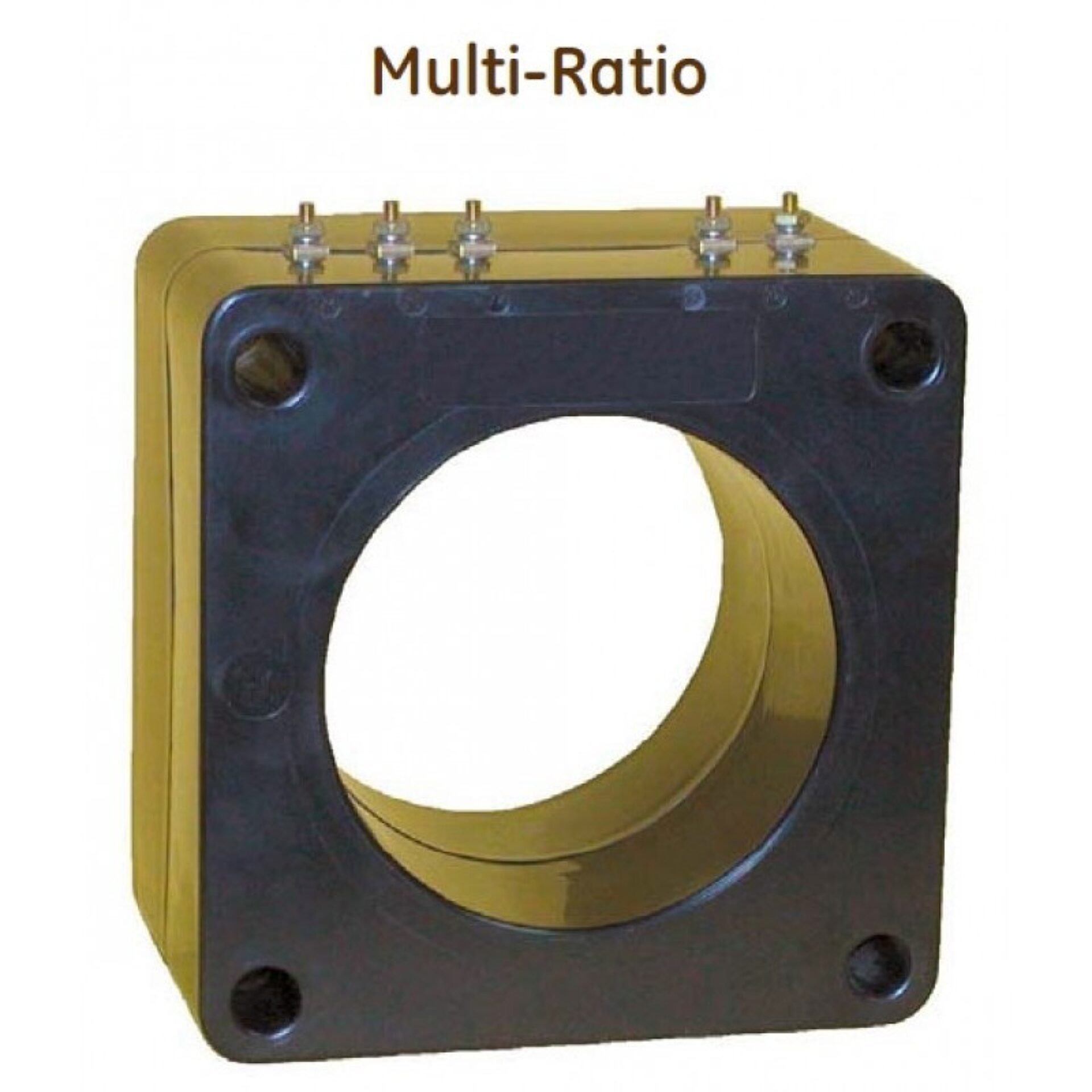

Model 117MR Current Transformer
Introducing the Model 117MR Current Transformer, a high-quality device, brought to you by Spectrum Industries. Designed to deliver precise current measurement and reliable performance, this transformer is an essential component for electrical systems that demand accuracy and durability. Whether used in industrial, commercial, or utility applications, the Model 117MR offers a robust solution for monitoring and managing electrical currents effectively.
Overview
Introducing the Model 117MR Current Transformer, a high-quality device, brought to you by Spectrum Industries. Designed to deliver precise current measurement and reliable performance, this transformer is an essential component for electrical systems that demand accuracy and durability. Whether used in industrial, commercial, or utility applications, the Model 117MR offers a robust solution for monitoring and managing electrical currents effectively.
a global leader in electrical and electronic equipment, the Model 117MR Current Transformer benefits from advanced engineering and rigorous quality standards. Its construction ensures excellent accuracy across a wide range of currents, making it ideal for metering, protection, and control purposes. The transformer’s compact design allows for easy installation in various environments, while its durable build ensures long-lasting performance even under demanding conditions.
Spectrum Industries takes pride in providing top-tier electrical components that meet the highest standards of quality and reliability. The Model 117MR embodies this commitment, offering a dependable solution for professionals seeking precise current measurement. Whether you're upgrading existing systems or designing new installations, this current transformer and Spectrum Industries is a trusted choice for ensuring optimal electrical system performance.
Request a Quote for Model 117MR Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 13 lbs
- Application
- Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage Class
- 600 V
- Window Diameter
- 4.62 in
- Terminals
- Brass studs No. 10-32
- Winding Configuration
- Multi-ratio, fully-distributed taps
- Mounting Bracket Kit
- 0221B01525
- Excitation Data
- Available upon request
Specification Table
| Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|
| C20 | 2 | 1.5 |
| C100 | 1.33 | 1 |
| C100 | 1 | 0.6 |
