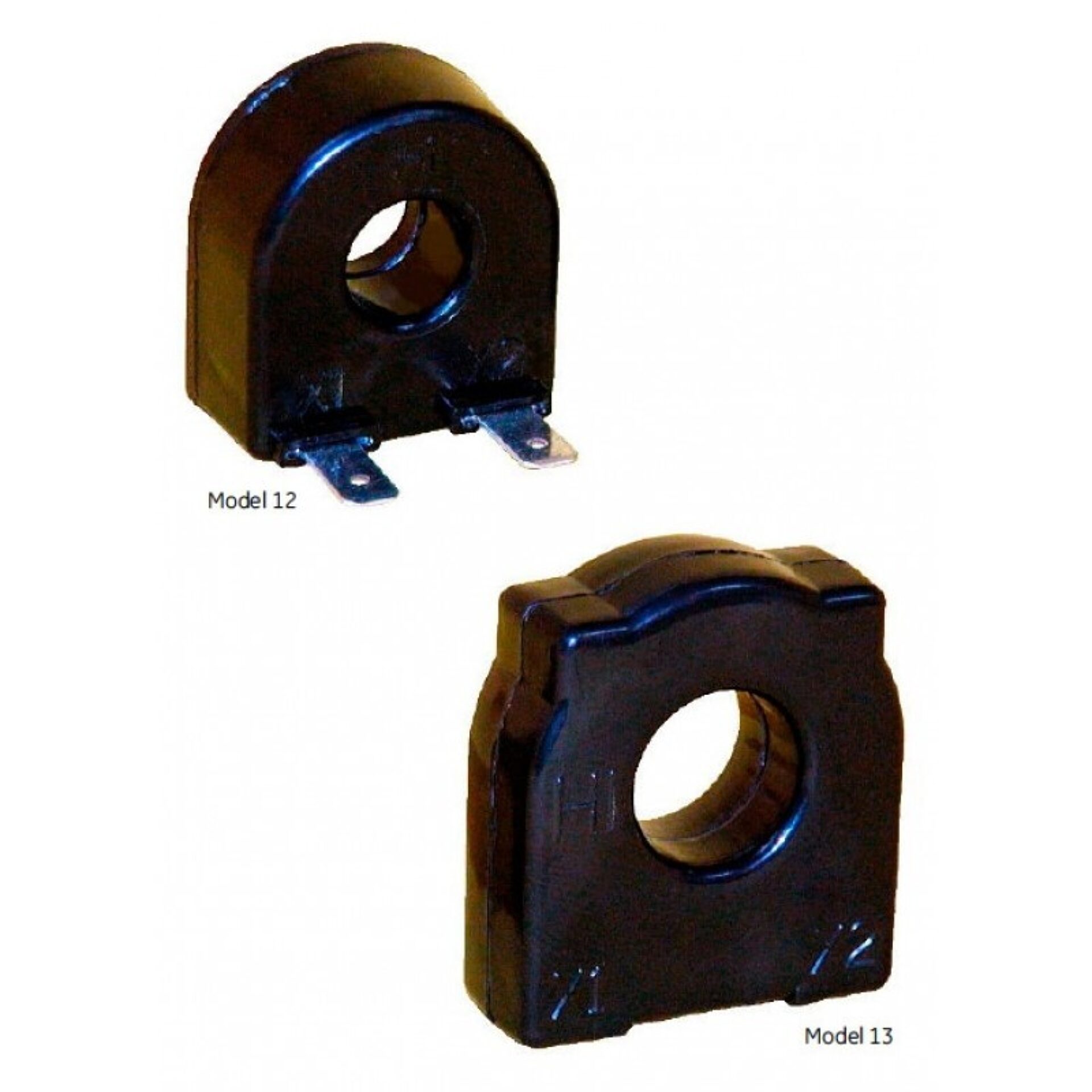

Model 12 Current Transformer
APPLICATION: For current to voltage conversion by use of a loading resistor.
These two lightweight, miniature current transformer are suitable for direct mounting on printed circuit boards. Model 13 is provided with standard hexagon nuts, to secure the transformer to a printed circuit board so that the assembly can withstand vibration and shock.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
CONTINUOUS THERMAL CURRENT RATING FACTOR:
100A @ 30oC amb., 80A at 55oC amb.
Approximate weight 0.1 - 0.2 lbs.
Window Diameter 0.37" & 0.56"
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
