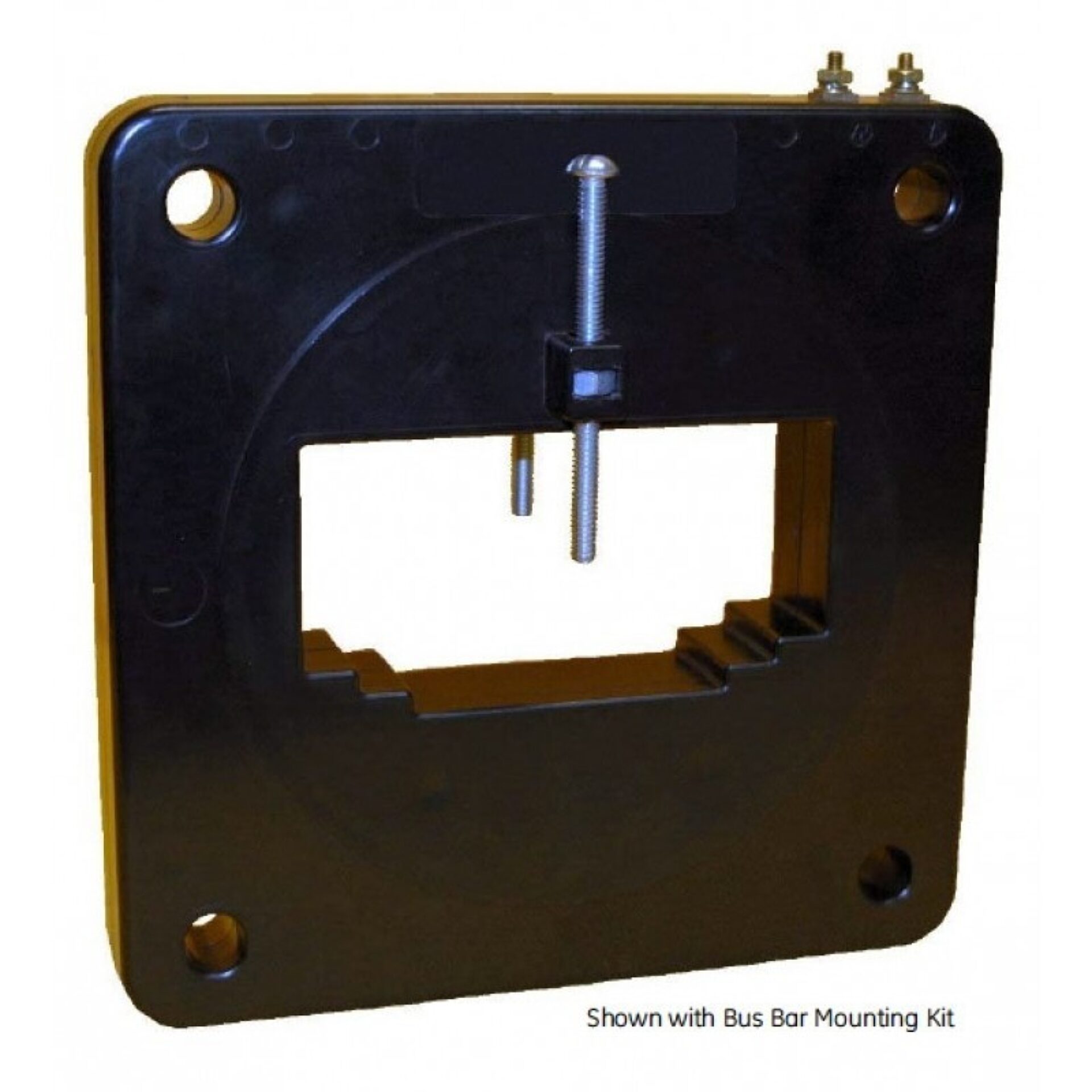

Model 125 Current Transformer
Introducing the Model 125 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurately monitoring electrical systems. Whether used in industrial, commercial, or utility applications, the Model 125 provides dependable current measurement, helping engineers and technicians ensure the safe and efficient operation of their electrical infrastructure.
Overview
Introducing the Model 125 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurately monitoring electrical systems. Whether used in industrial, commercial, or utility applications, the Model 125 provides dependable current measurement, helping engineers and technicians ensure the safe and efficient operation of their electrical infrastructure.
a global leader in electrical and electronic solutions, this current transformer features robust construction and advanced design to deliver consistent performance over time. Its compact size and ease of installation make it suitable for a wide range of applications, while its accuracy and durability ensure precise readings even in demanding environments. The Model 125 is engineered to meet stringent industry standards, providing peace of mind for users who depend on accurate data for system monitoring and analysis.
Spectrum Industries, a trusted distributor of electrical components and measurement instruments, offers the Model 125 Current Transformer to meet the needs of professionals seeking reliable and high-quality measurement solutions. With its proven performance and ’s reputation for excellence, this product stands out as a dependable choice for current measurement tasks across various sectors. Invest in the Model 125 to enhance your electrical system’s monitoring capabilities and ensure optimal operation.
Request a Quote for Model 125 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 3 lbs
- Application
- Metering
- Standards
- ANSI/IEEE C57.13, IEC 44-1
- Insulation Rating
- 600 V
- Window Diameter
- 6.31 in
- Terminals
- Brass studs No. 8-32
- Mounting Bracket Kit
- 0221B00231
- Bus Bar Mounting Kit
- 0221A26076
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 600 | 5 | 600:5 | 0.3B0.1 | 1.5 | 1.33 | 0.071 |
| 750 | 5 | 750:5 | 0.3B0.1 | 1.5 | 1.33 | 0.143 |
| 800 | 5 | 800:5 | 0.3B0.1 | 1.5 | 1.33 | 0.116 |
| 1000 | 5 | 1000:5 | 0.3B0.1 | 1.5 | 1.33 | 0.187 |
| 1200 | 5 | 1200:5 | 0.3B0.1 | 1.5 | 1.33 | 0.224 |
| 1500 | 5 | 1500:5 | 0.3B0.1 | 1.5 | 1.33 | 0.285 |
| 1600 | 5 | 1600:5 | 0.3B0.1 | 1.5 | 1.33 | 0.304 |
| 2000 | 5 | 2000:5 | 0.3B0.1 | 1.5 | 1 | 0.28 |
| 2500 | 5 | 2500:5 | 0.3B0.1 | 1.33 | 1 | 0.351 |
| 3000 | 5 | 3000:5 | 0.3B0.1 | 1.33 | 1 | 0.421 |
| 3500 | 5 | 3500:5 | 0.3B0.1 | 1.33 | 1 | 0.491 |
| 4000 | 5 | 4000:5 | 0.3B0.1 | 1 | 0.8 | 0.696 |
