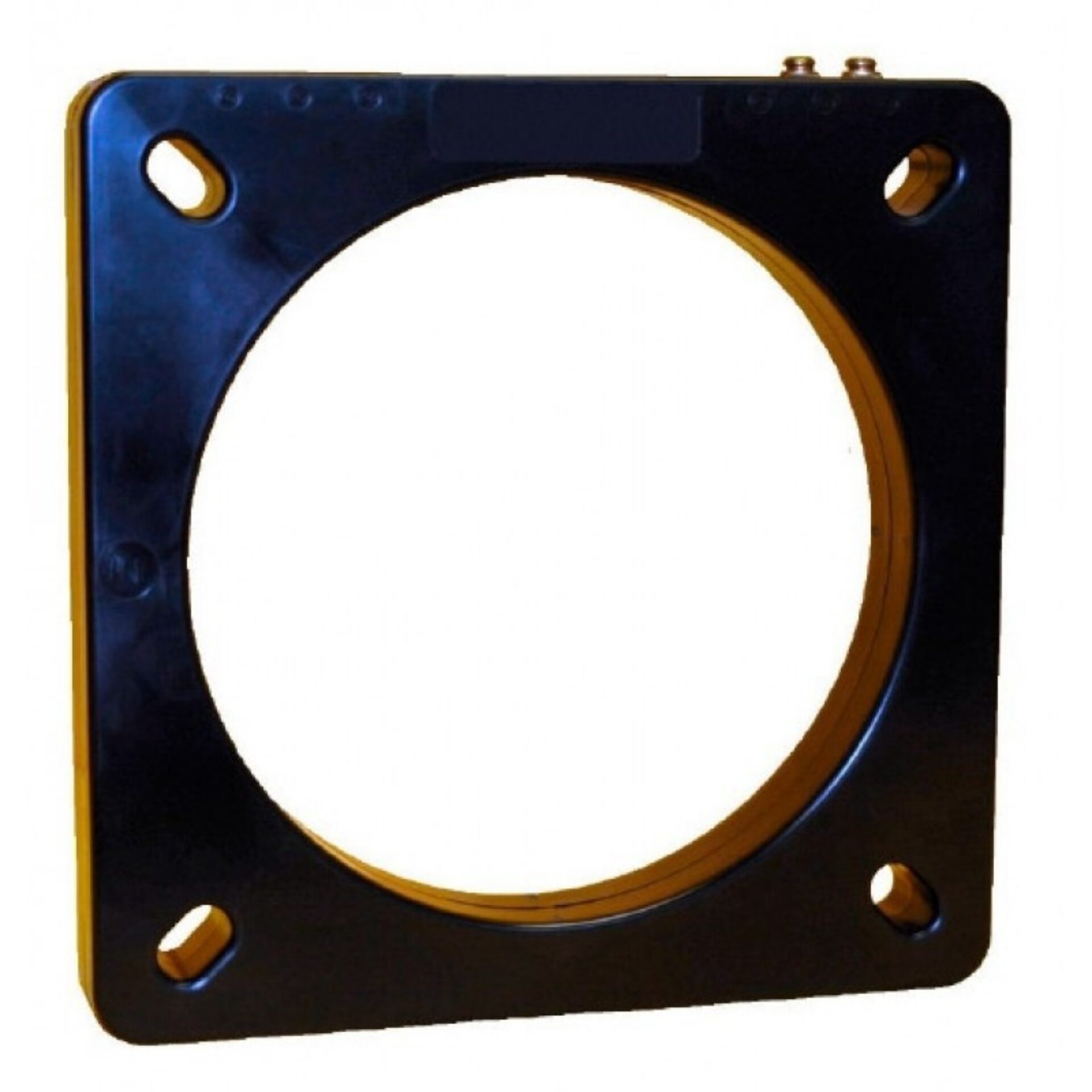

Model 126 Current Transformer
Introducing the Model 126 Current Transformer, a high-quality electrical measuring device, offered by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate current measurement in various electrical applications. Whether used in industrial settings, power distribution, or testing environments, the Model 126 ensures consistent performance and dependable readings.
Overview
Introducing the Model 126 Current Transformer, a high-quality electrical measuring device, offered by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate current measurement in various electrical applications. Whether used in industrial settings, power distribution, or testing environments, the Model 126 ensures consistent performance and dependable readings.
a globally recognized leader in electrical equipment and technology, this current transformer benefits from advanced engineering and rigorous quality standards. It is engineered to provide accurate current transformation with minimal losses, making it an ideal choice for professionals seeking precise data for system monitoring, protection, and control. The robust construction and thoughtful design of the Model 126 also contribute to its durability and long service life, even in demanding environments.
Spectrum Industries offers the Model 126 Current Transformer as part of their commitment to providing top-tier electrical instrumentation. This product is suitable for a wide range of applications, from routine measurements to complex electrical analysis. With its reliable performance and the backing of ’s trusted reputation, the Model 126 is a valuable addition to any electrical system that requires accurate current measurement and monitoring.
Request a Quote for Model 126 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 5.5 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Level
- 600 Volts
- Window Diameter
- 8.25 in
- Terminals
- Brass screws No. 10-32
- Mounting Bracket Kit
- 0221B01529
- Multi-Ratio Option
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 400 | 5 | 400:5 | — | 2 | 2 | 0.116 |
| 500 | 5 | 500:5 | — | 2 | 2 | 0.145 |
| 600 | 5 | 600:5 | — | 2 | 2 | 0.173 |
| 750 | 5 | 750:5 | 1.2B1.8 | 2 | 1.5 | 0.217 |
| 800 | 5 | 800:5 | 1.2B1.8 | 2 | 1.5 | 0.231 |
| 1000 | 5 | 1000:5 | 1.2B1.8 | 2 | 1.5 | 0.289 |
| 1200 | 5 | 1200:5 | 0.6B1.8 | 1.5 | 1.33 | 0.347 |
| 1500 | 5 | 1500:5 | 0.6B1.8 | 1.5 | 1 | 0.434 |
| 1600 | 5 | 1600:5 | 0.6B1.8 | 1.5 | 1 | 0.462 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 1.33 | 1 | 0.578 |
| 2500 | 5 | 2500:5 | 0.3B1.8 | 1 | 0.8 | 0.904 |
| 3000 | 5 | 3000:5 | 0.3B1.8 | 1.33 | 1 | 0.722 |
| 3200 | 5 | 3200:5 | 0.3B1.8 | 1.33 | 1 | 0.77 |
| 3500 | 5 | 3500:5 | 0.3B1.8 | 1 | 0.8 | 0.842 |
| 4000 | 5 | 4000:5 | 0.3B1.8 | 1 | 0.8 | 0.962 |
| 5000 | 5 | 5000:5 | 0.3B1.8 | 1 | 0.8 | 1.203 |
