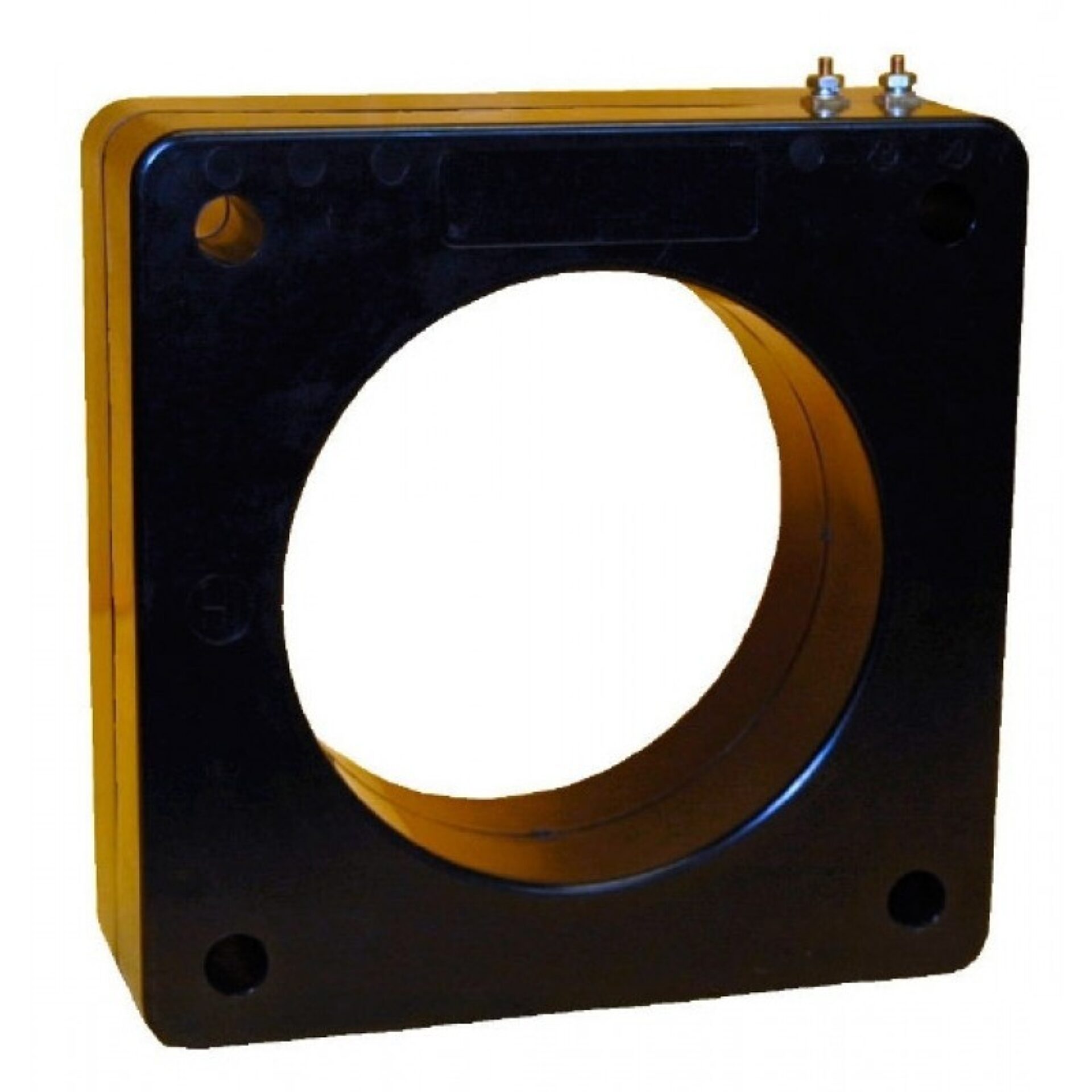

Model 130 Current Transformer
Introducing the Model 130 Current Transformer, a high-quality measurement device in collaboration with Spectrum Industries. Designed to provide precise current measurement and monitoring, this transformer is an essential component for electrical testing, power distribution, and industrial applications. Built with durability and accuracy in mind, the Model 130 ensures reliable performance even in demanding environments, making it a trusted choice for engineers and technicians alike.
Overview
Introducing the Model 130 Current Transformer, a high-quality measurement device in collaboration with Spectrum Industries. Designed to provide precise current measurement and monitoring, this transformer is an essential component for electrical testing, power distribution, and industrial applications. Built with durability and accuracy in mind, the Model 130 ensures reliable performance even in demanding environments, making it a trusted choice for engineers and technicians alike.
a global leader in electrical and electronic equipment, this current transformer benefits from advanced engineering and rigorous quality standards. Spectrum Industries, known for its expertise in electrical instrumentation, has partnered with to develop a product that combines innovative design with dependable functionality. The Model 130 is engineered to deliver accurate readings across a wide range of current levels, enabling users to effectively monitor electrical systems and ensure safety and efficiency.
Whether used in laboratory settings, field installations, or maintenance operations, the Model 130 Current Transformer offers ease of use and consistent performance. Its robust construction and precise calibration make it an invaluable tool for professionals seeking reliable current measurement solutions. With the backing of ’s reputation for quality and Spectrum Industries’ dedication to excellence, this product stands out as a top-tier choice for current measurement needs.
Request a Quote for Model 130 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 18 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Level
- 600 V, 10 kV BIL full wave
- Window Diameter
- 5.75 in
- Terminals
- Brass studs No. 8-32 with flatwasher, lockwasher and regular nut
- Mounting Bracket
- Kit 0221B00186 (ordered separately)
- Multi-Ratio Availability
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|---|
| 200 | 5 | 200:5 | C10 | 0.6B0.2 | 2 | 2 | 0.064 |
| 300 | 5 | 300:5 | C20 | 0.3B0.2 | 2 | 2 | 0.105 |
| 400 | 5 | 400:5 | C20 | 0.3B0.2 | 2 | 2 | 0.14 |
| 500 | 5 | 500:5 | C20 | 0.3B0.5 | 2 | 2 | 0.175 |
| 600 | 5 | 600:5 | C20 | 0.3B0.5 | 2 | 1.5 | 0.21 |
| 800 | 5 | 800:5 | C50 | 0.3B0.9 | 2 | 1.5 | 0.324 |
| 1000 | 5 | 1000:5 | C50 | 0.3B1.8 | 1.5 | 1.33 | 0.404 |
| 1200 | 5 | 1200:5 | C100 | 0.3B1.8 | 1.5 | 1 | 0.485 |
| 1500 | 5 | 1500:5 | C100 | 0.3B1.8 | 1.5 | 1 | 0.607 |
| 1600 | 5 | 1600:5 | C100 | 0.3B1.8 | 1.33 | 1 | 0.647 |
| 2000 | 5 | 2000:5 | C100 | 0.3B1.8 | 1.33 | 1 | 0.783 |
| 2500 | 5 | 2500:5 | C100 | 0.3B1.8 | 1 | 0.8 | 0.979 |
| 3000 | 5 | 3000:5 | C100 | 0.3B1.8 | 1 | 0.8 | 1.175 |
| 4000 | 5 | 4000:5 | C100 | 0.3B1.8 | 1 | 0.6 | 1.484 |
