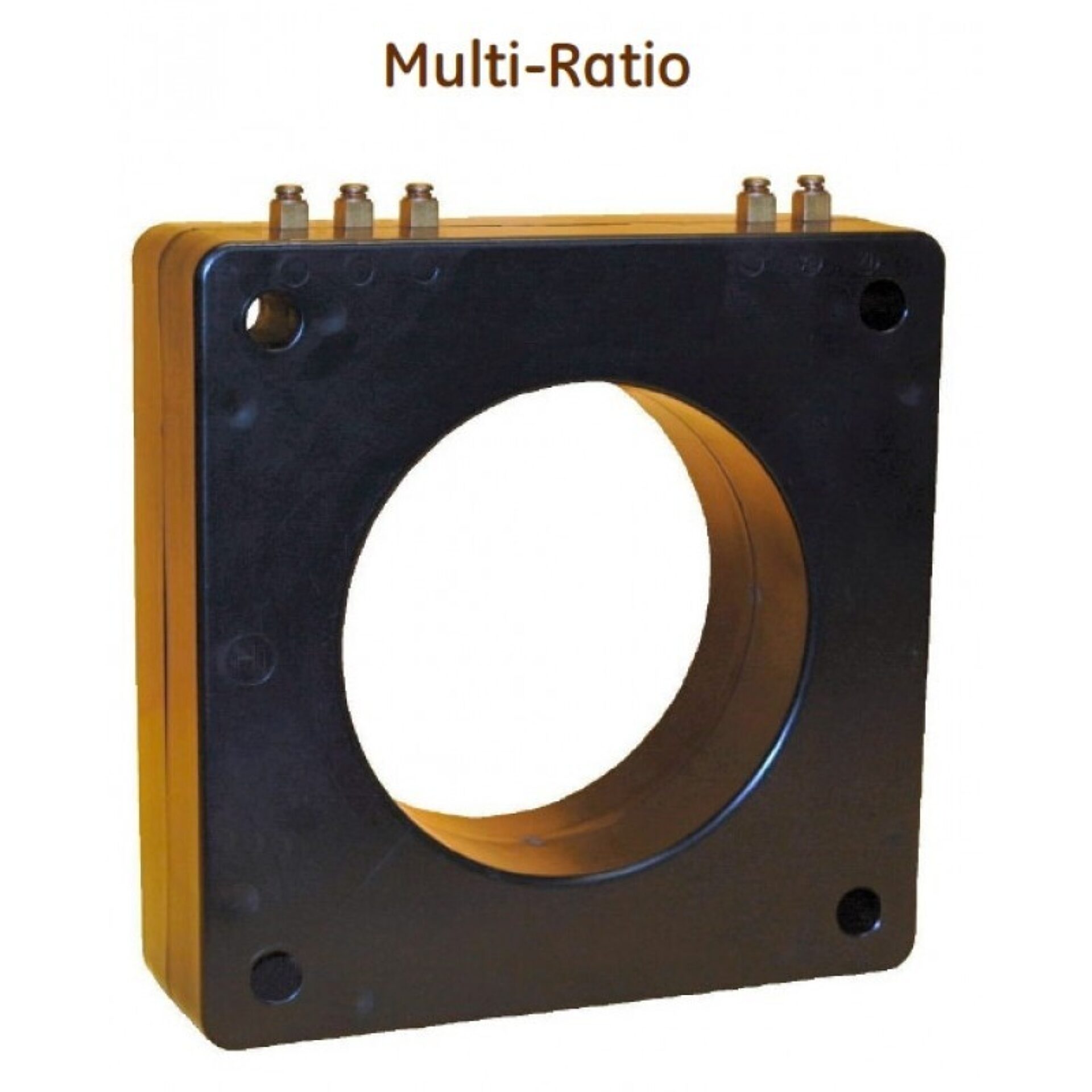

Model 135MR Current Transformer
Introducing the Model 135MR Current Transformer, a high-quality measurement solution, distributed by Spectrum Industries. Designed for precision and reliability, this current transformer is an essential component for electrical measurement and monitoring applications. Whether you're conducting detailed system analysis or ensuring the safety and efficiency of electrical installations, the Model 135MR offers accurate current transformation to meet your needs.
Overview
Introducing the Model 135MR Current Transformer, a high-quality measurement solution, distributed by Spectrum Industries. Designed for precision and reliability, this current transformer is an essential component for electrical measurement and monitoring applications. Whether you're conducting detailed system analysis or ensuring the safety and efficiency of electrical installations, the Model 135MR offers accurate current transformation to meet your needs.
a global leader in electrical equipment and technology, this current transformer combines advanced engineering with durable construction. Its robust design ensures consistent performance in demanding environments, making it suitable for a wide range of industrial, commercial, and utility applications. The Model 135MR is engineered to deliver precise readings, facilitating effective system management and troubleshooting.
Spectrum Industries is proud to distribute this exceptional product, providing customers with a dependable solution for their electrical measurement requirements. The Model 135MR Current Transformer is easy to install and maintain, making it a practical choice for professionals seeking accuracy and longevity. With ’s reputation for quality and Spectrum Industries’ commitment to customer satisfaction, this product stands out as a trusted tool for engineers, technicians, and system operators alike. Invest in the Model 135MR to ensure your electrical systems operate safely, efficiently, and with confidence.
Request a Quote for Model 135MR Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 18 lbs
- Application
- Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 5.75"
- Insulation Level
- 600 Volt, 10 kV BIL full wave
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Winding Arrangement
- Turns fully distributed between all taps
- Mounting Bracket Kit
- 0221B00186 (ordered separately)
Specification Table
| Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|
| C50 | 2 | 2 |
| C100 | 1.5 | 1.33 |
| C100 | 1 | 0.8 |
| C200 | 1 | 0.8 |
| C200 | 1 | 0.6 |
| C200 | 1 | 0.6 |
