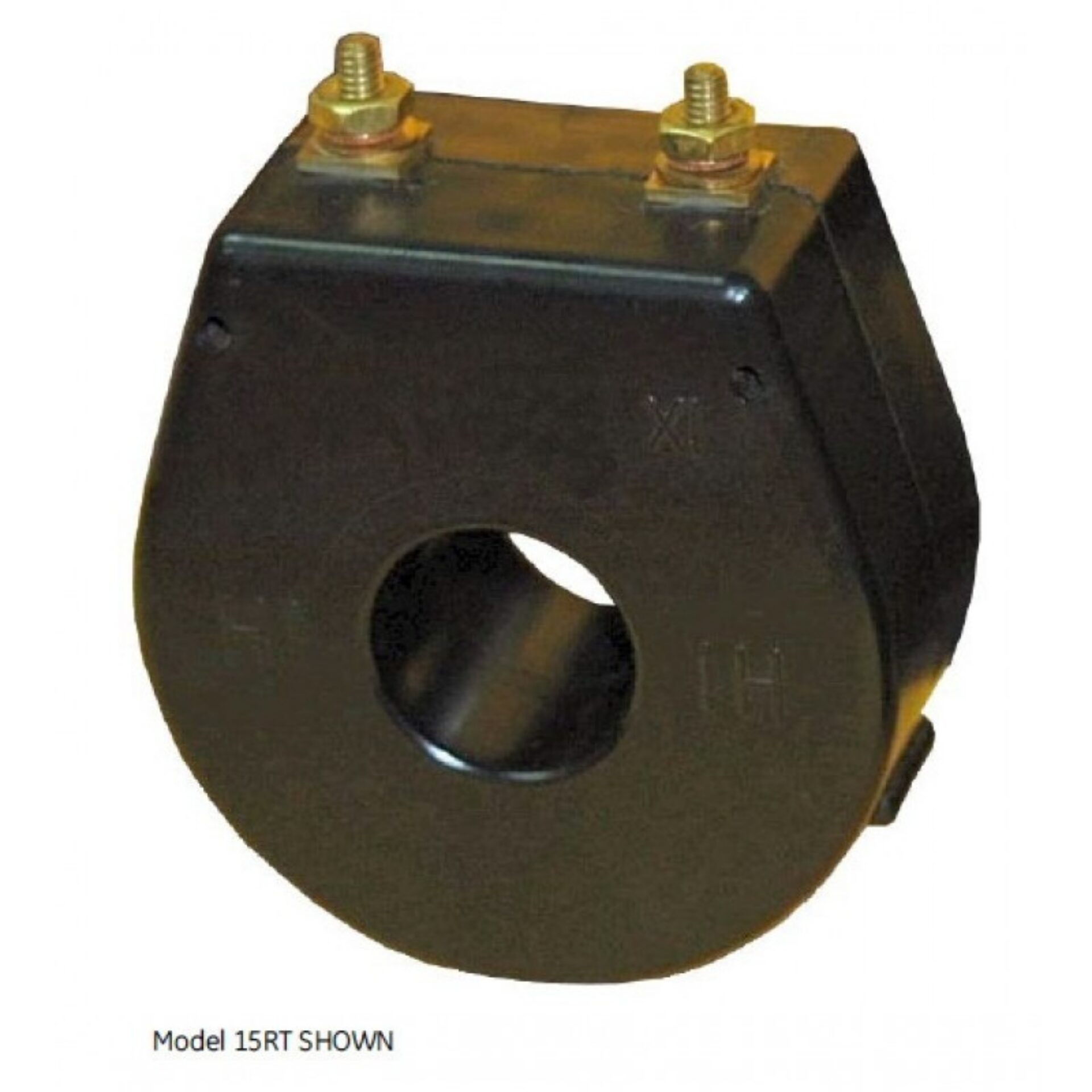

Model 14 Current Transformer
Introducing the Model 14 Current Transformer, a reliable and high-performance solution, distributed by Spectrum Industries. Designed to meet the demanding needs of electrical measurement and protection systems, this current transformer offers exceptional accuracy and durability, making it an essential component for a wide range of industrial and commercial applications.
Overview
Introducing the Model 14 Current Transformer, a reliable and high-performance solution, distributed by Spectrum Industries. Designed to meet the demanding needs of electrical measurement and protection systems, this current transformer offers exceptional accuracy and durability, making it an essential component for a wide range of industrial and commercial applications.
a global leader in electrical equipment and technology, the Model 14 Current Transformer is engineered with precision to ensure consistent performance over its lifespan. Its robust construction and high-quality materials enable it to withstand harsh environments and provide accurate current readings, which are critical for system monitoring, fault detection, and protection. Whether used in power distribution, automation, or instrumentation, this transformer delivers dependable results that help maintain the safety and efficiency of electrical systems.
Spectrum Industries proudly distributes the Model 14 Current Transformer, ensuring that customers receive authentic, top-grade products backed by ’s reputation for excellence. This product’s versatile design makes it suitable for various applications, offering users a reliable means to measure and monitor electrical currents with confidence. With Spectrum Industries’ commitment to quality and customer satisfaction, you can trust that the Model 14 Current Transformer will meet your specific requirements and contribute to the optimal operation of your electrical infrastructure.
Request a Quote for Model 14 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 0.9 lbs
- Application
- Metering, Energy Management
- Window Diameter
- 0.64"
- Insulation Level
- 600 V, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with flatwasher, lockwasher and regular nut
- Flexible Leads
- UL 1015 105°C CSA approved, #16 AWG 24" long
- Case Styles Available
- RBT, RT, RBL, RL, SFT
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 60 | 5 | 60:5 |
| 75 | 5 | 75:5 |
| 80 | 5 | 80:5 |
| 100 | 5 | 100:5 |
