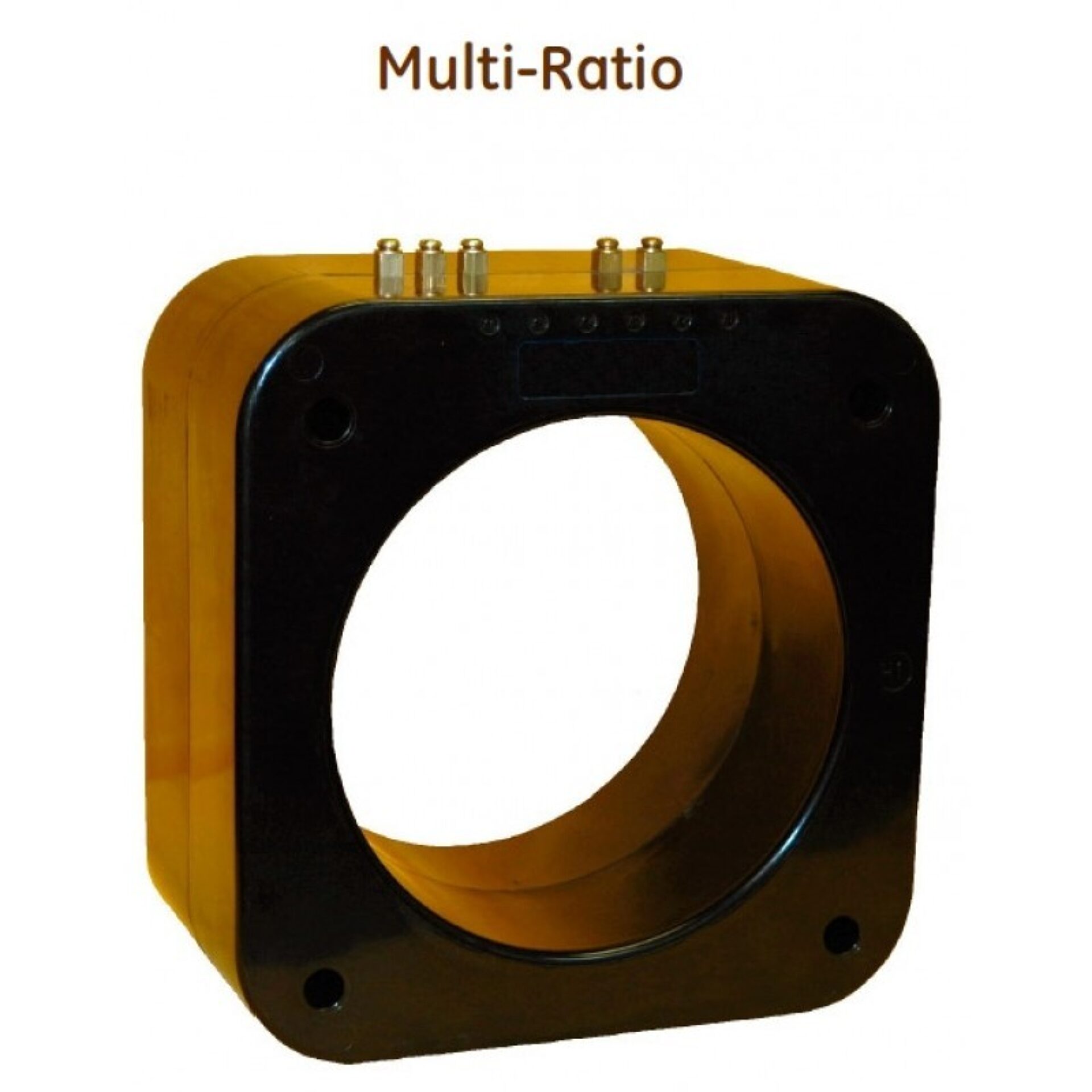

Model 141MR Current Transformer
Introducing the Model 141MR Current Transformer, a reliable and precise solution for a wide range of electrical measurement applications. Manufactured by Spectrum Industries, a trusted name in the industry, this current transformer is designed to deliver accurate current readings essential for both industrial and commercial electrical systems. Whether you are monitoring power distribution, performing maintenance, or conducting detailed electrical analysis, the Model 141MR offers the performance and durability needed to meet demanding operational standards.
Overview
Introducing the Model 141MR Current Transformer, a reliable and precise solution for a wide range of electrical measurement applications. Manufactured by Spectrum Industries, a trusted name in the industry, this current transformer is designed to deliver accurate current readings essential for both industrial and commercial electrical systems. Whether you are monitoring power distribution, performing maintenance, or conducting detailed electrical analysis, the Model 141MR offers the performance and durability needed to meet demanding operational standards.
a global leader in electrical and electronic manufacturing, this current transformer exemplifies quality craftsmanship and innovative design. The Model 141MR is built to provide consistent, high-accuracy measurements, ensuring that your electrical systems operate efficiently and safely. Its robust construction and precise calibration make it suitable for use in various environments, from factory floors to utility substations. Additionally, its compact size and ease of installation allow for seamless integration into existing setups, minimizing downtime and simplifying maintenance procedures.
With the Model 141MR Current Transformer from Spectrum Industries, you gain a dependable tool that enhances your ability to monitor and manage electrical currents effectively. Backed by ’s reputation for excellence and Spectrum Industries’ commitment to quality, this product is a valuable addition to any electrical system requiring precise current measurement.
Request a Quote for Model 141MR Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 45 lbs
- Application
- Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Level
- 600 Volt, 10 kV BIL full wave
- Window Diameter
- 8.13 in
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Winding Construction
- Turns fully distributed between all taps
- Mounting Bracket Kit
- 0221B00775 (order separately)
Specification Table
| Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|
| C100 | 2 | 1.5 |
| C200 | 2 | 1.5 |
| C400 | 1.33 | 1 |
| C400 | 1.5 | 1.33 |
| C400 | 1 | 0.8 |
| C200 | 1 | 0.8 |
