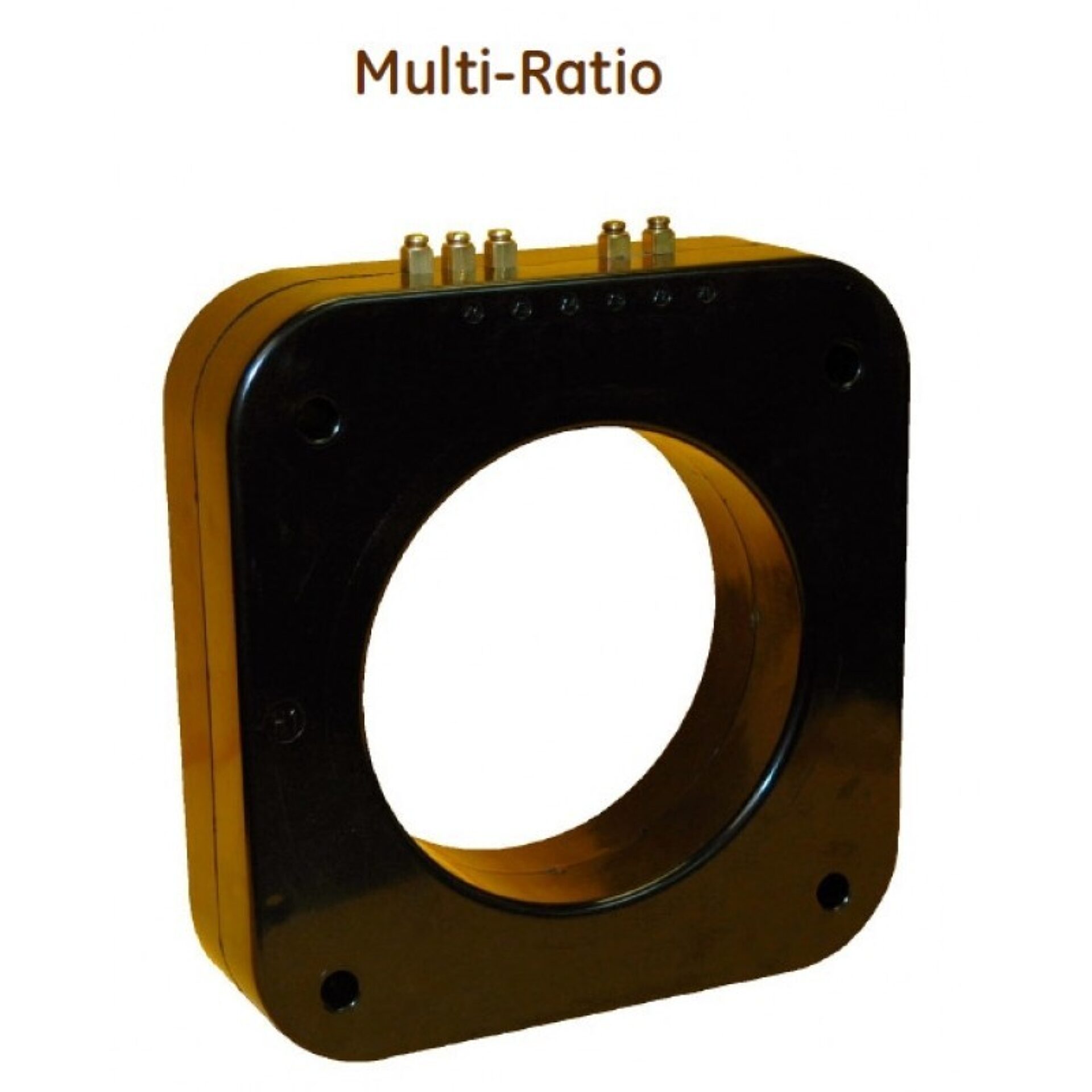

Model 142MR Current Transformer
Introducing the Model 142MR Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer exemplifies precision engineering and durability, making it an essential component for professionals seeking accurate current measurement in various industrial, commercial, and utility settings.
Overview
Introducing the Model 142MR Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer exemplifies precision engineering and durability, making it an essential component for professionals seeking accurate current measurement in various industrial, commercial, and utility settings.
The Model 142MR is engineered to deliver consistent performance across a wide range of operating conditions. Its robust construction ensures long-term reliability, while its design facilitates easy installation and integration into existing systems. Whether used for power monitoring, protective relays, or energy management, this current transformer provides the accuracy and stability required for critical electrical applications. Its compact form factor allows for seamless incorporation into panels and equipment, helping to optimize space without sacrificing performance.
a recognized leader in electrical and electronic manufacturing, the Model 142MR benefits from decades of innovation and quality assurance. Spectrum Industries proudly offers this product to ensure that customers receive the highest standards of reliability and precision. Whether upgrading existing systems or designing new installations, the Model 142MR Current Transformer is a trusted choice for professionals who demand excellence in electrical measurement solutions.
Request a Quote for Model 142MR Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 31 lbs
- Application
- Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 7.25"
- Insulation Class
- 600 Volt, 10 kV BIL full wave
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Winding Configuration
- Turns fully distributed between all taps
- Mounting Bracket
- Order mounting bracket kit 0221B00259 separately
Specification Table
| Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|
| C50 | 2 | 2 |
| C200 | 15 | 1 |
| C200 | 2 | 1.5 |
| C200 | 1 | 0.8 |
| C200 | 1 | 0.8 |
| C200 | 1 | 0.8 |
