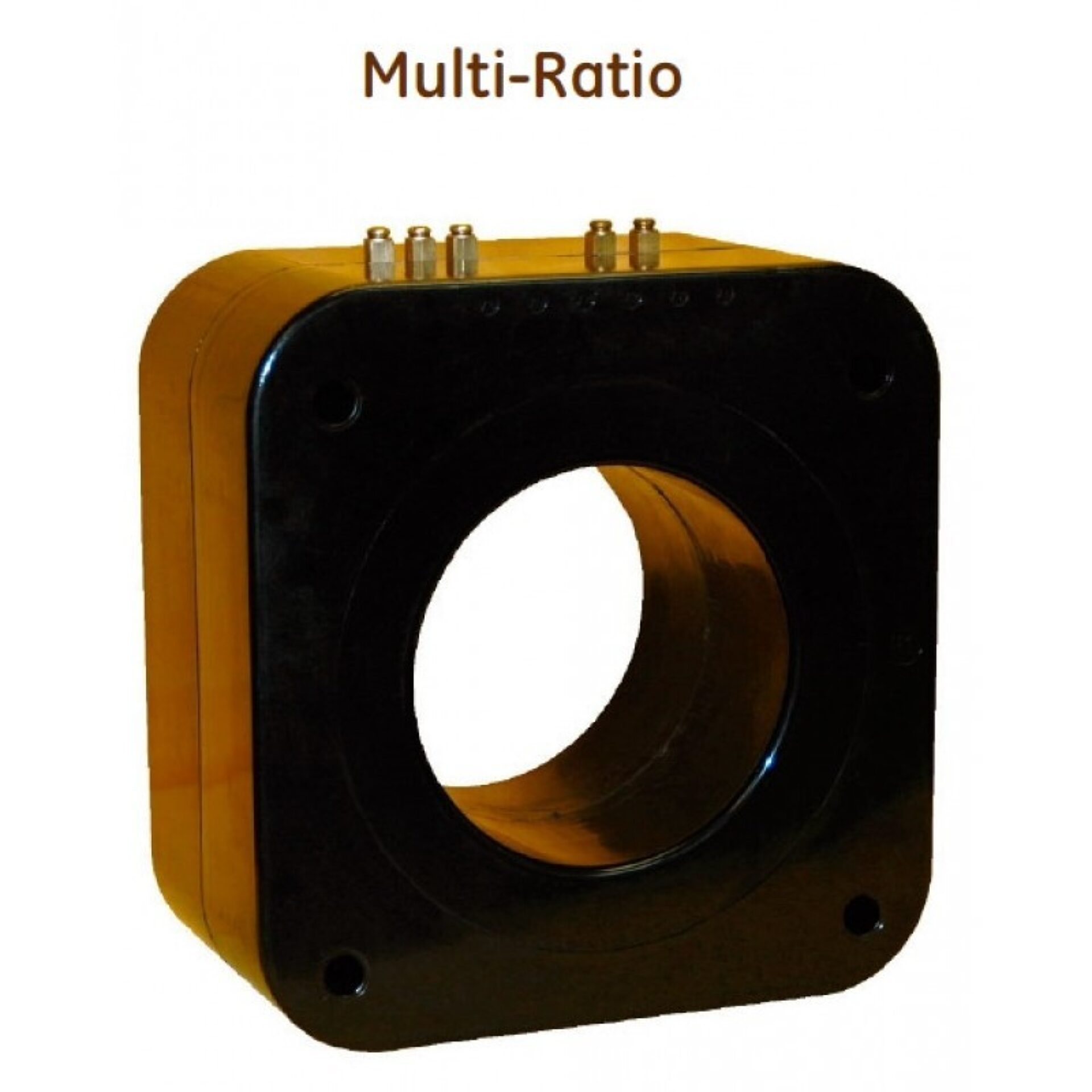

Model 145MR Current Transformer
Introducing the Model 145MR Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications., a globally recognized leader in electrical equipment and technology, this current transformer exemplifies precision engineering and durability. It is engineered to provide accurate current measurements across a wide range of electrical systems, making it an essential component for professionals seeking dependable performance in both industrial and commercial environments.
Overview
Introducing the Model 145MR Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications., a globally recognized leader in electrical equipment and technology, this current transformer exemplifies precision engineering and durability. It is engineered to provide accurate current measurements across a wide range of electrical systems, making it an essential component for professionals seeking dependable performance in both industrial and commercial environments.
and distributed by Spectrum Industries, the Model 145MR is built with robust construction to withstand harsh operating conditions. Its design ensures minimal signal loss and high accuracy, which are critical for effective system monitoring, fault detection, and protection. Whether used in power distribution, testing setups, or energy management systems, this current transformer offers consistent performance and long-lasting reliability.
Spectrum Industries, known for its commitment to quality and customer satisfaction, ensures that each Model 145MR is manufactured to strict standards, providing users with confidence in its operation. With its easy installation and maintenance, this current transformer is a versatile choice for engineers and technicians aiming to optimize their electrical systems. Trust the Model 145MR by, brought to you through Spectrum Industries, for precise and dependable current measurement solutions.
Request a Quote for Model 145MR Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 85 lbs
- Application
- Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage Rating
- 600 Volt, 10 kV BIL full wave
- Window Diameter
- 6.00"
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Winding Configuration
- Turns fully distributed between all taps
- Mounting Bracket Kit
- 0221B00775 (ordered separately)
Specification Table
| Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|
| C200 | 2 | 1.5 |
| C400 | 1.5 | 1 |
| C800 | 1.33 | 1 |
| C800 | 1 | 0.8 |
| C800 | 1 | 0.6 |
| C800 | 0.8 | 0.6 |
