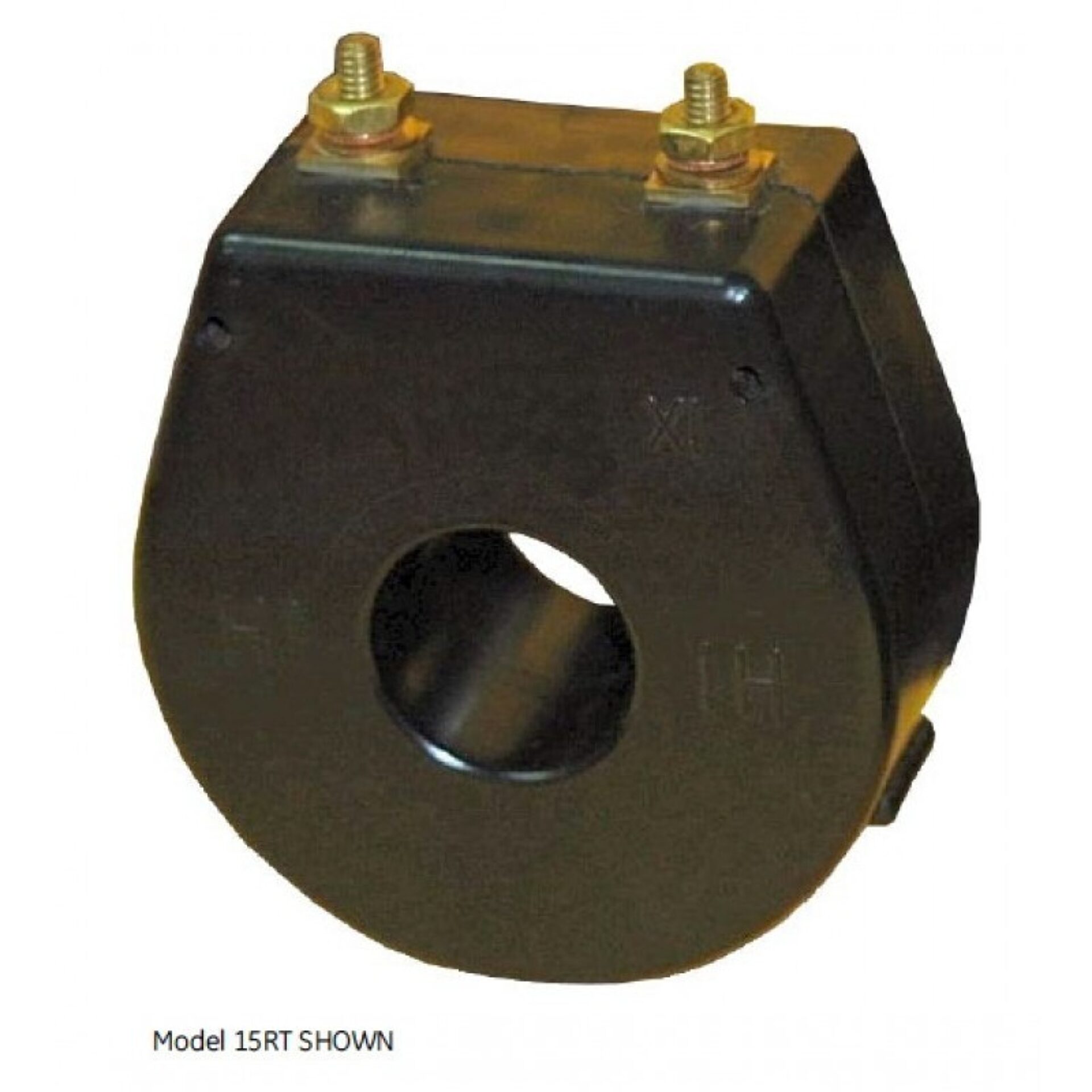

Model 15 Current Transformer
Introducing the Model 15 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for electrical measurement and protection applications. Whether you’re working on industrial, commercial, or utility-scale projects, the Model 15 offers accurate current monitoring to ensure optimal system performance and safety.
Overview
Introducing the Model 15 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for electrical measurement and protection applications. Whether you’re working on industrial, commercial, or utility-scale projects, the Model 15 offers accurate current monitoring to ensure optimal system performance and safety.
a global leader in electrical equipment and technology, this current transformer embodies the company's commitment to quality and innovation. The Model 15 is engineered to meet rigorous industry standards, providing dependable performance in demanding environments. Its robust construction and precise calibration make it suitable for a wide range of applications, including metering, relaying, and control systems.
Spectrum Industries, a trusted distributor of electrical components, ensures that the Model 15 is readily available for professionals seeking reliable measurement solutions. With its user-friendly design and durable build, this current transformer simplifies installation and maintenance, helping technicians achieve accurate readings with ease. Whether upgrading existing systems or designing new electrical setups, the Model 15, supplied by Spectrum Industries, is a dependable choice that combines quality, accuracy, and durability.
Request a Quote for Model 15 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 0.9 lbs
- Application
- Metering, Energy Management
- Window Diameter
- 0.94 in
- Insulation Level
- 600 Volt, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Lead Wire
- UL 1015, 105 C, CSA approved, #16 AWG, 24 in long
- Case Style Options
- SFT case style also available as SFL with leads
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 60 | 5 | 60:5 |
| 75 | 5 | 75:5 |
| 80 | 5 | 80:5 |
| 100 | 5 | 100:5 |
| 120 | 5 | 120:5 |
| 125 | 5 | 125:5 |
| 150 | 5 | 150:5 |
| 175 | 5 | 175:5 |
| 200 | 5 | 200:5 |
