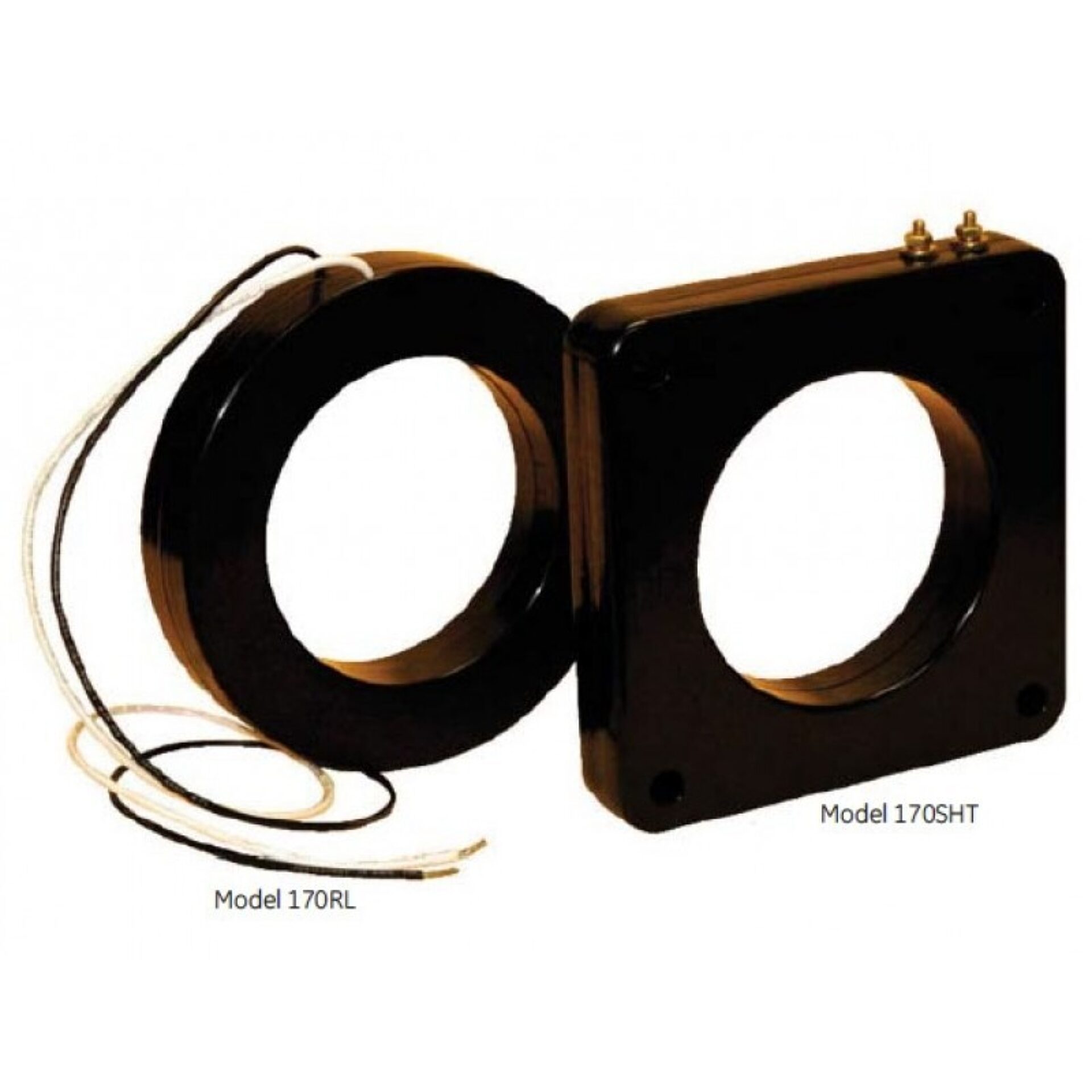

Model 170 Current Transformer
Introducing the Model 170 Current Transformer, a precision instrument designed to meet the demanding needs of electrical measurement and testing applications. and brought to you by Spectrum Industries, this current transformer exemplifies reliability, accuracy, and durability. It is engineered to provide precise current measurement and isolation, making it an essential tool for electrical engineers, technicians, and maintenance professionals.
Overview
Introducing the Model 170 Current Transformer, a precision instrument designed to meet the demanding needs of electrical measurement and testing applications. and brought to you by Spectrum Industries, this current transformer exemplifies reliability, accuracy, and durability. It is engineered to provide precise current measurement and isolation, making it an essential tool for electrical engineers, technicians, and maintenance professionals.
The Model 170 features robust construction and advanced design elements that ensure consistent performance even in demanding environments. Its high-quality materials and meticulous manufacturing process by guarantee long-term stability and minimal calibration drift. Whether used in laboratory settings, field testing, or industrial monitoring, this current transformer offers excellent linearity and low phase shift, enabling accurate readings across a wide range of currents.
Spectrum Industries takes pride in offering products that adhere to the highest standards of quality and performance. The Model 170 Current Transformer is no exception, combining ’s technological expertise with Spectrum’s commitment to customer satisfaction. Its compact form factor and ease of installation make it a versatile choice for various electrical measurement tasks.
In summary, the Model 170 Current Transformer by, supplied by Spectrum Industries, is a dependable and precise solution for current measurement needs. Its superior design and manufacturing quality ensure that users can rely on it for accurate, consistent performance in diverse electrical applications.
Request a Quote for Model 170 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 3 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage
- 600 Volt, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Flexible Leads
- UL 1015, 105°C, CSA approved, #16 AWG, 24" long; non-standard lead length can be specified
- Window Diameter
- 4.25 in
- Mounting Bracket Kit
- 0221B00187 (order separately)
- Model Variants
- 170SHT also available as 170SHL with leads
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 200 | 5 | 200:5 | 0.6B0.1 | 2 | 2 | 0.04 |
| 250 | 5 | 250:5 | 0.6B0.2 | 2 | 2 | 0.047 |
| 300 | 5 | 300:5 | 0.6B0.2 | 2 | 2 | 0.053 |
| 400 | 5 | 400:5 | 0.3B0.2 | 2 | 2 | 0.08 |
| 500 | 5 | 500:5 | 0.3B0.2 | 2 | 1.5 | 0.11 |
| 600 | 5 | 600:5 | 0.3B0.2 | 2 | 1.5 | 0.121 |
| 750 | 5 | 750:5 | 0.3B0.5 | 2 | 1.5 | 0.151 |
| 800 | 5 | 800:5 | 0.3B0.5 | 2 | 1.5 | 0.162 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 1.33 | 1 | 0.265 |
| 1200 | 5 | 1200:5 | 0.3B0.9 | 1.33 | 1 | 0.318 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 1.33 | 1 | 0.344 |
| 1600 | 5 | 1600:5 | 0.3B0.9 | 1.33 | 1 | 0.367 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 1 | 0.8 | 0.459 |
| 2500 | 5 | 2500:5 | 0.3B1.8 | 1 | 0.8 | 0.573 |
| 3000 | 5 | 3000:5 | 0.3B0.9 | 1 | 0.8 | 0.424 |
| 3500 | 5 | 3500:5 | 0.3B0.9 | 1 | 0.8 | 0.495 |
| 4000 | 5 | 4000:5 | 0.3B0.9 | 0.8 | 0.6 | 0.646 |
