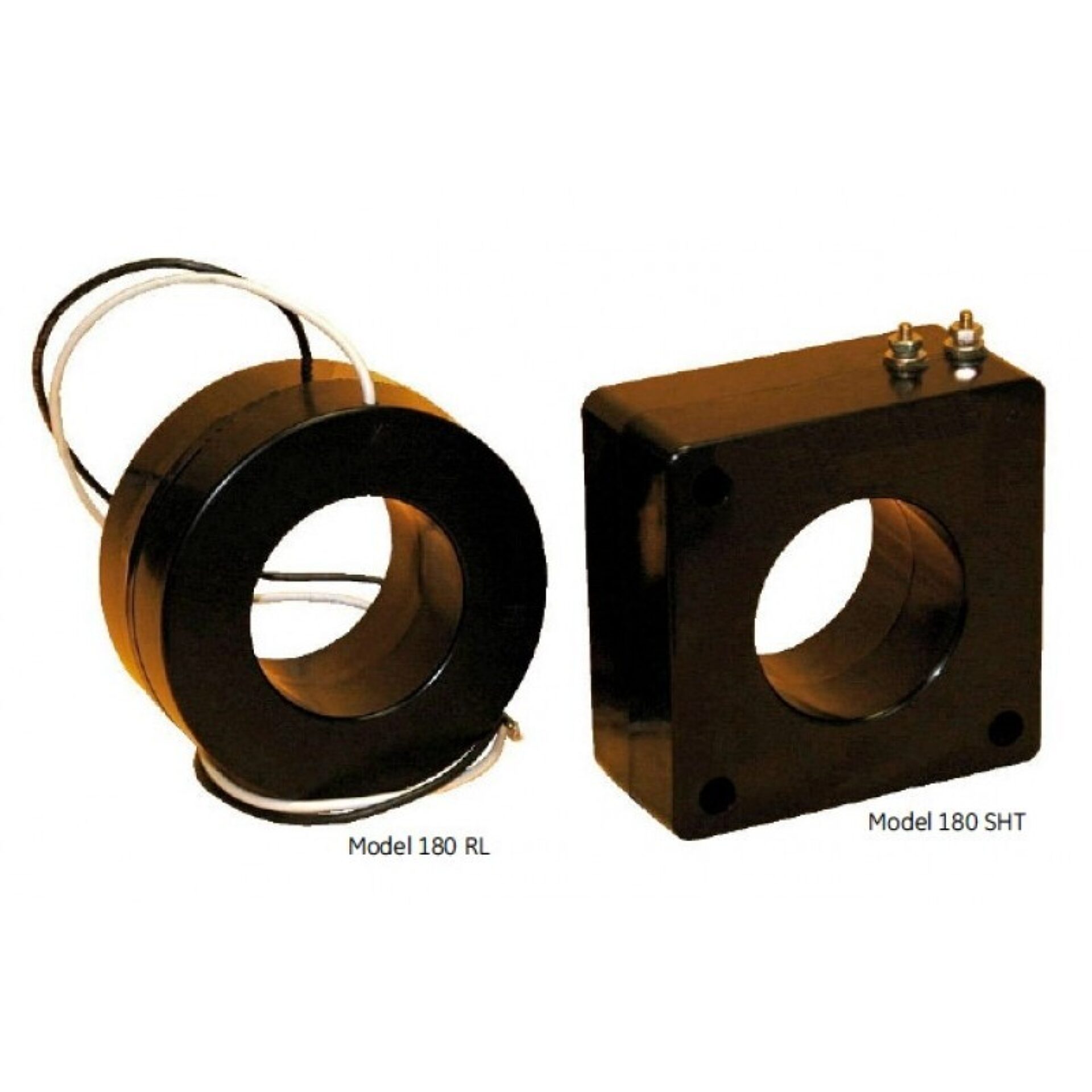

Model 180 Current Transformer
Introducing the Model 180 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and durability in mind, this current transformer is an essential tool for accurate current measurement in various electrical systems. Whether used in industrial, commercial, or utility applications, the Model 180 offers reliable performance and ease of use, making it a trusted choice for engineers and technicians alike.
Overview
Introducing the Model 180 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and durability in mind, this current transformer is an essential tool for accurate current measurement in various electrical systems. Whether used in industrial, commercial, or utility applications, the Model 180 offers reliable performance and ease of use, making it a trusted choice for engineers and technicians alike.
a global leader in electrical equipment and technology, this current transformer adheres to rigorous standards of quality and safety. Its robust construction ensures long-lasting operation even in demanding environments, while its precise current transformation capabilities enable detailed analysis and monitoring of electrical circuits. The Model 180 is engineered to provide accurate readings across a wide range of current levels, facilitating effective system management and troubleshooting.
Spectrum Industries, a trusted distributor of electrical instruments, offers the Model 180 Current Transformer as part of their comprehensive product lineup. This device is ideal for applications requiring precise current measurement, such as power distribution, protection relays, and metering. With its reliable performance and ’s reputation for excellence, the Model 180 current transformer is an excellent investment for professionals seeking dependable electrical measurement solutions.
Request a Quote for Model 180 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 3.5 lbs
- Application
- Metering
- Standards
- UL, CSA, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 2.50 in
- Insulation Level
- 600 V, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with flatwasher, lockwasher and regular nut
- Leads
- UL 1015, 105 C, CSA approved, #16 AWG, 24 in long
- Mounting Bracket Kit
- 0221B00777
- Metering Approval
- Industry Canada No. T-189
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 50 | 5 | 50:5 | — | 1.33 | 1 | 0.009 |
| 75 | 5 | 75:5 | 1.2B0.1 | 1.33 | 1 | 0.018 |
| 100 | 5 | 100:5 | 1.2B0.1 | 1.33 | 1 | 0.021 |
| 150 | 5 | 150:5 | 0.6B0.1 | 1.33 | 1 | 0.038 |
| 200 | 5 | 200:5 | 0.6B0.2 | 1.33 | 1 | 0.051 |
| 250 | 5 | 250:5 | 0.3B0.2 | 1.33 | 1 | 0.064 |
| 300 | 5 | 300:5 | 0.3B0.2 | 1.33 | 1 | 0.076 |
| 400 | 5 | 400:5 | 0.3B0.5 | 1.33 | 1 | 0.102 |
| 500 | 5 | 500:5 | 0.3B0.5 | 1.33 | 1 | 0.148 |
| 600 | 5 | 600:5 | 0.3B0.5 | 1.33 | 1 | 0.177 |
| 750 | 5 | 750:5 | 0.3B0.5 | 1.33 | 1 | 0.174 |
| 800 | 5 | 800:5 | 0.3B0.5 | 1.33 | 1 | 0.202 |
| 1000 | 5 | 1000:5 | 0.3B0.9 | 1.33 | 1 | 0.253 |
| 1200 | 5 | 1200:5 | 0.3B1.8 | 1.33 | 1 | 0.303 |
| 1500 | 5 | 1500:5 | 0.3B1.8 | 1.33 | 1 | 0.307 |
| 1600 | 5 | 1600:5 | 0.3B1.8 | 1.25 | 1 | 0.359 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 1 | 0.75 | 0.449 |
