Model 19 Current Transformer
Introducing the Model 19 Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate electrical measurement and system protection. Whether you're involved in industrial automation, power distribution, or instrumentation, the Model 19 offers the performance and durability required for demanding applications.
Overview
Introducing the Model 19 Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate electrical measurement and system protection. Whether you're involved in industrial automation, power distribution, or instrumentation, the Model 19 offers the performance and durability required for demanding applications.
a globally recognized leader in electrical and electronic manufacturing, this current transformer benefits from decades of expertise and innovation. Spectrum Industries, a trusted provider of electrical instrumentation, ensures that each Model 19 is manufactured to the highest standards, delivering consistent accuracy and long-term stability. Its robust construction and precise specifications make it suitable for a wide range of measurement and control tasks, enabling engineers and technicians to monitor electrical systems with confidence.
The Model 19 Current Transformer is designed to seamlessly integrate into existing setups, providing reliable current measurement without compromising system integrity. Its versatility and dependable performance make it a valuable addition to any electrical infrastructure, ensuring safety, efficiency, and precise data collection. With Spectrum Industries' commitment to quality and our legacy of technological excellence, the Model 19 stands out as a trusted choice for professionals seeking dependable current transformation solutions.
Request a Quote for Model 19 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 3 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage
- 600 V
- Window Diameter
- 4.25 in
- Flexible Leads
- #16 AWG, 24 in
- SHT Terminals
- No. 8-32 brass studs
- RT Terminals
- No. 10-32 brass studs
- Mounting Bracket Kit
- 0221B00183
- Bus Bar Mounting Kit
- 0221A26075
- Model Variants

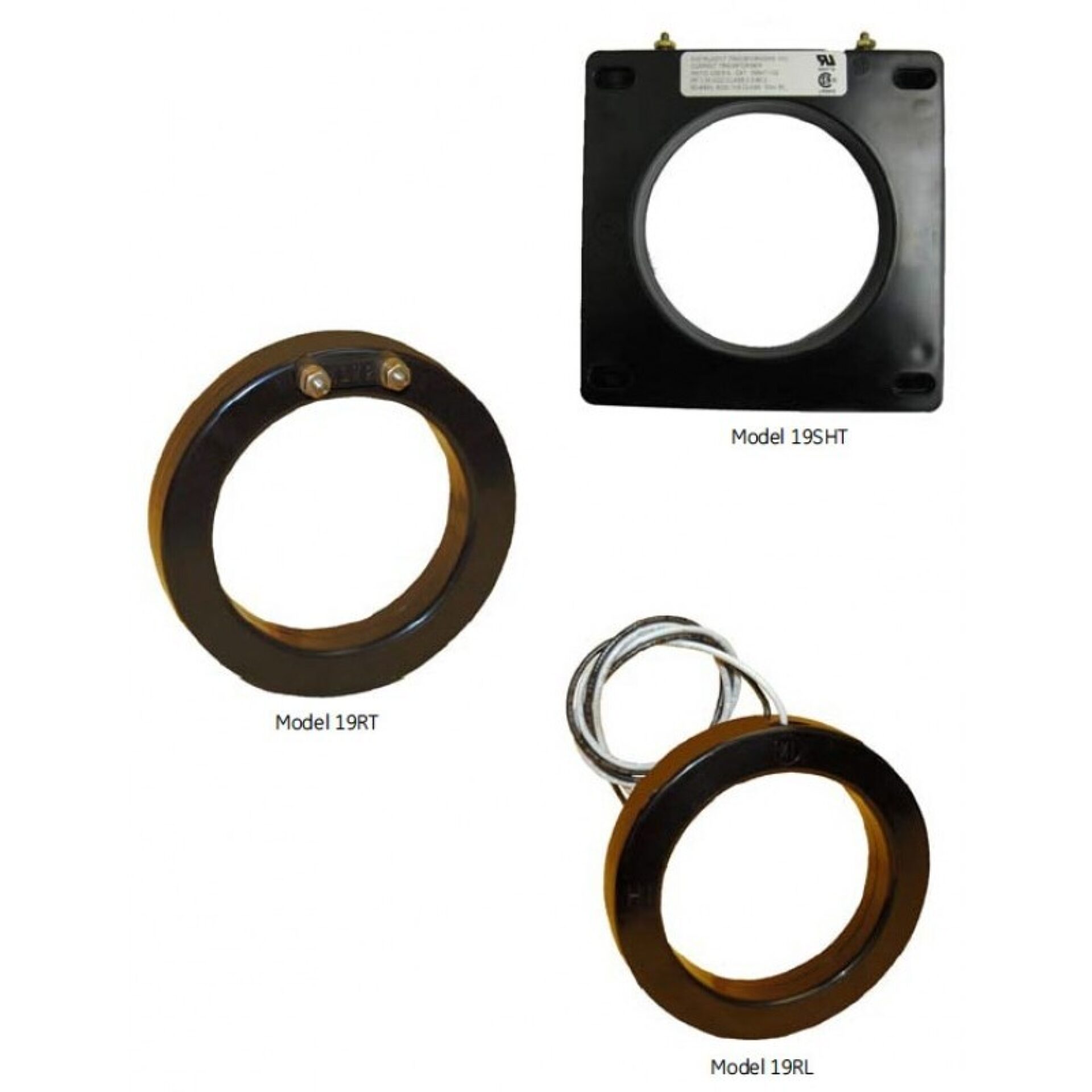

- 19RL / 19RT / 19SHT
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|
| 300 | 5 | 300:5 | 2 | 2 | 0.048 |
| 400 | 5 | 400:5 | 2 | 2 | 0.064 |
| 500 | 5 | 500:5 | 2 | 1.5 | 0.087 |
| 600 | 5 | 600:5 | 2 | 1.5 | 0.116 |
| 750 | 5 | 750:5 | 1.5 | 1.33 | 0.145 |
| 800 | 5 | 800:5 | 1.5 | 1.33 | 0.155 |
| 1000 | 5 | 1000:5 | 1.33 | 1 | 0.242 |
| 1200 | 5 | 1200:5 | 1.33 | 1 | 0.291 |
| 1500 | 5 | 1500:5 | 1.5 | 1 | 0.2 |
| 1600 | 5 | 1600:5 | 1.5 | 1 | 0.213 |
| 2000 | 5 | 2000:5 | 1.33 | 1 | 0.266 |
| 2500 | 5 | 2500:5 | 1 | 0.8 | 0.333 |
| 3000 | 5 | 3000:5 | 1 | 0.8 | 0.399 |
