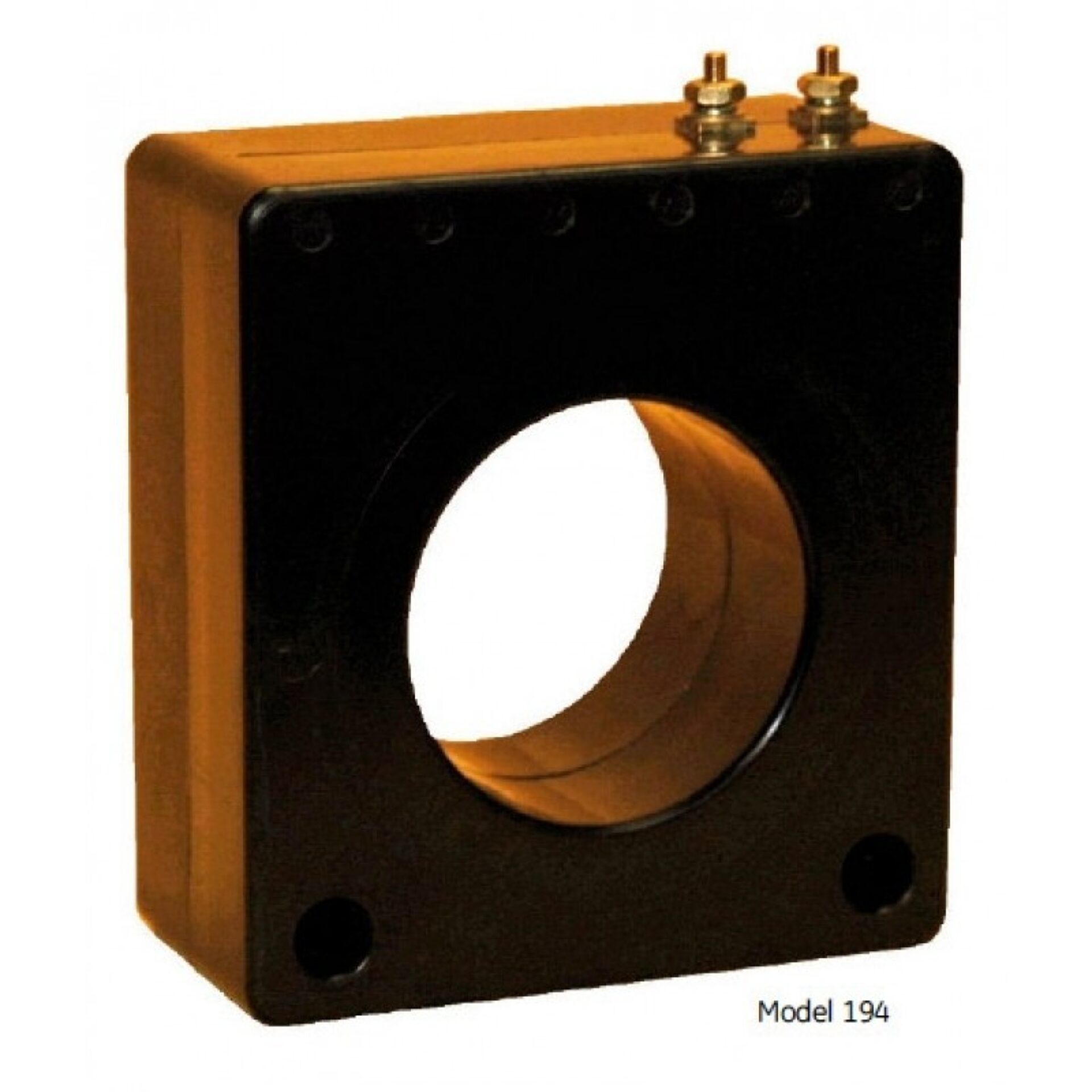

Model 194 Current Transformer
Introducing the Model 194 Current Transformer, a high-quality electrical component and offered by Spectrum Industries. Designed to provide accurate current measurement and reliable performance, this current transformer is an essential tool for professionals working in electrical testing, power distribution, and automation systems. Its robust construction and precise specifications ensure consistent operation in demanding environments, making it an ideal choice for both industrial and commercial applications.
Overview
Introducing the Model 194 Current Transformer, a high-quality electrical component and offered by Spectrum Industries. Designed to provide accurate current measurement and reliable performance, this current transformer is an essential tool for professionals working in electrical testing, power distribution, and automation systems. Its robust construction and precise specifications ensure consistent operation in demanding environments, making it an ideal choice for both industrial and commercial applications.
a global leader in electrical and electronic equipment, the Model 194 embodies the company's commitment to innovation, quality, and safety. Spectrum Industries has partnered with to bring this advanced current transformer to market, ensuring that customers receive a product that meets rigorous standards and delivers dependable results. Whether used for monitoring, metering, or protection purposes, this transformer offers excellent accuracy and durability, helping users maintain optimal system performance.
The Model 194 Current Transformer features a compact design that facilitates easy installation and integration into existing electrical systems. Its high-quality construction minimizes errors and ensures long-term reliability, reducing maintenance costs and downtime. With Spectrum Industries' extensive experience in electrical components and our renowned engineering expertise, this product stands out as a trusted solution for those seeking precision and dependability in their electrical measurements.
Request a Quote for Model 194 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 3.5 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 2.50 in
- Insulation Level
- 600 V, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|---|
| 100 | 5 | 100:5 | — | 1.2B0.1 | 2 | 2 | 0.033 |
| 150 | 5 | 150:5 | — | 0.6B0.1 | 2 | 2 | 0.05 |
| 200 | 5 | 200:5 | — | 0.6B0.2 | 2 | 2 | 0.065 |
| 250 | 5 | 250:5 | — | 0.3B0.2 | 2 | 1.5 | 0.084 |
| 300 | 5 | 300:5 | — | 0.3B0.2 | 2 | 1.5 | 0.101 |
| 400 | 5 | 400:5 | C10 | 0.3B0.5 | 2 | 1.5 | 0.104 |
| 500 | 5 | 500:5 | C10 | 0.3B0.9 | 1.5 | 1 | 0.133 |
| 600 | 5 | 600:5 | C10 | 0.3B0.5 | 1.5 | 1 | 0.18 |
| 750 | 5 | 750:5 | C10 | 0.3B1.8 | 1 | 0.8 | 0.283 |
| 800 | 5 | 800:5 | C10 | 0.3B1.8 | 1 | 0.8 | 0.302 |
| 1000 | 5 | 1000:5 | — | 0.3B1.8 | 1 | 0.8 | 0.354 |
| 1200 | 5 | 1200:5 | — | 0.3B1.8 | 1 | 0.8 | 0.425 |
| 1500 | 5 | 1500:5 | — | 0.3B1.8 | 1 | 0.6 | 0.531 |
| 1600 | 5 | 1600:5 | — | 0.3B1.8 | 0.8 | 0.6 | 0.566 |
