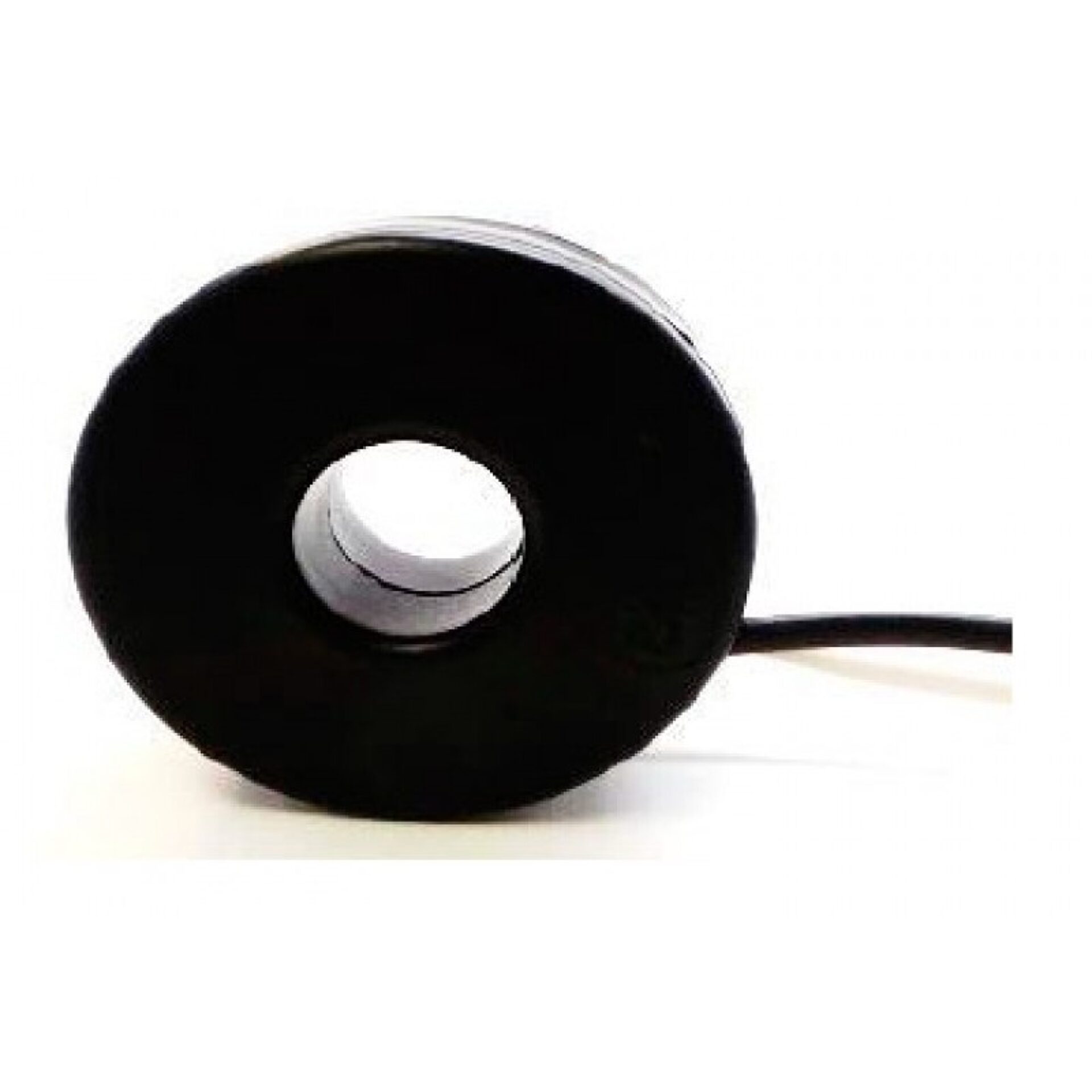

Model 1A Current Transformer
APPLICATION: With ammeters, energy management systems and instrumentation
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER: 0.64”
APPROXIMATE WEIGHT: 0.42 lbs.
CONNECTIONS:
- Flexible Leads are UL 1015 105°C, CSA approved #16AWG, 24” long
- Non-standard length to be specified
-1 Amp, and other secondary currents available upon request
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
