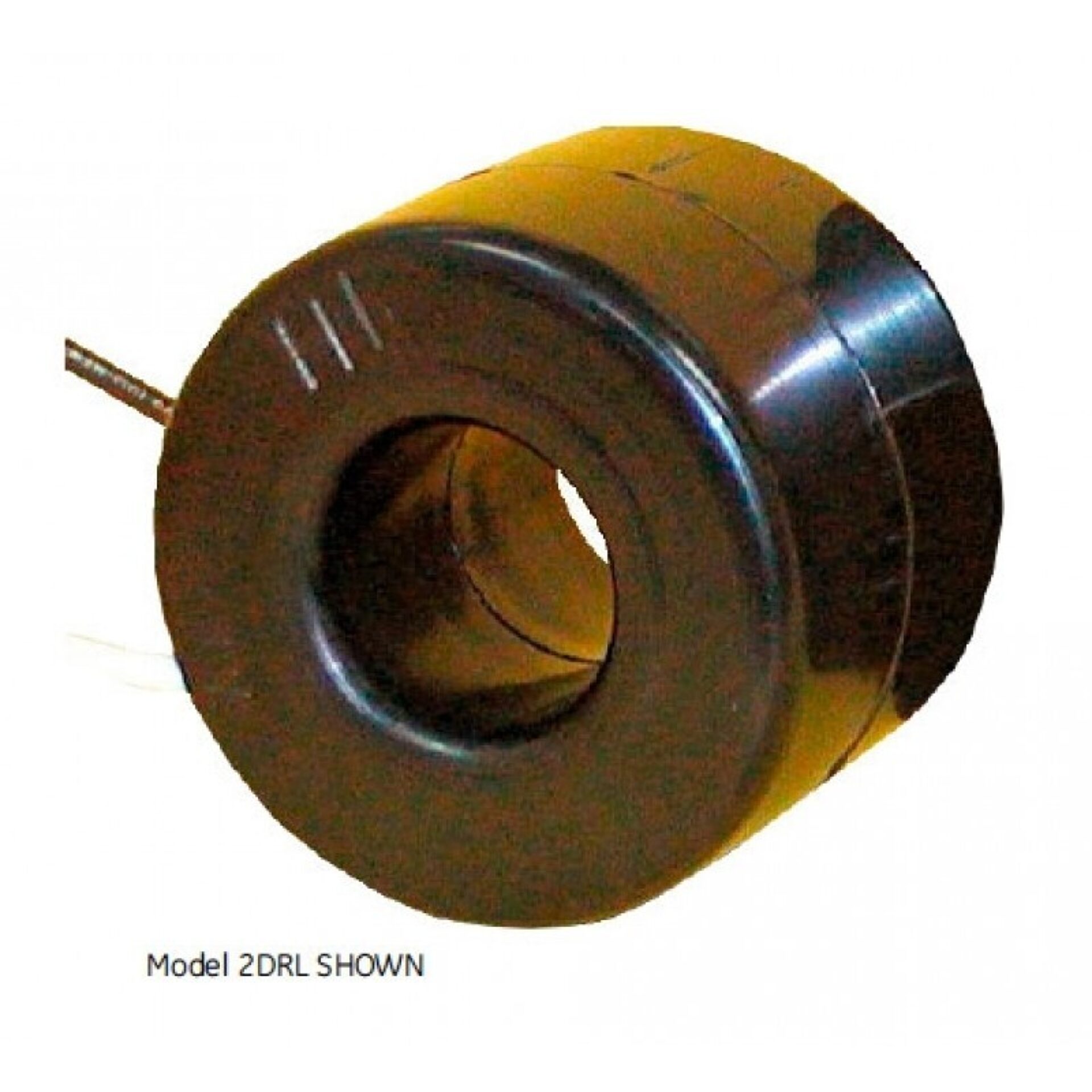

Model 2 Current Transformer
Model 2 Current Transformer - Transformers
APPLICATION: Generally for ammeter use only.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
RATING FACTOR: 2.0 @ 30oC. amb., 300:5 - 1.5 @ 30oC. amb.
Flexible leads are UL 1015, 105oC., CSA approved. #16 AWG, 24" long.
Non-standard length to be specified.
Terminals are brass studs No. 8-32 with one flat washer, lockwasher and regular nut.
SHT and SFT case styles also available as SHL and SFL with leads.
Mounting bracket kit 0221B00839 when required for Model 2SHT.
Approximate weight 0.5lbs.
This model can be configured as 2SFT, 2SHT, 2RL and 2DRL
Window Diameter 1.00", 1.13"
Overview
APPLICATION: Generally for ammeter use only.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
RATING FACTOR: 2.0 @ 30oC. amb., 300:5 - 1.5 @ 30oC. amb.
Flexible leads are UL 1015, 105oC., CSA approved. #16 AWG, 24" long.
Non-standard length to be specified.
Terminals are brass studs No. 8-32 with one flat washer, lockwasher and regular nut.
SHT and SFT case styles also available as SHL and SFL with leads.
Mounting bracket kit 0221B00839 when required for Model 2SHT.
Approximate weight 0.5lbs.
This model can be configured as 2SFT, 2SHT, 2RL and 2DRL
Window Diameter 1.00", 1.13"
Request a Quote for Model 2 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 0.5 lbs
- Application
- Metering
- Standards
- UL, CSA
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Rating Factor
- 1.0 @ 30 deg C ambient
- Window Diameter
- 1.00 in and 1.13 in
- Lead Wire
- UL 1015, 105 deg C, #16 AWG, 24 in (non-standard length to be specified)
- Terminals
- Brass studs No. 8-32 with flat washer, lockwasher and nut
- Case Style Options
- SHT and SFT case styles also available as SHL and SFL with leads
- Mounting Bracket Kit
- 0221B00839 (for Model 2SHT when required)
Maximum 1000 characters
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 60 | 5 | 60:5 |
| 75 | 5 | 75:5 |
| 80 | 5 | 80:5 |
| 100 | 5 | 100:5 |
| 120 | 5 | 120:5 |
| 125 | 5 | 125:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
