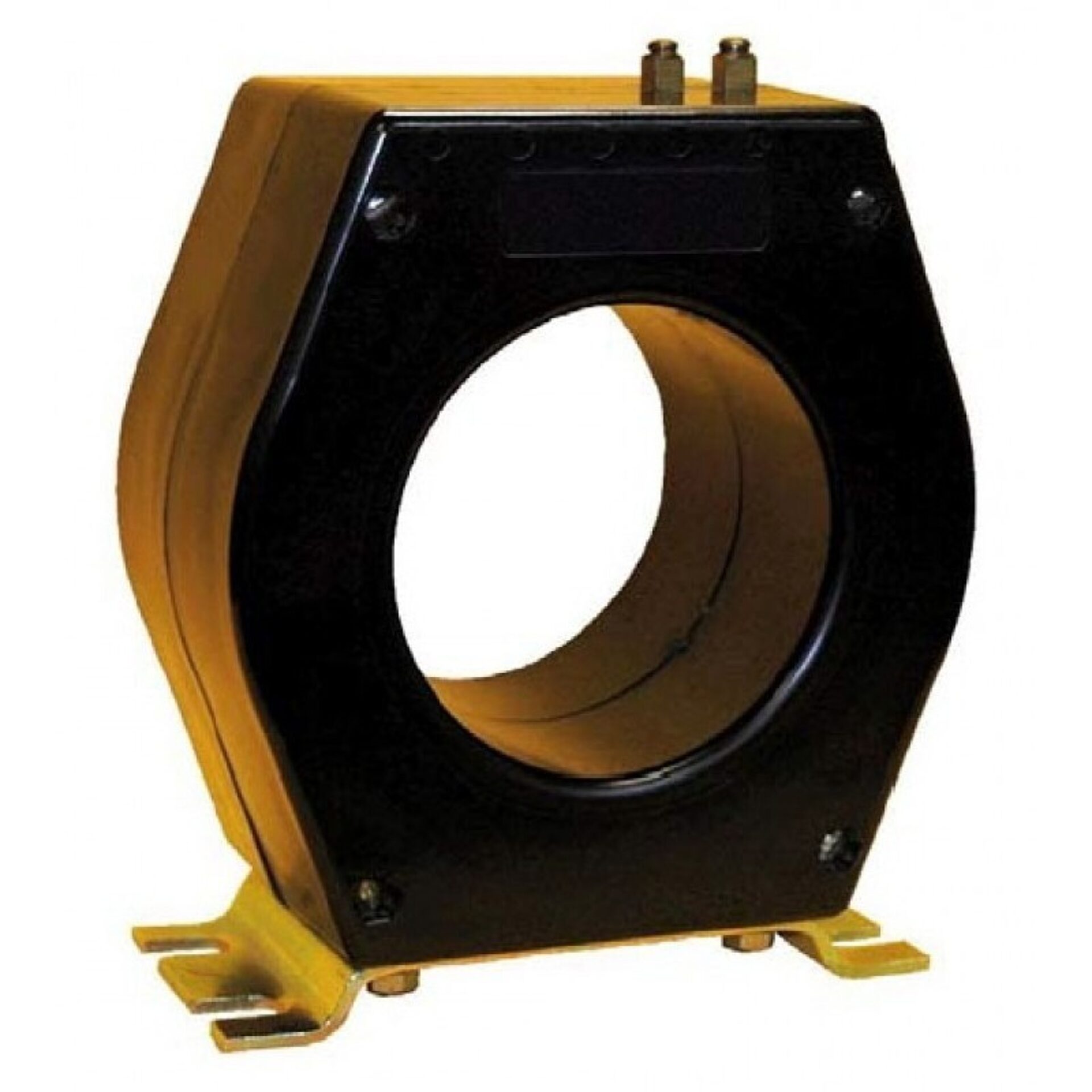

Model 200 Current Transformer
Introducing the Model 200 Current Transformer, a high-quality electrical measurement instrument and distributed by Spectrum Industries. Designed for precision and reliability, this current transformer is an essential tool for professionals working in electrical testing, maintenance, and system monitoring. Whether you need to measure current flow in power distribution systems or perform detailed diagnostics, the Model 200 offers accurate readings and robust construction to meet demanding industrial requirements.
Overview
Introducing the Model 200 Current Transformer, a high-quality electrical measurement instrument and distributed by Spectrum Industries. Designed for precision and reliability, this current transformer is an essential tool for professionals working in electrical testing, maintenance, and system monitoring. Whether you need to measure current flow in power distribution systems or perform detailed diagnostics, the Model 200 offers accurate readings and robust construction to meet demanding industrial requirements.
a globally recognized leader in electrical and electronic solutions, this current transformer embodies ’s commitment to quality and innovation. Its design ensures excellent accuracy across a wide range of current levels, making it suitable for various applications from small-scale installations to large industrial facilities. The Model 200 features a durable construction that withstands harsh environments, providing long-lasting performance and dependable operation over time.
Spectrum Industries distributes this advanced current transformer, ensuring it reaches professionals who value precision and durability in their electrical measurements. The product’s user-friendly design simplifies installation and operation, enabling technicians to perform accurate current assessments efficiently. Whether used for system troubleshooting, load analysis, or safety testing, the Model 200 Current Transformer by is a reliable choice for electrical professionals seeking precision and durability in their measurement tools.
Request a Quote for Model 200 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 46 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 2.50 in
- Insulation Voltage Class
- 600 V
- Terminals
- Brass screws No. 10-32 with one flatwasher and one lockwasher
- Ratio Options
- Multi-ratios available on request; excitation data available upon request
- Regulatory Approval
- Industry Canada Approval No. T-197
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|---|
| 50 | 5 | 50:5 | C20 | — | 2 | 2 | 0.026 |
| 75 | 5 | 75:5 | C20 | 1.2B0.2 | 2 | 2 | 0.039 |
| 100 | 5 | 100:5 | C20 | 0.6B0.1 | 2 | 2 | 0.051 |
| 150 | 5 | 150:5 | C50 | 0.3B0.1 | 2 | 2 | 0.077 |
| 200 | 5 | 200:5 | C50 | 0.3B0.2 | 2 | 2 | 0.103 |
| 250 | 5 | 250:5 | C100 | 0.3B0.5 | 2 | 2 | 0.129 |
| 300 | 5 | 300:5 | C100 | 0.3B0.9 | 2 | 2 | 0.154 |
| 400 | 5 | 400:5 | C200 | 0.3B1.8 | 2 | 1.5 | 0.206 |
| 500 | 5 | 500:5 | C200 | 0.3B1.8 | 1.5 | 1.5 | 0.408 |
| 600 | 5 | 600:5 | C200 | 0.3B1.8 | 1.5 | 1 | 0.489 |
