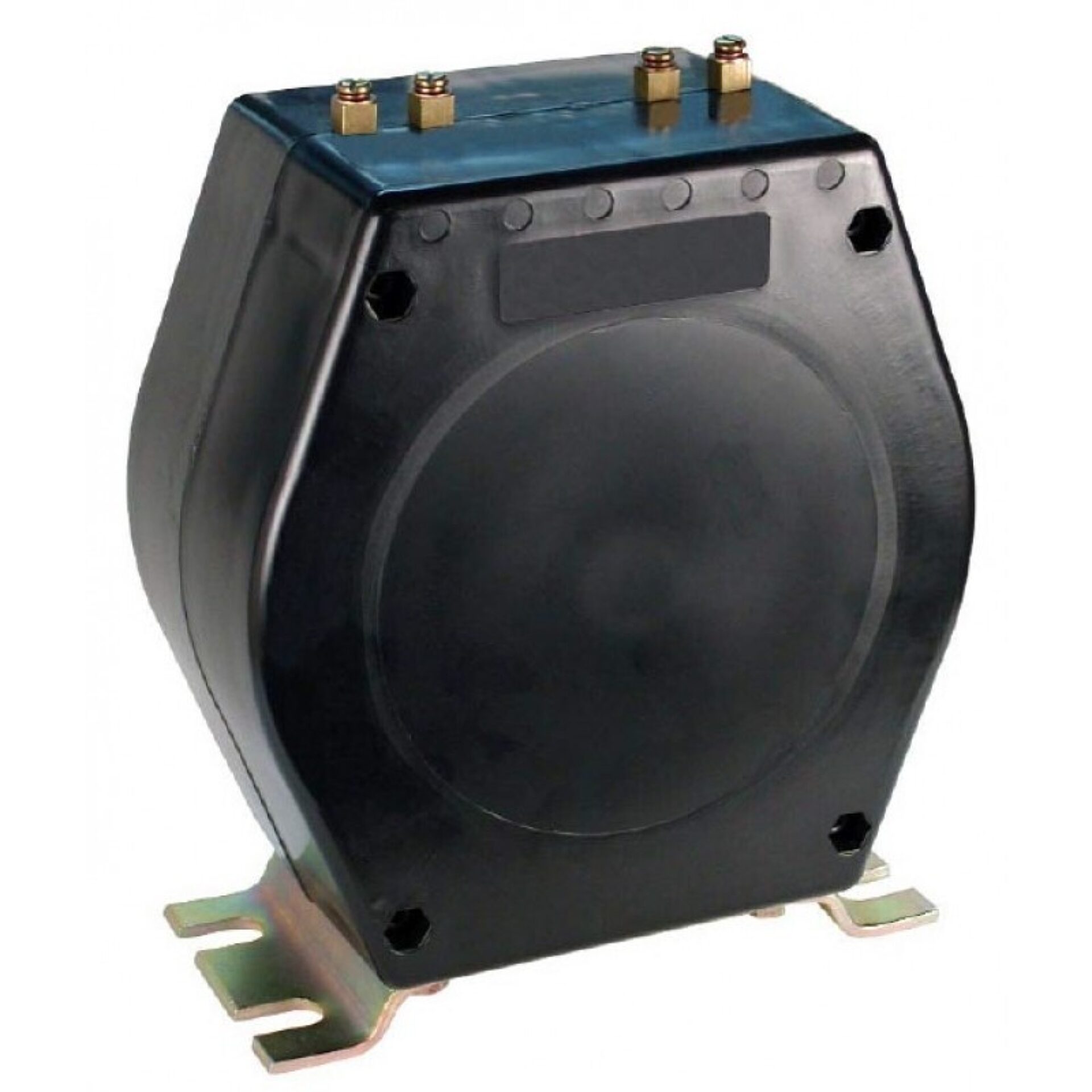

Model 200WP Current Transformer
Introducing the Model 200WP Current Transformer, a reliable and precision-engineered solution designed to meet the demanding needs of electrical measurement and protection systems. and brought to you by Spectrum Industries, this current transformer exemplifies high-quality craftsmanship and innovative design, ensuring accurate current measurement in a variety of industrial and commercial applications.
Overview
Introducing the Model 200WP Current Transformer, a reliable and precision-engineered solution designed to meet the demanding needs of electrical measurement and protection systems. and brought to you by Spectrum Industries, this current transformer exemplifies high-quality craftsmanship and innovative design, ensuring accurate current measurement in a variety of industrial and commercial applications.
The Model 200WP is built with durability and performance in mind, featuring robust construction that can withstand harsh operational environments. Its core design provides excellent linearity and minimal phase shift, making it ideal for precise monitoring and control tasks. Whether used in power distribution, testing laboratories, or equipment calibration, this current transformer offers consistent and dependable readings, contributing to safer and more efficient electrical systems.
a global leader in electrical and electronic manufacturing, the Model 200WP benefits from decades of engineering expertise and technological advancements. Spectrum Industries has carefully integrated these features into a compact, easy-to-install package that ensures ease of use and long-term reliability. With its high accuracy, safety features, and durable build, this current transformer is an excellent choice for professionals seeking a trusted instrument to support their electrical measurement needs.
In summary, the -produced Model 200WP Current Transformer, available through Spectrum Industries, combines precision engineering with industrial-grade durability, making it an essential component for anyone requiring accurate current measurement in complex electrical systems.
Request a Quote for Model 200WP Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 46 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage
- 0.6 kV, BIL 10 kV full wave
- Continuous Thermal Current Rating Factor
- 1.33 at 30°C ambient, 1.0 at 55°C ambient
- Secondary Terminals (up to 25:5)
- Brass screws No. 10-32 with flatwasher, lockwasher and regular nut
- Secondary Terminals (above 25:5)
- 1/4-20 studs
- Description
- Low ratio wound primary current transformer, suitable for primary currents up to 50 amperes
- VA Rating (200WP-1 series)
- 150 VA at ±1% class, relay class C100
- VA Rating (200WP-2 series)
- 500 VA at ±1% class, relay class C200
- ANSI Metering Class (200WP-1)
- 0.3 at B0.1/B0.2/B0.5/B0.9; 0.6 at B1.8
- ANSI Metering Class (200WP-2)
- 0.3 at B0.1/B0.2/B0.5/B0.9/B1.8
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 1 | 5 | 1:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 2.5 | 5 | 2.5:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 5 | 5 | 5:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 7.5 | 5 | 7.5:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 10 | 5 | 10:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 15 | 5 | 15:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 20 | 5 | 20:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 25 | 5 | 25:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 30 | 5 | 30:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 40 | 5 | 40:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 50 | 5 | 50:5 | C100 | 0.3B0.9 | 1.33 | 1 |
| 1 | 5 | 1:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 2.5 | 5 | 2.5:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 5 | 5 | 5:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 7.5 | 5 | 7.5:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 10 | 5 | 10:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 15 | 5 | 15:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 20 | 5 | 20:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 25 | 5 | 25:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 30 | 5 | 30:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 40 | 5 | 40:5 | C200 | 0.3B1.8 | 1.33 | 1 |
| 50 | 5 | 50:5 | C200 | 0.3B1.8 | 1.33 | 1 |
