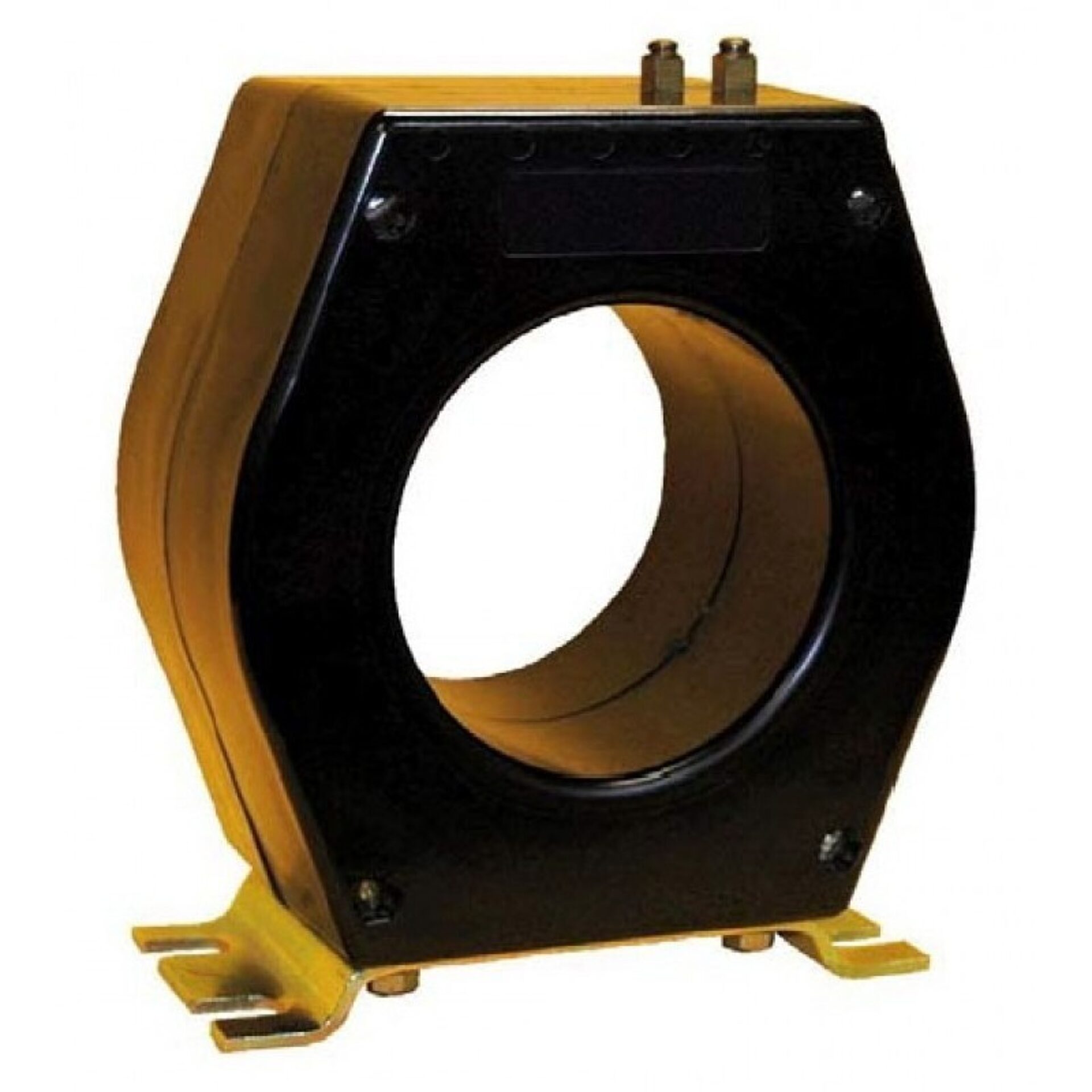

Model 201 Current Transformer
Introducing the Model 201 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for professionals seeking accurate current measurement in various electrical applications. Whether used in power distribution, industrial automation, or testing environments, the Model 201 ensures consistent performance and dependable readings.
Overview
Introducing the Model 201 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for professionals seeking accurate current measurement in various electrical applications. Whether used in power distribution, industrial automation, or testing environments, the Model 201 ensures consistent performance and dependable readings.
a global leader in electrical equipment and technology, the Model 201 Current Transformer exemplifies the company's commitment to innovation and quality. Built with durable materials and engineered for ease of installation, this transformer provides accurate current sensing capabilities across a wide range of currents. Its robust construction ensures longevity and stability even in demanding operational conditions, making it a trusted choice for engineers and technicians alike.
Spectrum Industries proudly offers the Model 201 Current Transformer as part of their extensive portfolio of electrical measurement solutions. With a focus on delivering products that meet the highest standards of quality and performance, Spectrum Industries ensures that customers receive reliable equipment backed by excellent support. If you require precise current measurement with a proven, dependable device, the Model 201, available through Spectrum Industries, is an excellent choice to meet your needs.
Request a Quote for Model 201 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 43 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 3.50 in
- Insulation Voltage
- 600 V
- Terminals
- Brass screws No. 10-32 with flatwasher and lockwasher
- Multi-ratio Option
- Available on request
- Industry Canada Approval
- T-198
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 50 | 5 | 50:5 | C10 | 2 | 2 | 0.024 |
| 75 | 5 | 75:5 | C20 | 2 | 2 | 0.036 |
| 100 | 5 | 100:5 | C20 | 2 | 2 | 0.047 |
| 150 | 5 | 150:5 | C20 | 2 | 2 | 0.071 |
| 200 | 5 | 200:5 | C50 | 2 | 2 | 0.095 |
| 250 | 5 | 250:5 | C50 | 2 | 2 | 0.119 |
| 300 | 5 | 300:5 | C100 | 2 | 2 | 0.142 |
| 400 | 5 | 400:5 | C100 | 2 | 2 | 0.19 |
| 500 | 5 | 500:5 | C100 | 2 | 2 | 0.237 |
| 600 | 5 | 600:5 | C200 | 2 | 2 | 0.285 |
| 750 | 5 | 750:5 | C200 | 2 | 1.5 | 0.448 |
| 800 | 5 | 800:5 | C200 | 2 | 1.5 | 0.478 |
