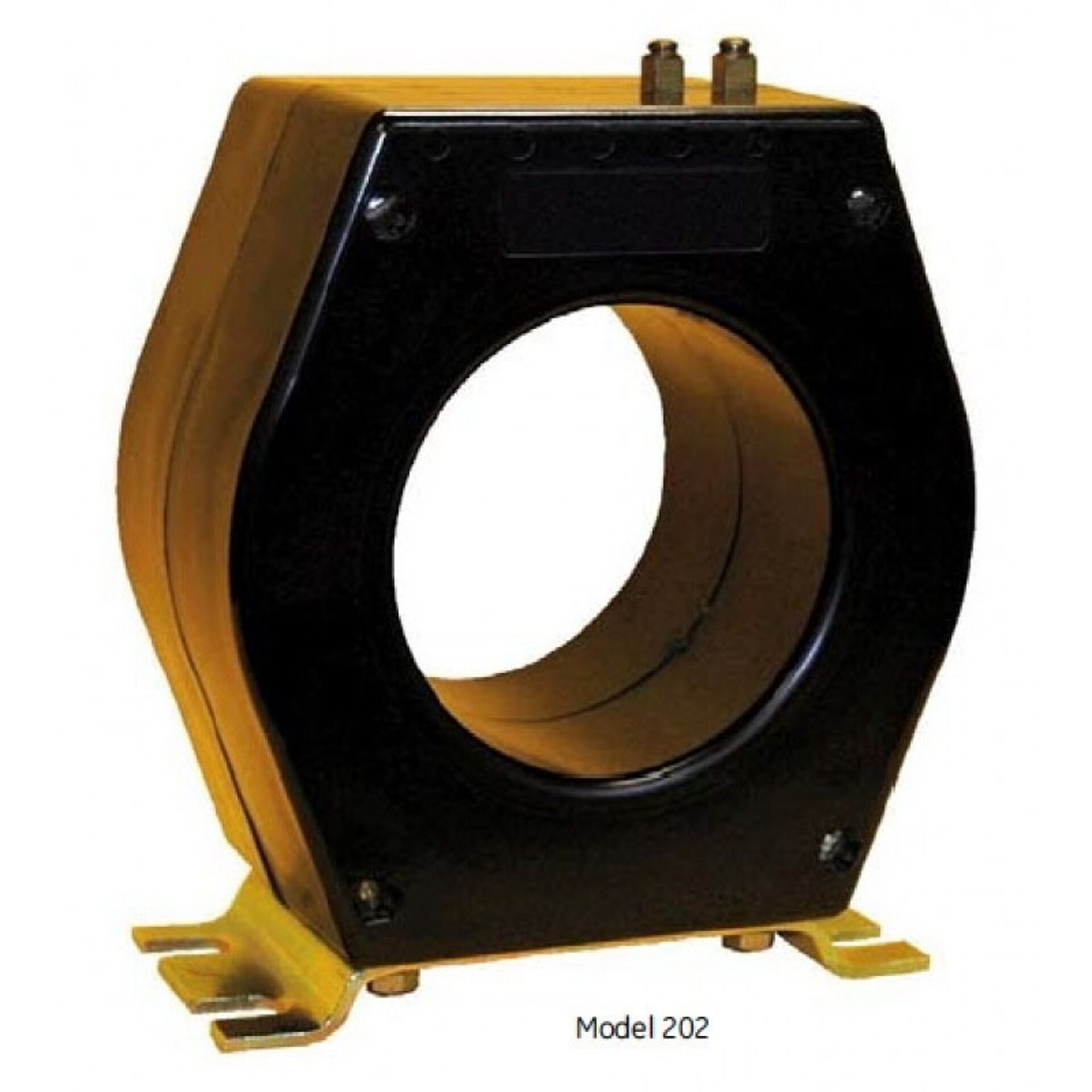

Model 202 Current Transformer
Introducing the Model 202 Current Transformer, a precision-engineered product, brought to you by Spectrum Industries. Designed to deliver accurate current measurement and reliable performance in a variety of electrical applications, this current transformer is an essential component for professionals seeking durability and precision in their instrumentation.
Overview
Introducing the Model 202 Current Transformer, a precision-engineered product, brought to you by Spectrum Industries. Designed to deliver accurate current measurement and reliable performance in a variety of electrical applications, this current transformer is an essential component for professionals seeking durability and precision in their instrumentation.
a leader in electrical and electronic solutions, the Model 202 is built with high-quality materials to ensure longevity and consistent performance. Its robust construction makes it suitable for use in demanding environments, providing accurate current readings that are critical for system monitoring, protection, and control. Whether used in industrial, commercial, or utility settings, this current transformer offers dependable operation and seamless integration with existing electrical systems.
Spectrum Industries is proud to offer the Model 202 Current Transformer as part of its extensive range of electrical products. This product exemplifies our commitment to providing reliable, high-performance solutions to meet the needs of engineers, technicians, and system integrators. With its precise specifications and trusted manufacturing by, the Model 202 ensures that your electrical measurements are both accurate and consistent, helping to optimize system performance and safety.
In summary, the -produced Model 202 Current Transformer, available through Spectrum Industries, is an excellent choice for anyone requiring dependable current measurement solutions. Its combination of quality, accuracy, and durability makes it a valuable addition to any electrical infrastructure.
Request a Quote for Model 202 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 34 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 4.88"
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Ratio Options
- Multi-ratios available on request
- Excitation Data
- Available upon request
- Approvals
- Ratios marked with * are Industry Canada approved (Approval No. T-198 / T-199)
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|---|
| 100 | 5 | 100:5 | C20 | 1.2B0.1 | 2 | 2 | 0.042 |
| 150 | 5 | 150:5 | C20 | 0.6B0.1 | 2 | 2 | 0.063 |
| 200 | 5 | 200:5 | C20 | 0.6B0.2 | 2 | 2 | 0.084 |
| 250 | 5 | 250:5 | C50 | 0.3B0.1 | 2 | 2 | 0.105 |
| 300 | 5 | 300:5 | C50 | 0.3B0.2 | 2 | 2 | 0.126 |
| 400 | 5 | 400:5 | C50 | 0.3B0.5 | 2 | 2 | 0.168 |
| 500 | 5 | 500:5 | C100 | 0.3B0.5 | 2 | 2 | 0.211 |
| 600 | 5 | 600:5 | C100 | 0.3B0.9 | 2 | 2 | 0.253 |
| 750 | 5 | 750:5 | C100 | 0.3B1.8 | 2 | 1.5 | 0.316 |
| 800 | 5 | 800:5 | C100 | 0.3B1.8 | 2 | 1.5 | 0.337 |
| 1000 | 5 | 1000:5 | C200 | 0.3B1.8 | 2 | 1.5 | 0.421 |
