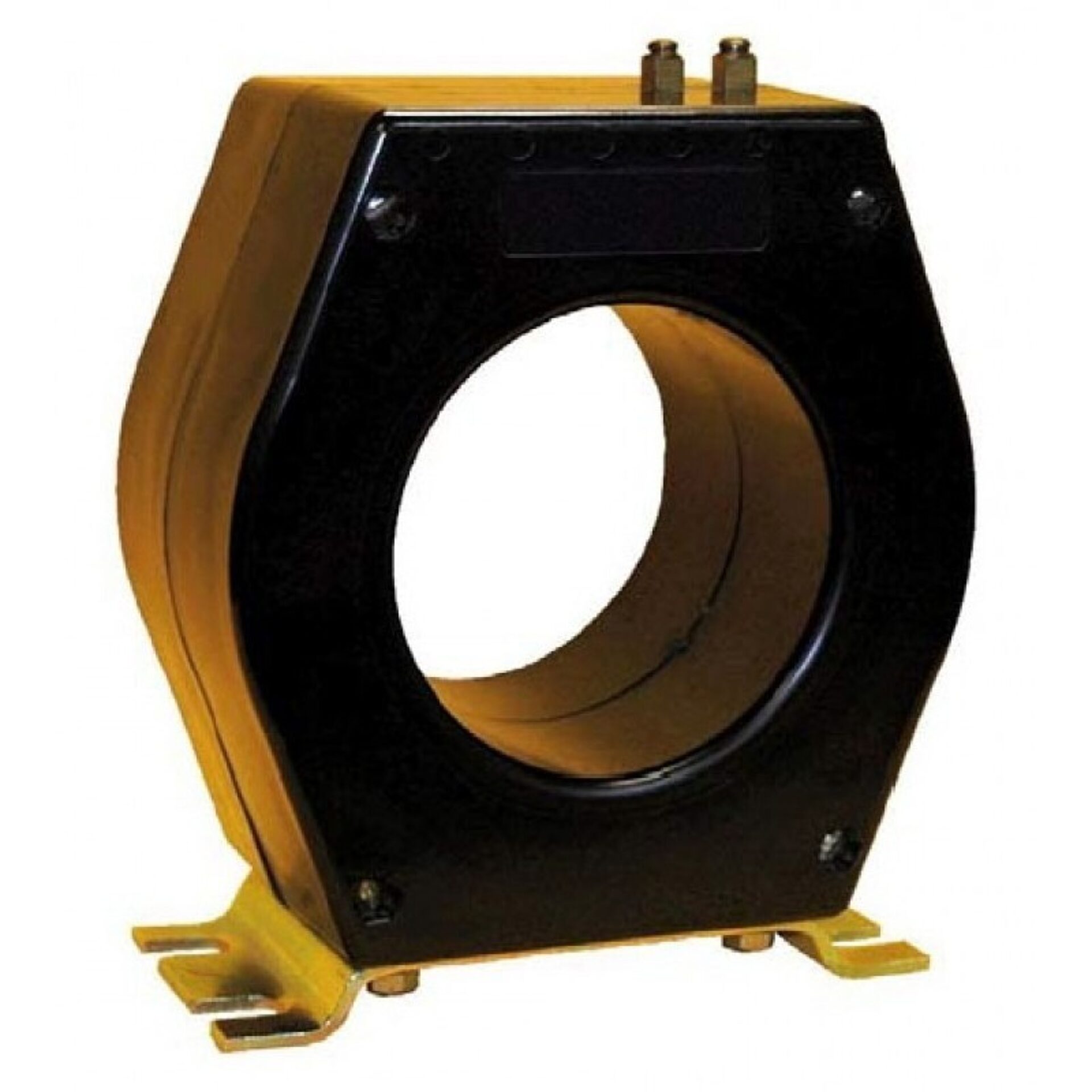

Model 204 Current Transformer
Introducing the Model 204 Current Transformer, a high-performance solution designed to meet the demanding needs of electrical measurement and monitoring applications., a global leader in electrical and electronic equipment, this current transformer exemplifies precision, reliability, and durability. Engineered with advanced technology, the Model 204 offers accurate current measurement across a wide range of electrical systems, ensuring optimal performance in both industrial and commercial environments.
Overview
Introducing the Model 204 Current Transformer, a high-performance solution designed to meet the demanding needs of electrical measurement and monitoring applications., a global leader in electrical and electronic equipment, this current transformer exemplifies precision, reliability, and durability. Engineered with advanced technology, the Model 204 offers accurate current measurement across a wide range of electrical systems, ensuring optimal performance in both industrial and commercial environments.
Produced by Spectrum Industries, a trusted name in electrical instrumentation, this current transformer is built to deliver consistent and precise readings, making it an essential tool for engineers, technicians, and facility managers. Its robust construction and high-quality components guarantee long-term durability, even in challenging conditions. The Model 204 is designed to be easy to install and maintain, providing a seamless integration into existing electrical systems.
Whether used for energy management, system troubleshooting, or safety monitoring, the Model 204 Current Transformer and Spectrum Industries offers unmatched accuracy and dependability. Its versatile design makes it suitable for various applications, from small-scale installations to large industrial complexes. With Spectrum Industries’ commitment to quality and innovation, this product ensures that your electrical measurements are precise, reliable, and efficient.
Request a Quote for Model 204 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 35 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 4.50 in
- Insulation Voltage Rating
- 600 V
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Ratio Options
- Multi-ratios available on request
- Excitation Data
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|---|
| 100 | 5 | 100:5 | C20 | 1.2B0.1 | 2 | 2 | 0.043 |
| 150 | 5 | 150:5 | C20 | 0.6B0.2 | 2 | 2 | 0.065 |
| 200 | 5 | 200:5 | C20 | 0.3B0.1 | 2 | 2 | 0.087 |
| 250 | 5 | 250:5 | C50 | 0.3B0.2 | 2 | 2 | 0.109 |
| 300 | 5 | 300:5 | C50 | 0.3B0.2 | 2 | 2 | 0.13 |
| 400 | 5 | 400:5 | C100 | 0.3B0.5 | 2 | 2 | 0.174 |
| 500 | 5 | 500:5 | C100 | 0.3B0.9 | 2 | 2 | 0.217 |
| 600 | 5 | 600:5 | C100 | 0.3B1.8 | 2 | 2 | 0.261 |
| 750 | 5 | 750:5 | C200 | 0.3B1.8 | 2 | 1.5 | 0.326 |
| 800 | 5 | 800:5 | C200 | 0.3B1.8 | 2 | 1.5 | 0.348 |
