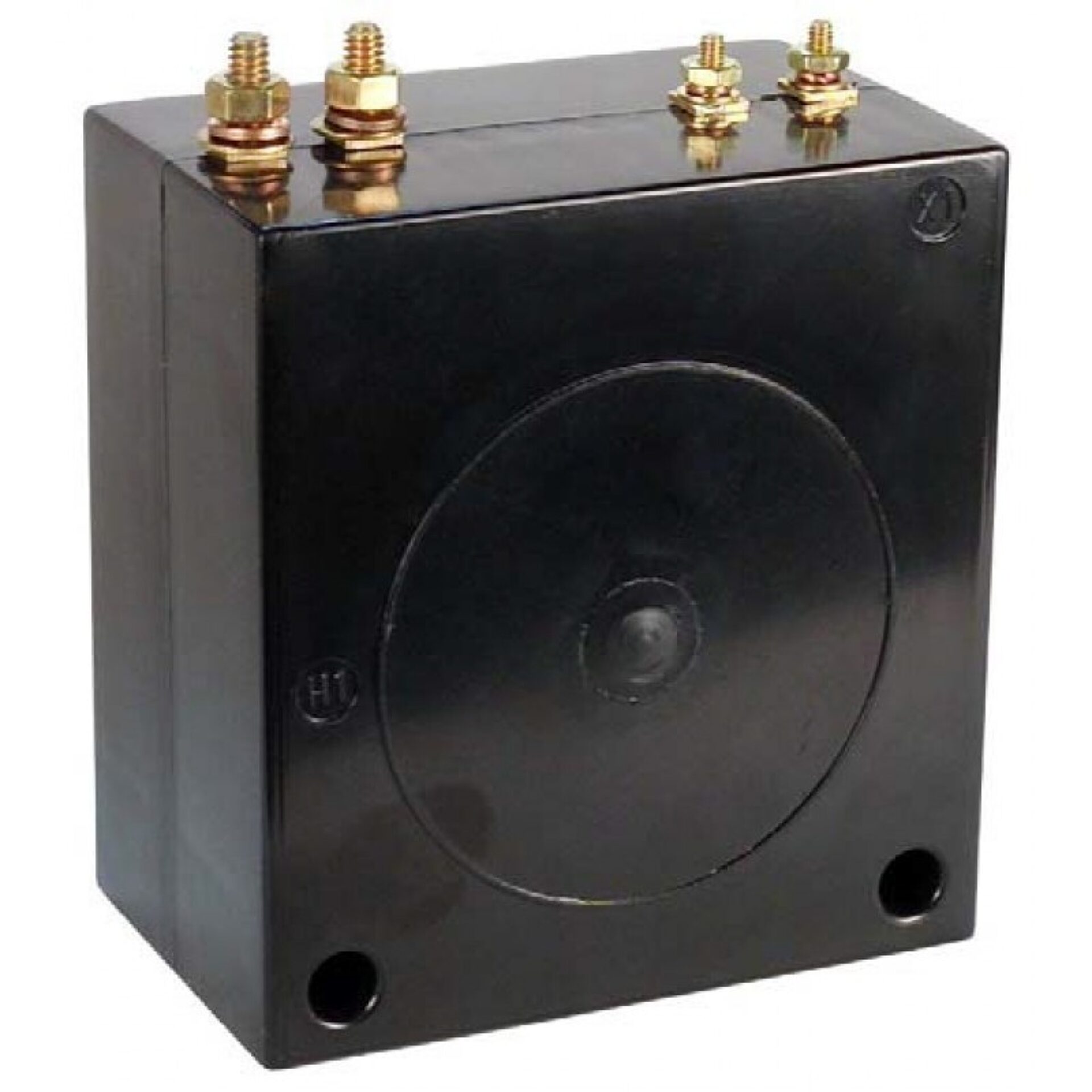

Model 20X Current Transformer
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 0.6 kV, BIL 10 kV full wave.
CONTINUOUS THERMAL CURRENT RATING FACTOR: 1.33 at 30oC. amb., 1.0 at 55oC. amb.
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut, for ratios up to 25:5 and 1/4-20 studs for higher ratios.
Order mounting bracket kit No. 0221B00541
Auxiliary Transformer
Approximate weight 8 lbs.
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
