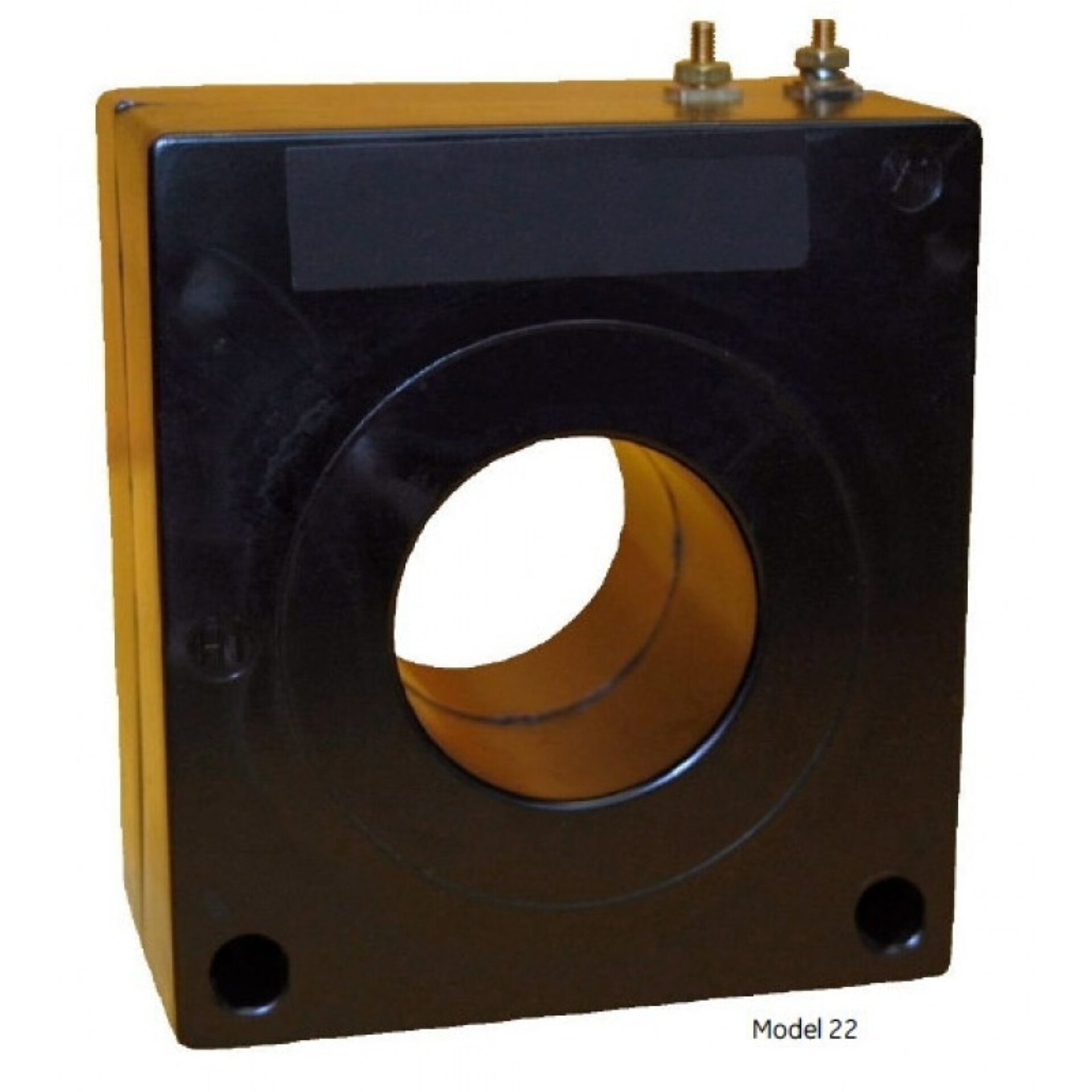

Model 22 Current Transformer
Introducing the Model 22 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for professionals seeking accurate current measurement in a variety of electrical applications. Whether used in power distribution, industrial automation, or testing environments, the Model 22 provides consistent and dependable performance, ensuring that your measurements are precise and trustworthy.
Overview
Introducing the Model 22 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for professionals seeking accurate current measurement in a variety of electrical applications. Whether used in power distribution, industrial automation, or testing environments, the Model 22 provides consistent and dependable performance, ensuring that your measurements are precise and trustworthy.
a globally recognized leader in electrical and electronic solutions, this current transformer benefits from advanced engineering and rigorous quality standards. Spectrum Industries, a trusted distributor, ensures that the Model 22 is readily available to meet the demands of engineers, technicians, and maintenance personnel. Its robust construction and compatibility with various measurement systems make it a versatile choice for both new installations and maintenance tasks.
The Model 22 Current Transformer features a compact and durable design, making it suitable for use in challenging environments. Its easy installation and straightforward operation allow users to quickly integrate it into their existing systems without hassle. Overall, this product exemplifies ’s commitment to excellence in electrical instrumentation, providing users with a reliable, accurate, and durable solution for current measurement needs.
Request a Quote for Model 22 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 9 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 1.63 in
- Insulation Voltage Rating
- 600 Volts
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
- Mounting Bracket
- Order mounting bracket kit 0221B00541 separately.
- Multi-Ratio Option
- Multi-ratios available upon request.
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|---|
| 100 | 5 | 100:5 | C10 | 0.6B0.2 | 2 | 2 | 0.06 |
| 150 | 5 | 150:5 | C10 | 0.3B0.2 | 2 | 2 | 0.09 |
| 200 | 5 | 200:5 | C20 | 0.3B0.5 | 2 | 1.5 | 0.12 |
| 250 | 5 | 250:5 | C20 | 0.3B0.5 | 1.5 | 1.5 | 0.15 |
| 300 | 5 | 300:5 | C20 | 0.3B0.9 | 1.5 | 1.33 | 0.18 |
| 400 | 5 | 400:5 | C20 | 0.3B1.8 | 1.5 | 1 | 0.241 |
| 500 | 5 | 500:5 | C50 | 0.3B1.8 | 1.5 | 1 | 0.301 |
