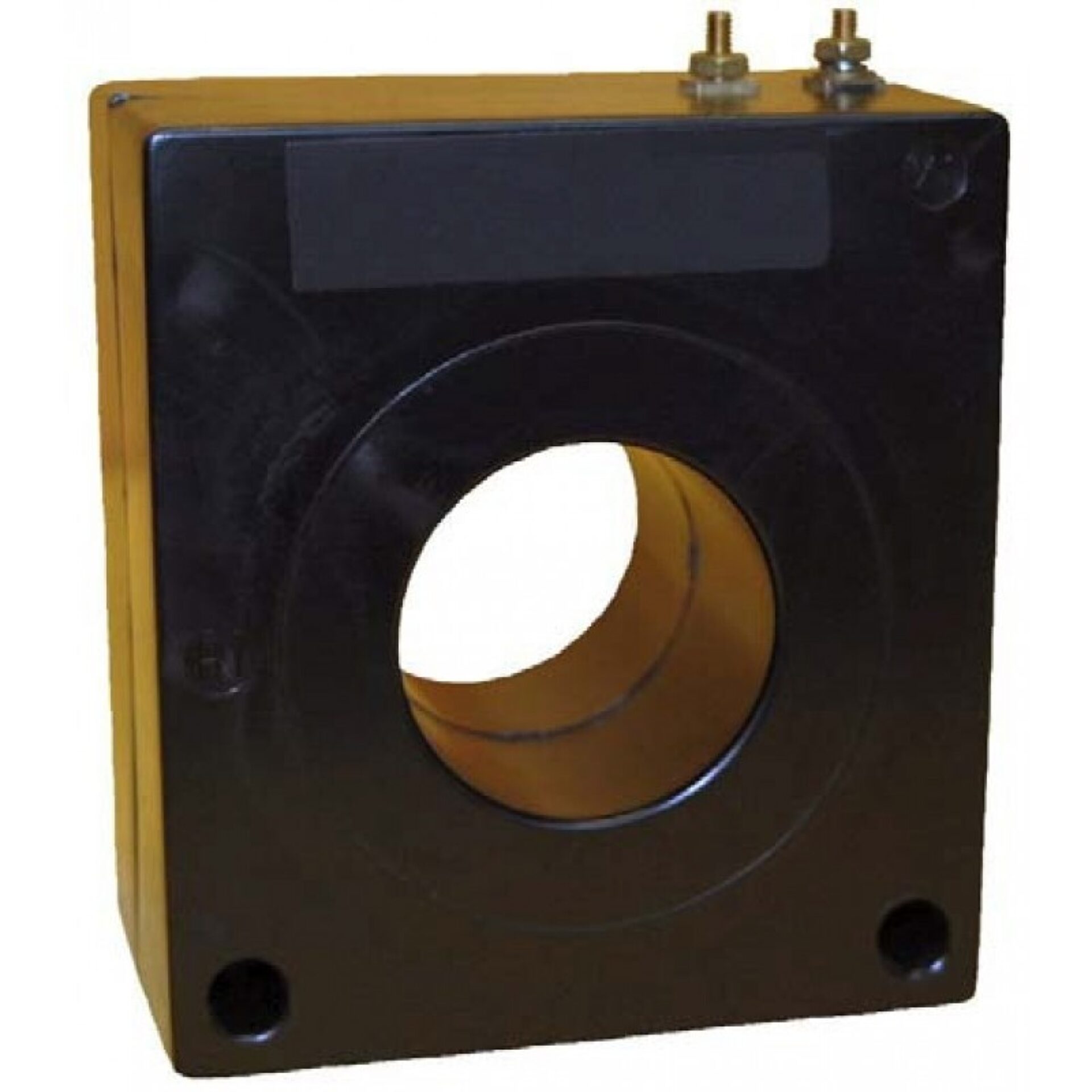

Model 22I Current Transformer
Introducing the Model 22I Current Transformer, a high-quality measurement device, now available through Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for professionals working in electrical measurement, testing, and protection applications. Whether you're conducting routine maintenance or performing detailed system analysis, the Model 22I offers accurate current measurement capabilities that ensure your work is both efficient and dependable.
Overview
Introducing the Model 22I Current Transformer, a high-quality measurement device, now available through Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for professionals working in electrical measurement, testing, and protection applications. Whether you're conducting routine maintenance or performing detailed system analysis, the Model 22I offers accurate current measurement capabilities that ensure your work is both efficient and dependable.
a global leader in electrical and electronic equipment, the Model 22I embodies the company's commitment to innovation and quality. Its robust construction and precise calibration make it suitable for a wide range of industrial and commercial environments. The transformer is built to handle demanding conditions while providing consistent, accurate readings that are critical for effective system monitoring and troubleshooting.
Spectrum Industries distributes this product, ensuring it reaches users who value quality and performance. The Model 22I Current Transformer features a compact design, ease of installation, and compatibility with various measurement systems. Whether used in power distribution, control systems, or testing laboratories, this transformer delivers dependable performance, helping technicians and engineers maintain safe and efficient electrical operations. With our trusted reputation and Spectrum Industries' dedicated support, the Model 22I is an excellent choice for anyone seeking a reliable current measurement solution.
Request a Quote for Model 22I Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 0.7 kV
- Weight
- 8.82 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Level
- 0.72 kV
- Window Diameter
- 41.4 mm
- Terminals
- Brass studs ASA 8-32 with one flatwasher, lockwasher, and regular nut
- Mounting Bracket Kit
- 0221B00541 (order separately)
- Multi-ratio / Excitation Data
- Available upon request
- Rating Standard
- IEC 60044-1 protection/measuring classes at 50 Hz
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
