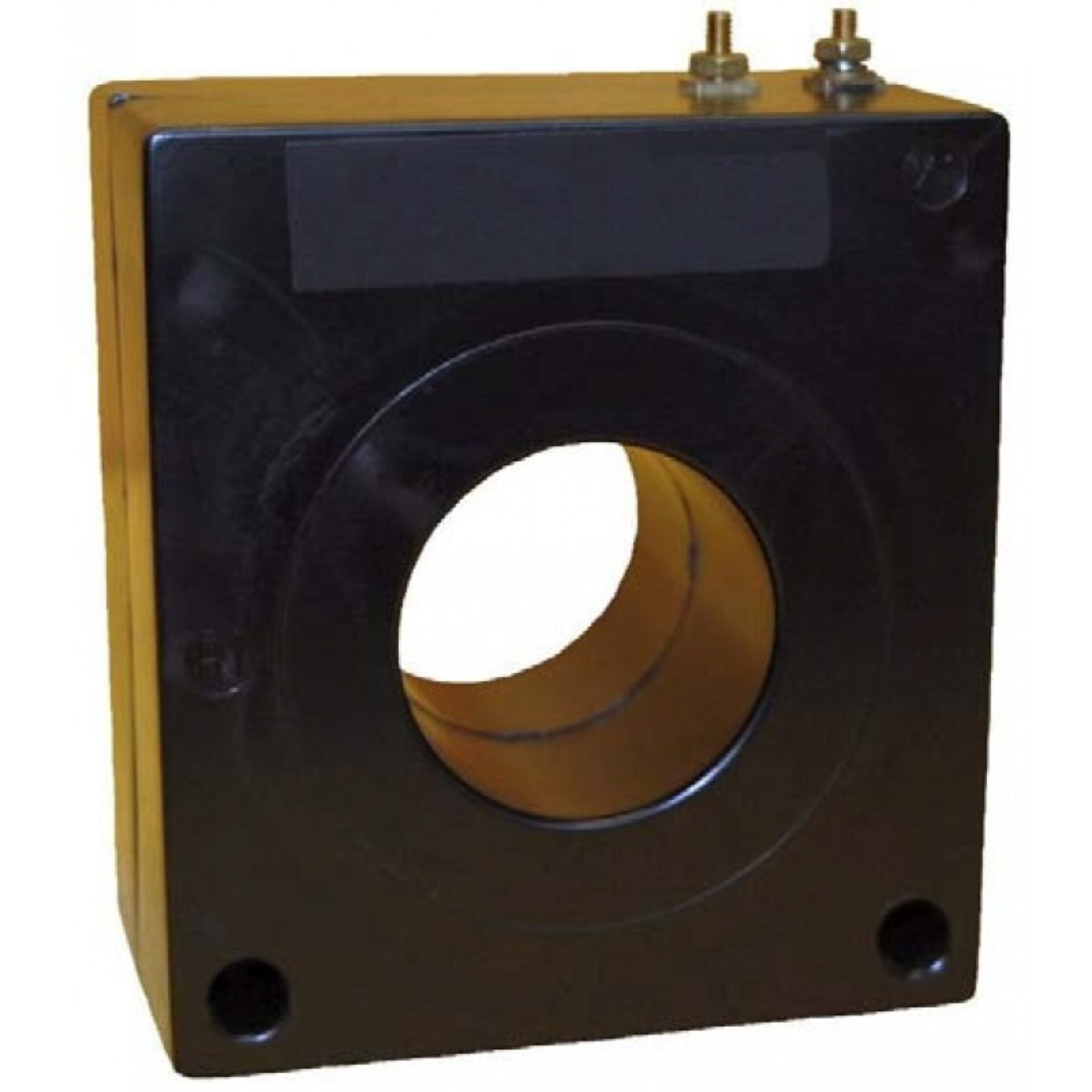

Model 23I Current Transformer
Introducing the Model 23I Current Transformer, a high-performance solution, brought to you by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate current measurement and monitoring in various electrical applications. Whether you're involved in industrial automation, power distribution, or electrical testing, the Model 23I offers the robustness and accuracy needed to ensure your systems operate efficiently and safely.
Overview
Introducing the Model 23I Current Transformer, a high-performance solution, brought to you by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate current measurement and monitoring in various electrical applications. Whether you're involved in industrial automation, power distribution, or electrical testing, the Model 23I offers the robustness and accuracy needed to ensure your systems operate efficiently and safely.
a globally recognized leader in electrical and electronic manufacturing, this current transformer benefits from decades of expertise and innovation. The Model 23I is crafted with high-quality materials and advanced engineering techniques, resulting in a device that delivers consistent performance under demanding conditions. Its compact design allows for easy installation in a variety of environments, while its precise calibration ensures dependable readings crucial for maintaining system integrity and safety.
Spectrum Industries is proud to distribute this exceptional product, ensuring that clients receive top-tier quality and support. The Model 23I Current Transformer is ideal for applications requiring precise current measurement, such as metering, protection relays, and control systems. With its durable construction and trusted brand backing, this current transformer is a reliable choice for professionals seeking accuracy and durability in their electrical instrumentation.
Request a Quote for Model 23I Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 0.7 kV
- Weight
- 8.6 lbs
- Application
- Metering, Protection
- Standards
- IEC 44-1
- Window Diameter
- 50.8 mm
- Insulation Level
- 0.72 kV
- Terminals
- Brass studs ASA 8-32 with one flatwasher, lockwasher, and regular nut
- Mounting Bracket Kit
- 0221B00541 (order separately)
- Multi-Ratio Availability
- Available upon request
- Excitation Data
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
