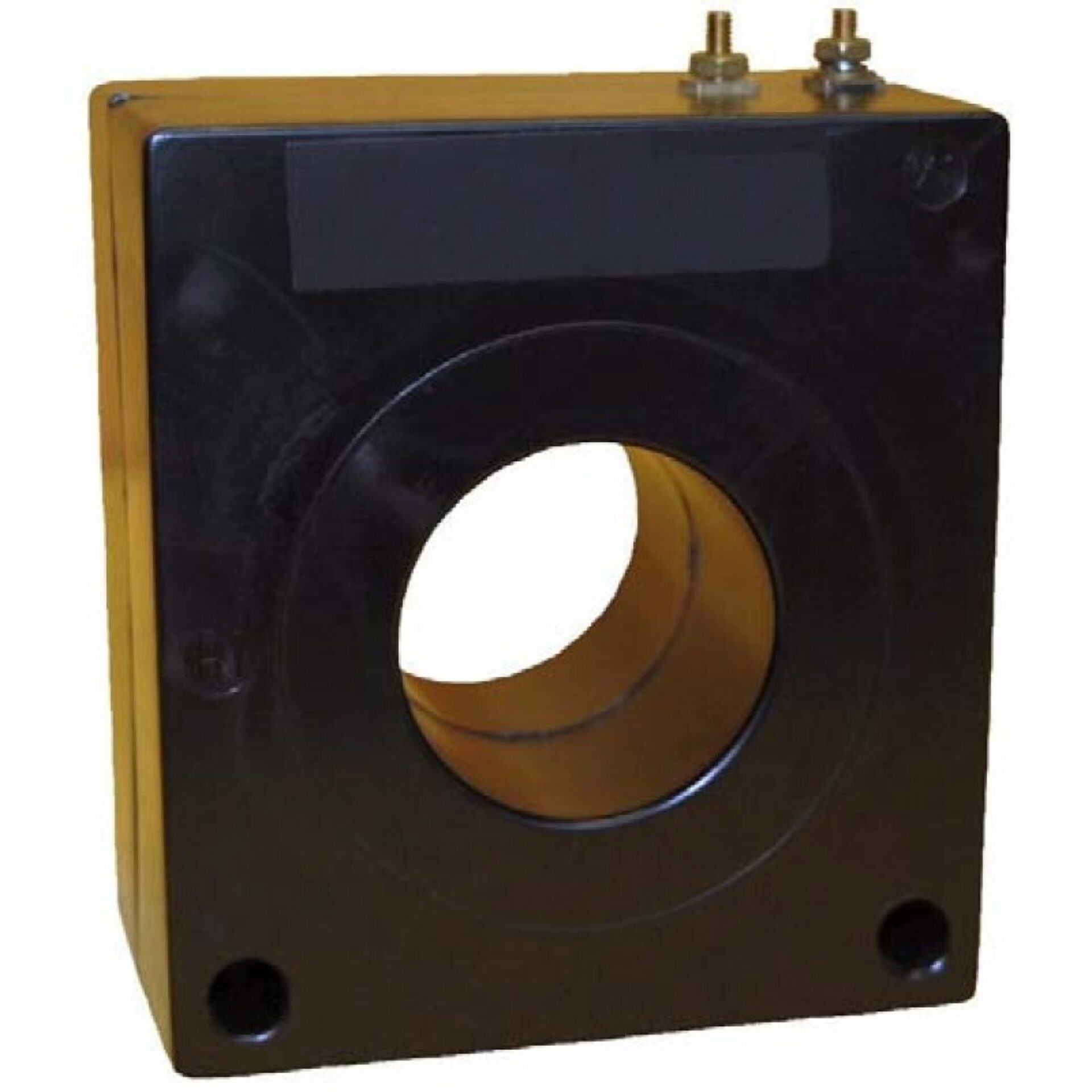

Model 24I Current Transformer
Introducing the Model 24I Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer is engineered to deliver precise current readings essential for accurate system analysis, fault detection, and energy management. Its robust construction and advanced design ensure durability and consistent performance in various industrial and commercial environments.
Overview
Introducing the Model 24I Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer is engineered to deliver precise current readings essential for accurate system analysis, fault detection, and energy management. Its robust construction and advanced design ensure durability and consistent performance in various industrial and commercial environments.
The Model 24I Current Transformer features a compact and easy-to-install design, making it suitable for a wide range of electrical systems. It is crafted with precision components to provide accurate current transformation ratios, enabling technicians and engineers to obtain reliable data for system optimization and safety assessments. Whether used in power distribution, industrial automation, or energy metering, this transformer offers dependable performance that helps improve operational efficiency and safety.
a global leader in electrical equipment manufacturing, this current transformer benefits from decades of innovation and expertise. Spectrum Industries ensures that each unit meets strict quality standards, providing customers with a product that combines advanced technology with practical functionality. The Model 24I Current Transformer is an excellent choice for professionals seeking a durable, accurate, and easy-to-use device for their electrical measurement needs.
Request a Quote for Model 24I Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 0.7 kV
- Weight
- 6.61 lbs
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 63.5 mm
- Insulation Level
- 0.72 kV
- Terminals
- Brass studs ASA 8-32 with flatwasher, lockwasher, and regular nut
- IEC Standard
- IEC 60044-1
- Mounting Bracket
- Optional mounting bracket kit 0221B00541, ordered separately
- Multi-Ratio / Excitation Data
- Multi-ratios and excitation data available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
| 1200 | 5 | 1200:5 |
| 1500 | 5 | 1500:5 |
