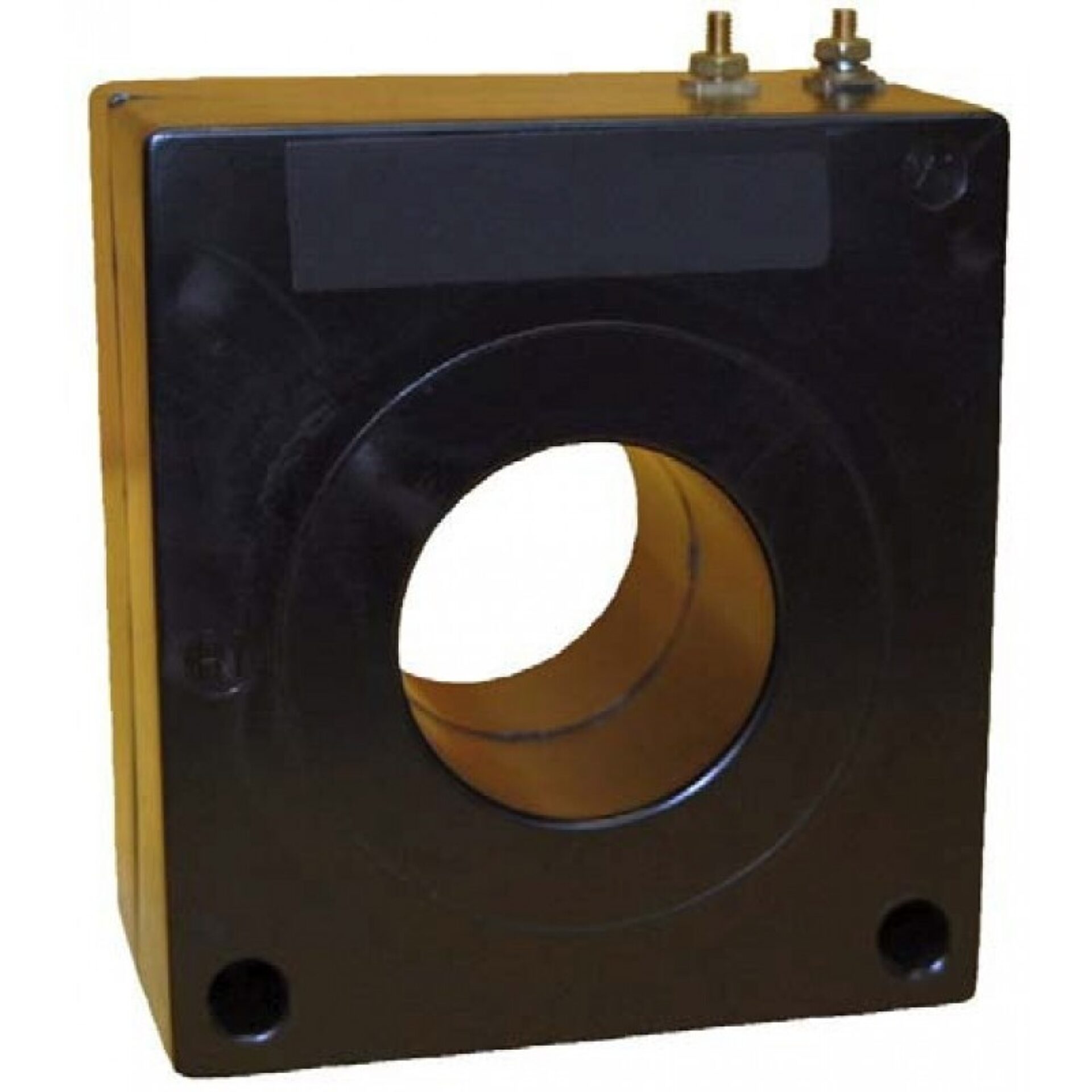

Model 25I Current Transformer
Introducing the Model 25i Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this current transformer exemplifies precision engineering and durability. It is engineered to provide accurate current measurements across a wide range of electrical systems, making it an essential component for utilities, industrial facilities, and electrical contractors.
Overview
Introducing the Model 25i Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this current transformer exemplifies precision engineering and durability. It is engineered to provide accurate current measurements across a wide range of electrical systems, making it an essential component for utilities, industrial facilities, and electrical contractors.
The Model 25i Current Transformer is built with robust construction and advanced design features that ensure long-term performance and stability. Its compact form factor allows for easy installation in various settings, while its high accuracy ensures precise readings vital for system analysis, fault detection, and energy management. Whether used in new installations or as a replacement for aging equipment, this transformer offers dependable operation and consistent results.
a global leader in electrical equipment and technology, the Model 25i benefits from decades of innovation and expertise. Spectrum Industries proudly offers this product to provide customers with a trusted solution that combines quality, reliability, and value. Perfect for integration into complex electrical systems, the Model 25i Current Transformer is an excellent choice for professionals seeking dependable current measurement solutions that stand the test of time.
Request a Quote for Model 25I Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Weight
- 5.51 lbs
- Application
- Metering, Protection
- Standards
- IEC 44-1
- Insulation Level
- 0.72 kV
- Window Diameter
- 79.5 mm
- Terminals
- Brass studs, ASA 8-32, with flatwasher, lockwasher, and regular nut
- Multi-Ratio Option
- Available upon request
- Excitation Data
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
| 1200 | 5 | 1200:5 |
| 1500 | 5 | 1500:5 |
| 1600 | 5 | 1600:5 |
