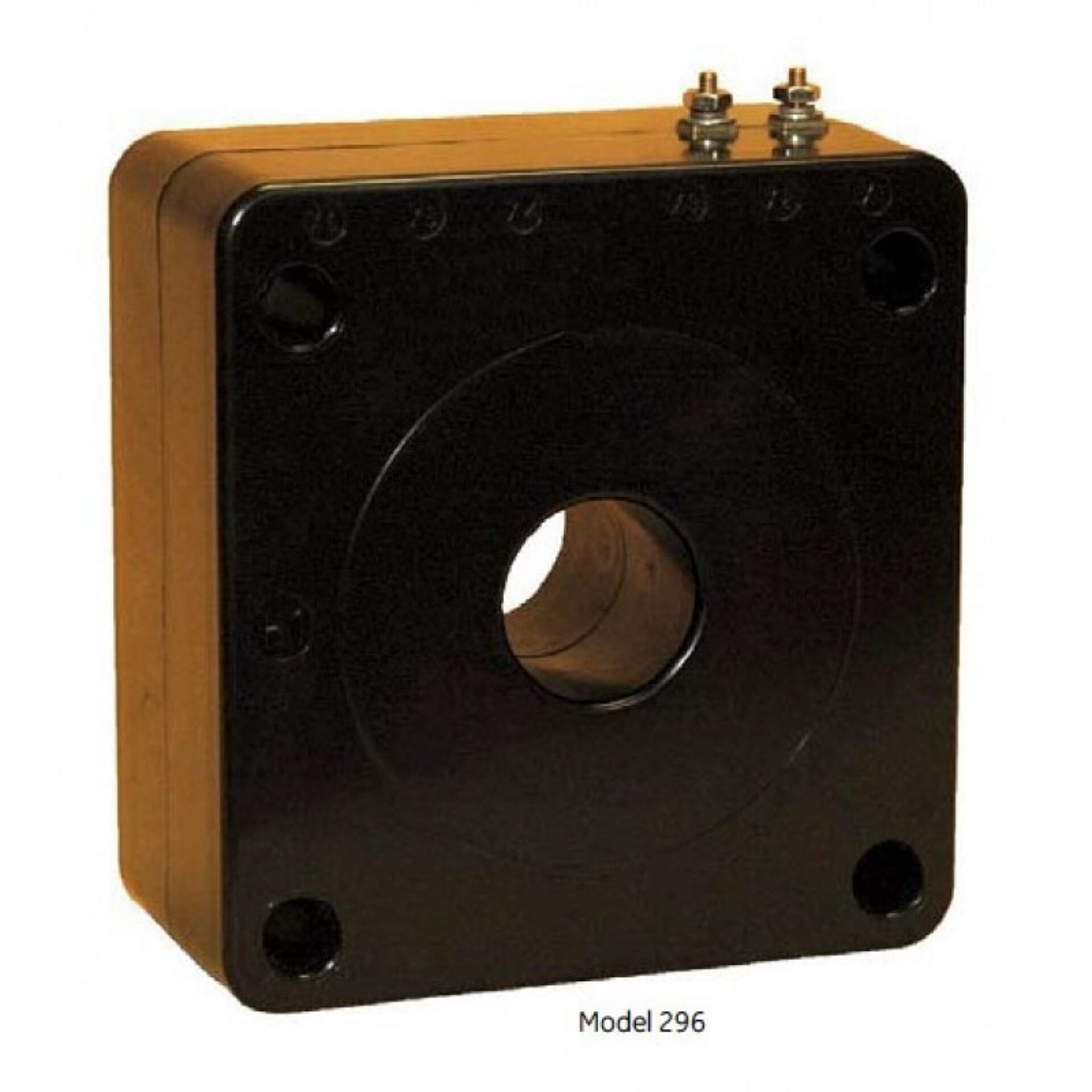

Model 296 Current Transformer
Introducing the Model 296 Current Transformer, a precision-engineered product proudly and distributed by Spectrum Industries. Designed to provide accurate current measurement in a variety of electrical applications, this current transformer is an essential component for engineers, technicians, and electrical professionals seeking reliable performance and durability.
Overview
Introducing the Model 296 Current Transformer, a precision-engineered product proudly and distributed by Spectrum Industries. Designed to provide accurate current measurement in a variety of electrical applications, this current transformer is an essential component for engineers, technicians, and electrical professionals seeking reliable performance and durability.
The Model 296 is built with high-quality materials and advanced manufacturing techniques, ensuring consistent accuracy and long-term stability. Its robust construction makes it suitable for use in demanding environments, whether in industrial settings, power distribution systems, or testing laboratories. The transformer’s design emphasizes safety and ease of installation, allowing users to seamlessly integrate it into existing systems without hassle.
a global leader in electrical and electronic equipment, the Model 296 benefits from decades of innovation and expertise. Spectrum Industries, as the trusted distributor, ensures that customers receive genuine, high-performance products backed by comprehensive support. Whether you need precise current measurement for system monitoring, fault detection, or calibration purposes, the Model 296 Current Transformer offers a dependable solution that meets rigorous standards.
With its combination of quality, reliability, and ease of use, the Model 296 by stands out as a top choice for professionals seeking a dependable current transformer. Trust Spectrum Industries to deliver products that help you achieve accurate results and maintain the safety and efficiency of your electrical systems.
Request a Quote for Model 296 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 18 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 1.50"
- Insulation Voltage Rating
- 600 Volts
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Mounting Bracket Kit
- 0221B00259 (order separately)
- Multi-Ratio Option
- Multi-ratios available on request
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|---|
| 50 | 5 | 50:5 | C10 | 1.2B0.2 | 2 | 2 | 0.018 |
| 75 | 5 | 75:5 | C10 | 0.6B0.2 | 2 | 2 | 0.027 |
| 100 | 5 | 100:5 | C20 | 0.6B0.5 | 2 | 2 | 0.035 |
| 150 | 5 | 150:5 | C20 | 0.3B0.5 | 2 | 2 | 0.053 |
| 200 | 5 | 200:5 | C20 | 0.3B0.5 | 2 | 2 | 0.071 |
| 250 | 5 | 250:5 | C50 | 0.3B1.8 | 2 | 2 | 0.121 |
| 300 | 5 | 300:5 | C50 | 0.3B1.8 | 2 | 1.5 | 0.168 |
| 400 | 5 | 400:5 | C100 | 0.3B1.8 | 2 | 1.5 | 0.224 |
| 500 | 5 | 500:5 | C50 | 0.3B1.8 | 1.5 | 1.5 | 0.249 |
| 600 | 5 | 600:5 | C100 | 0.3B1.8 | 1.5 | 1.33 | 0.298 |
| 750 | 5 | 750:5 | C100 | 0.3B1.8 | 1.5 | 1 | 0.373 |
| 800 | 5 | 800:5 | C100 | 0.3B1.8 | 1.5 | 1 | 0.398 |
| 1000 | 5 | 1000:5 | C100 | 0.3B1.8 | 1.33 | 1 | 0.449 |
