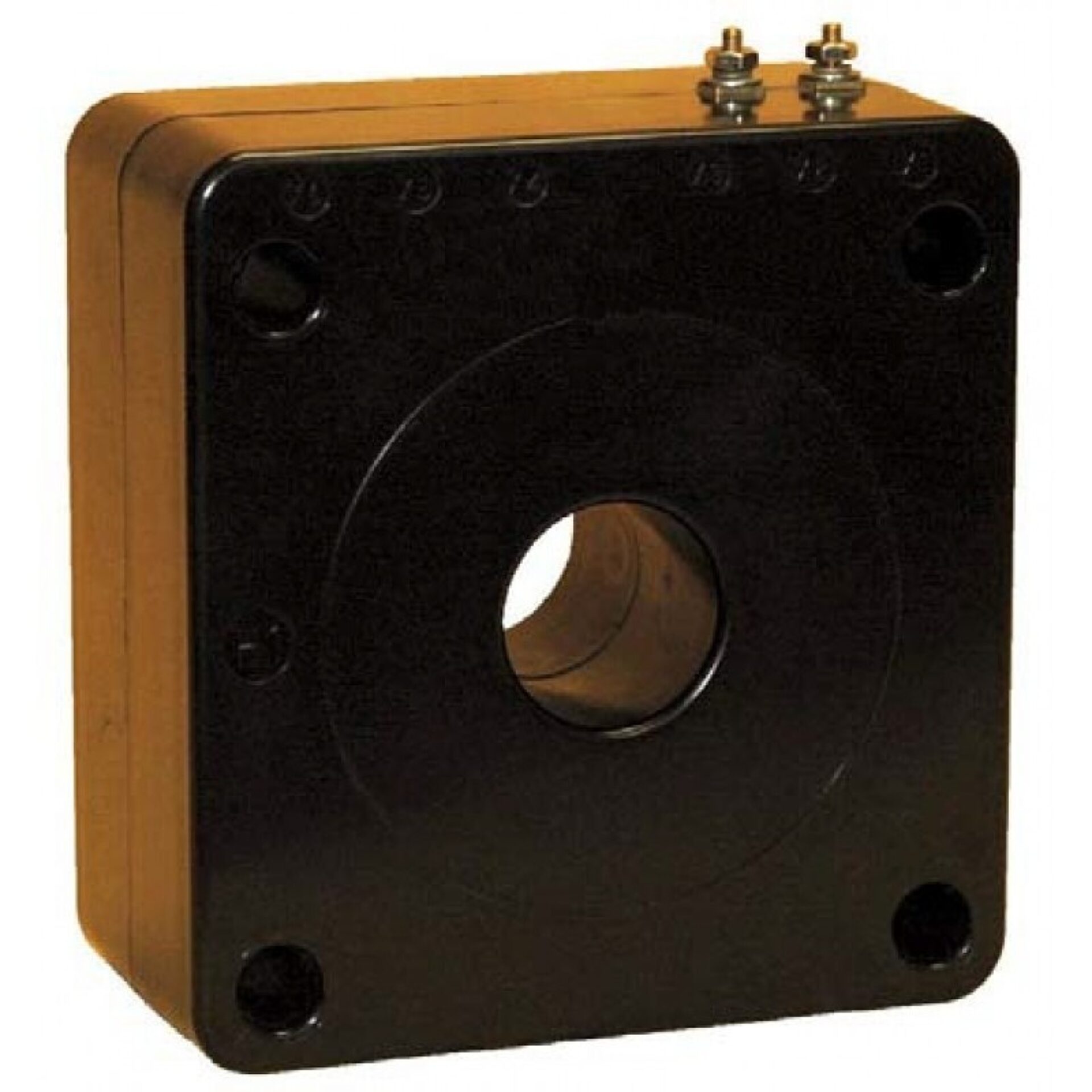

Model 296I Current Transformer
Introducing the Model 296i Current Transformer, a precision instrument and distributed by Spectrum Industries. Designed to meet the rigorous demands of electrical measurement and testing, this current transformer offers exceptional accuracy and reliability for a wide range of industrial and commercial applications. Whether used for monitoring power systems, conducting detailed electrical analysis, or ensuring safety in high-voltage environments, the Model 296i provides dependable performance that professionals can trust.
Overview
Introducing the Model 296i Current Transformer, a precision instrument and distributed by Spectrum Industries. Designed to meet the rigorous demands of electrical measurement and testing, this current transformer offers exceptional accuracy and reliability for a wide range of industrial and commercial applications. Whether used for monitoring power systems, conducting detailed electrical analysis, or ensuring safety in high-voltage environments, the Model 296i provides dependable performance that professionals can trust.
a global leader in electrical and electronic equipment, this current transformer combines advanced engineering with durable construction. Its robust design ensures longevity and consistent operation even in challenging conditions. The Model 296i is engineered to deliver precise current measurements, making it an essential tool for engineers, technicians, and maintenance personnel alike. With its straightforward installation and user-friendly features, it simplifies complex measurement tasks, saving time and reducing errors.
Spectrum Industries, a trusted distributor of high-quality electrical testing equipment, offers the Model 296i Current Transformer as part of their extensive product lineup. This collaboration ensures that customers receive a product that embodies the highest standards of quality and performance. Whether in testing laboratories or field environments, the Model 296i stands out as a reliable choice for accurate current measurement, backed by ’s reputation for excellence and Spectrum Industries’ commitment to customer satisfaction.
Request a Quote for Model 296I Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 0.7 kV
- Weight
- 18.08 lbs
- Application
- Metering, Protection
- Standards
- IEC 44-1
- Window Diameter
- 38.1 mm
- Insulation Level
- 0.72 kV
- Terminals
- Brass studs ASA 8-32 with one flatwasher, lockwasher and regular nut
- Mounting Bracket
- Optional mounting bracket kit 0221B00259, ordered separately
- Multi-Ratio Availability
- Multi-ratios available on request
- Excitation Data
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 75 | 5 | 75:5 |
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
