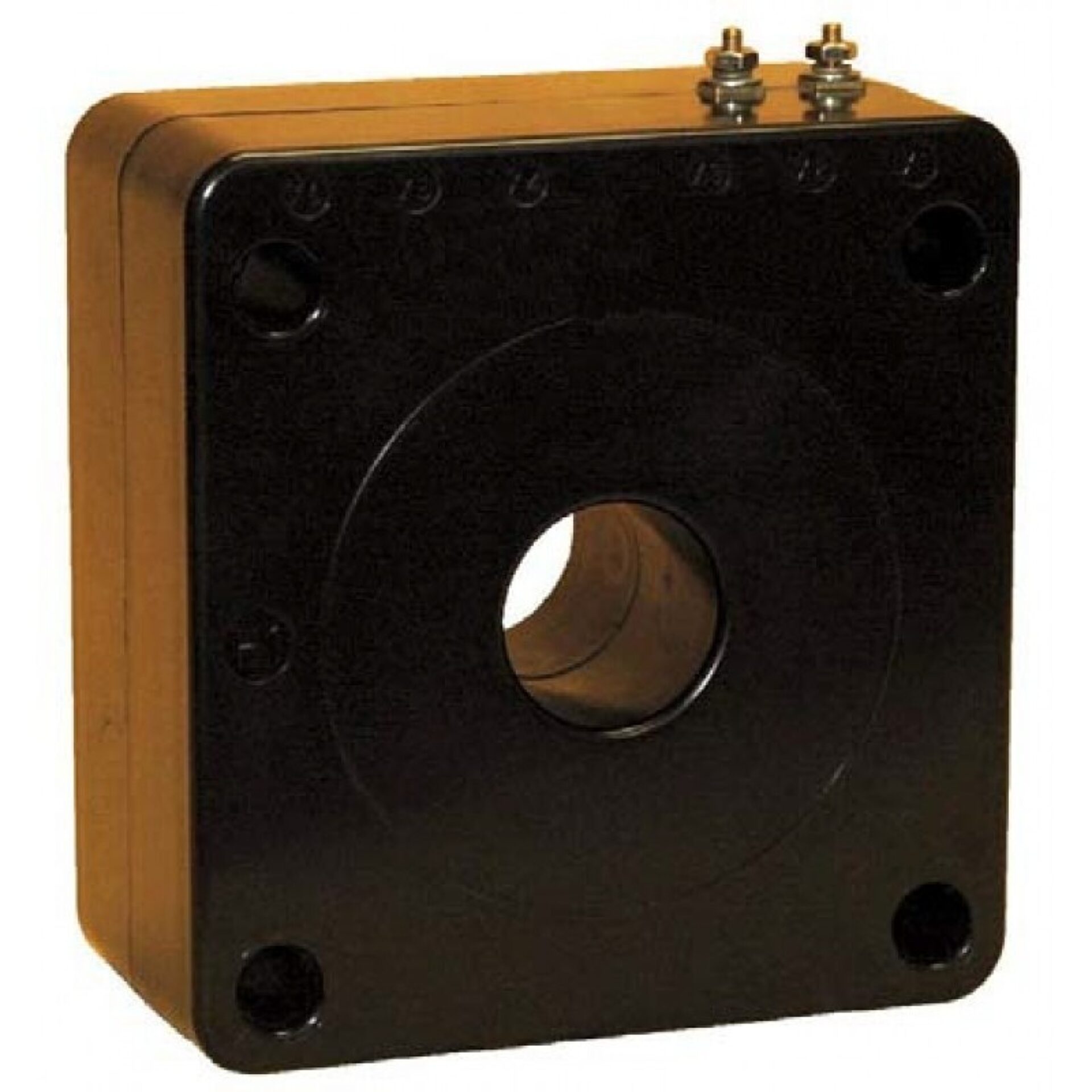

Model 297I Current Transformer
Introducing the Model 297i Current Transformer, a high-performance solution, manufactured by Spectrum Industries. Designed to provide precise current measurement and reliable performance, this current transformer is an essential component for electrical testing, monitoring, and instrumentation applications. Whether you're working in industrial environments, utility systems, or research laboratories, the Model 297i offers the accuracy and durability needed to ensure optimal system operation.
Overview
Introducing the Model 297i Current Transformer, a high-performance solution, manufactured by Spectrum Industries. Designed to provide precise current measurement and reliable performance, this current transformer is an essential component for electrical testing, monitoring, and instrumentation applications. Whether you're working in industrial environments, utility systems, or research laboratories, the Model 297i offers the accuracy and durability needed to ensure optimal system operation.
Produced by Spectrum Industries, a trusted name in electrical instrumentation, this current transformer features robust construction and advanced design features that make it suitable for demanding conditions. Its compact form factor allows for easy installation in various setups, while its high-quality materials ensure longevity and consistent performance over time. The Model 297i is capable of handling a wide range of current levels, making it versatile for different measurement needs.
As a product, a global leader in electrical and electronic manufacturing, the Model 297i benefits from cutting-edge engineering and rigorous quality standards. This ensures that users receive a dependable, precise, and durable current transformer that meets industry standards. Whether for new installations or maintenance of existing systems, the Model 297i from Spectrum Industries is a reliable choice for professionals seeking accuracy and reliability in current measurement.
Request a Quote for Model 297I Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 0.7 kV
- Weight
- 15 lbs
- Application
- Metering, Protection
- Standards
- IEC 44-1
- Insulation Level
- 0.72 kV
- Window Diameter
- 57.2 mm
- Terminals
- Brass studs ASA 8-32 with one flatwasher, lockwasher and regular nut
- Mounting Bracket Kit
- 0221B00259 (order separately)
- Multi-Ratio Option
- Multi-ratios available on request
- Excitation Data
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 75 | 5 | 75:5 |
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
