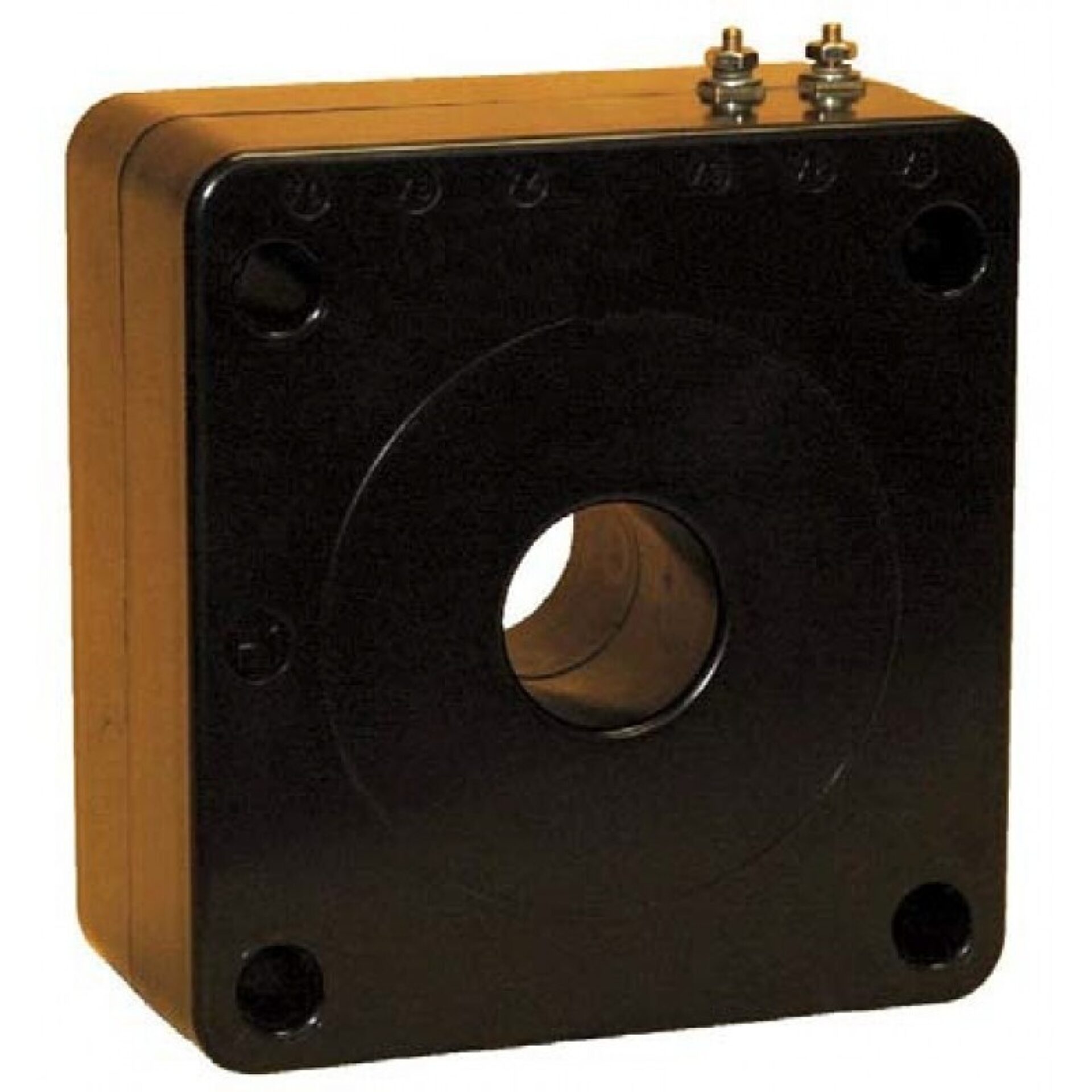

Model 298I Current Transformer
Introducing the Model 298i Current Transformer, a high-precision measurement device, distributed by Spectrum Industries. Designed to meet the rigorous demands of electrical testing and power system analysis, this current transformer offers exceptional accuracy and reliability for a wide range of industrial and commercial applications. Whether you're conducting routine maintenance, troubleshooting electrical systems, or performing detailed load analysis, the Model 298i provides the dependable performance necessary to ensure precise measurements and operational safety.
Overview
Introducing the Model 298i Current Transformer, a high-precision measurement device, distributed by Spectrum Industries. Designed to meet the rigorous demands of electrical testing and power system analysis, this current transformer offers exceptional accuracy and reliability for a wide range of industrial and commercial applications. Whether you're conducting routine maintenance, troubleshooting electrical systems, or performing detailed load analysis, the Model 298i provides the dependable performance necessary to ensure precise measurements and operational safety.
Constructed with advanced engineering and quality materials, the Model 298i features a robust design that ensures durability and long-term stability even in challenging environments. Its compact form factor makes it easy to install in various settings, while its high accuracy ratings enable detailed current measurement across a broad spectrum of electrical loads. This transformer is ideal for use in power plants, manufacturing facilities, and testing laboratories where precise current readings are critical for system optimization and safety compliance.
a globally recognized leader in electrical equipment manufacturing, the Model 298i embodies the company's commitment to innovation and quality. Spectrum Industries proudly distributes this reliable current transformer, ensuring that customers receive a product that meets the highest standards of performance and dependability. Whether for new installations or upgrades to existing systems, the Model 298i Current Transformer is a trusted choice for professionals seeking accuracy and durability in their electrical measurements.
Request a Quote for Model 298I Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 0.7 kV
- Weight
- 11.9 lbs
- Application
- Metering, Protection
- Standards
- IEC 44-1
- Window Diameter
- 76.2 mm
- Insulation Level
- 0.72 kV
- Terminals
- Brass studs ASA 8-32 with one flatwasher, lockwasher and regular nut
- Mounting Bracket Kit
- 0221B00259, ordered separately
- Multi-ratio
- Available on request
- Excitation Data
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 75 | 5 | 75:5 |
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
