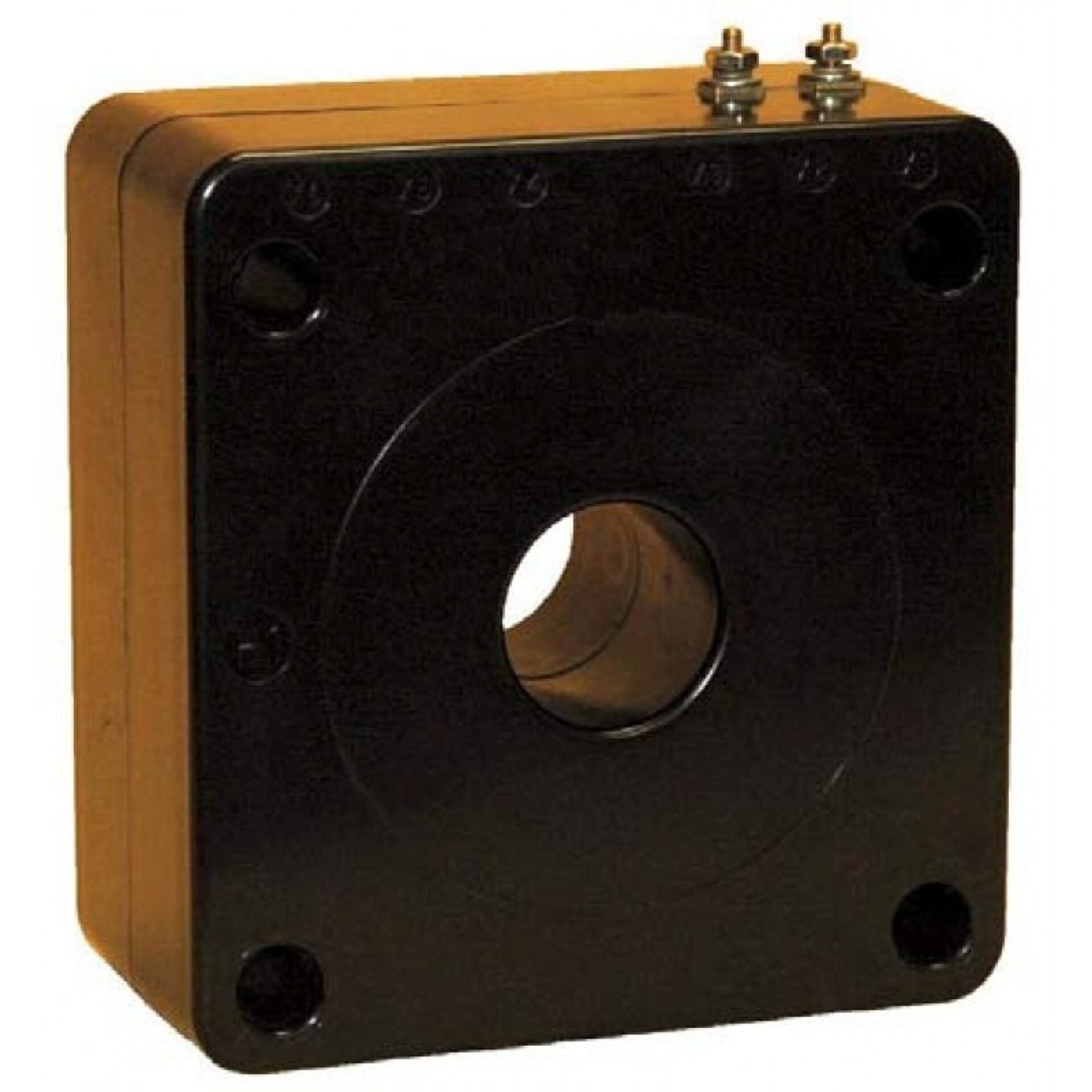

Model 299I Current Transformer
Introducing the Model 299I Current Transformer, a precision-engineered solution, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical measurement and protection applications, this current transformer offers exceptional accuracy and reliability. Whether you're involved in power distribution, industrial automation, or testing environments, the Model 299I provides a dependable means of monitoring current flow with minimal distortion.
Overview
Introducing the Model 299I Current Transformer, a precision-engineered solution, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical measurement and protection applications, this current transformer offers exceptional accuracy and reliability. Whether you're involved in power distribution, industrial automation, or testing environments, the Model 299I provides a dependable means of monitoring current flow with minimal distortion.
a global leader in electrical and electronic equipment, this current transformer benefits from decades of technological innovation and rigorous quality standards. The Model 299I features a robust construction that ensures durability and consistent performance even in challenging conditions. Its compact design makes it easy to install in various settings, providing flexibility without compromising on precision.
Spectrum Industries is proud to offer this high-quality product, emphasizing our commitment to delivering reliable and advanced electrical measurement tools. The Model 299I is ideal for applications requiring accurate current measurement, such as calibration, testing, or protective relay systems. With its proven performance and ’s trusted engineering, this current transformer is a valuable addition to any electrical testing or monitoring setup. Trust Spectrum Industries to provide products that meet the highest standards of quality and performance.
Request a Quote for Model 299I Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 0.7 kV
- Weight
- 9.92 lbs
- Application
- Metering, Protection
- Standards
- IEC 44-1
- Window diameter
- 85.9 mm
- Insulation level (Um)
- 0.72 kV
- Terminals
- Brass studs ASA 8-32 with one flatwasher, lockwasher and regular nut
- Mounting bracket
- Mounting bracket kit 0221B00259 ordered separately
- Options available on request
- Multi-ratios available on request; excitation data available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 75 | 5 | 75:5 |
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
