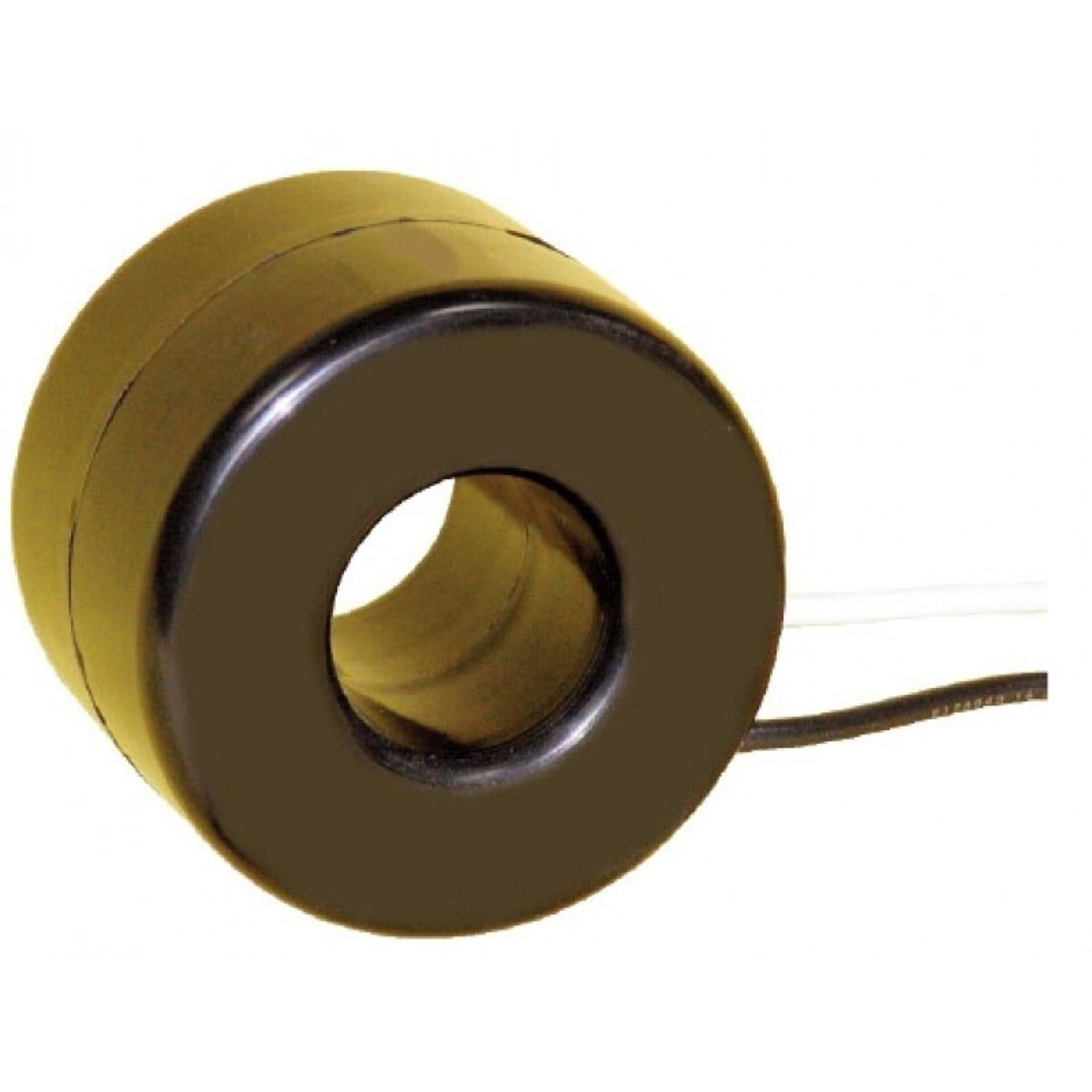

Model 2DARL Current Transformer
Model 2DARL Current Transformer - Transformers
APPLICATION: Ammeters , wattmeters and cross current compensation.
RATING FACTOR: 1.0 @ 30oC
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Flexible leads are UL 1015, 105oC, CSA approved, #16 AWG, 24” long. Non-standard, lead length can be specified.
Approximate weight 0.9 lbs.
Window Diameter 1.00”
Overview
APPLICATION: Ammeters , wattmeters and cross current compensation.
RATING FACTOR: 1.0 @ 30oC
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Flexible leads are UL 1015, 105oC, CSA approved, #16 AWG, 24” long. Non-standard, lead length can be specified.
Approximate weight 0.9 lbs.
Window Diameter 1.00”
Request a Quote for Model 2DARL Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 0.9 lbs
- Application
- Metering
- Standards
- UL, CSA
- Insulation Level
- 600 V
- Rating Factor
- 1.0
- Window Diameter
- 1.00 in
- Lead Length
- 24 in
- Typical Applications
- Ammeters, wattmeters and cross current compensation
Maximum 1000 characters
Specification Table
| Primary A | Secondary A | Ratio (display) | Secondary Resistance |
|---|---|---|---|
| 50 | 5 | 50:5 | 0.008 |
| 60 | 5 | 60:5 | 0.011 |
| 75 | 5 | 75:5 | 0.015 |
| 80 | 5 | 80:5 | 0.016 |
| 100 | 5 | 100:5 | 0.018 |
| 120 | 5 | 120:5 | 0.022 |
| 125 | 5 | 125:5 | 0.028 |
| 150 | 5 | 150:5 | 0.031 |
| 200 | 5 | 200:5 | 0.047 |
| 250 | 5 | 250:5 | 0.074 |
| 300 | 5 | 300:5 | 0.089 |
