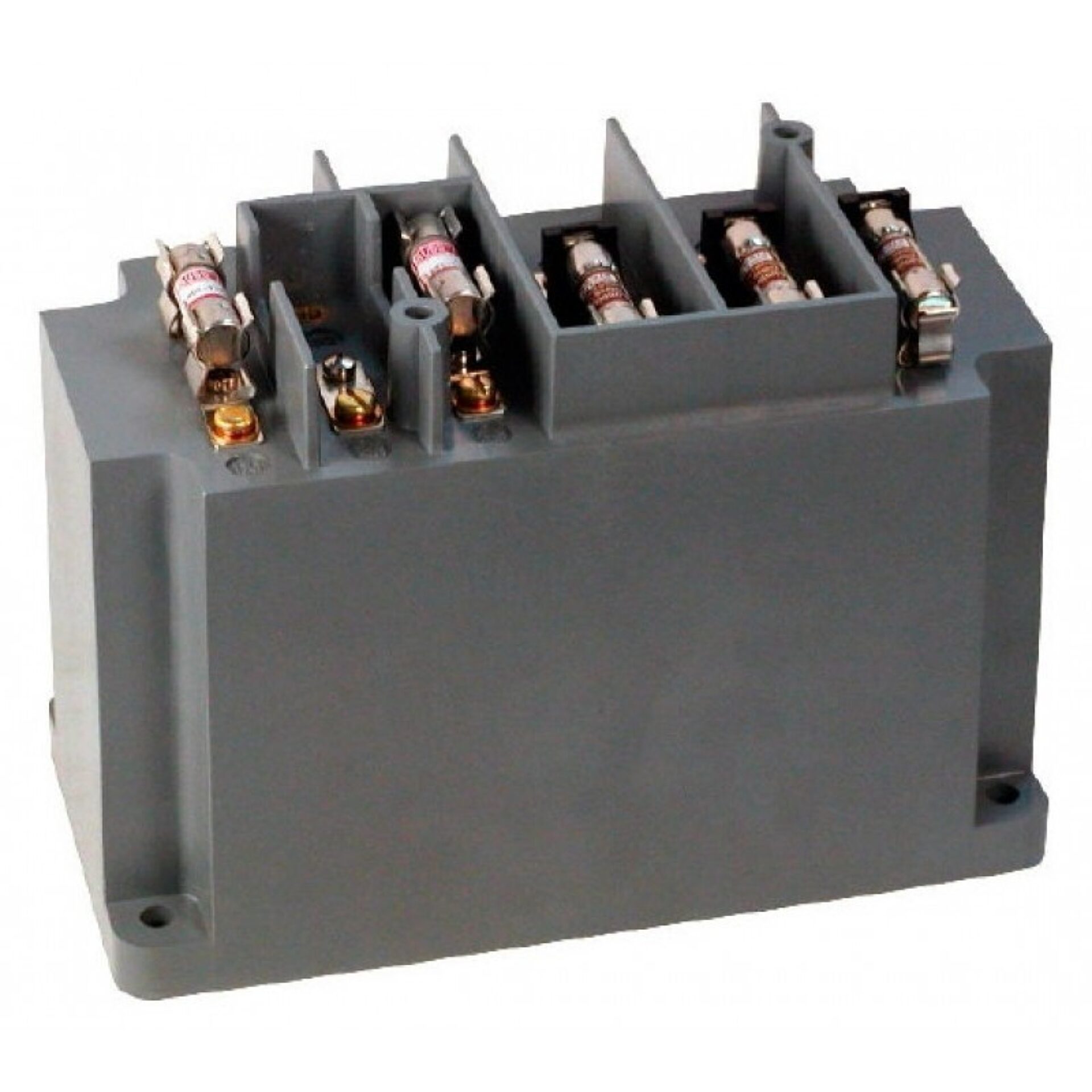

Model 2VT460 3 Phase Voltage Transformer
Model 2VT460 3 Phase Voltage Transformer - Transformers
FREQUENCY: 60 Hz.
STANDARD SECONDARY VOLTAGE: 120 Volts
INSULATION LEVEL: 600 Volt, 10 kV BIL full wave.
ACCURACY CLASS: (Per Phase) 0.6 W, 1.2 X
THERMAL RATING: (Per Phase) 150 VA at 30oC. amb., 100 VA at 55oC. amb.
Terminals are brass screws No. 8-32 with one lockwasher and flatwasher.
Approximate weight 15.5 lbs.
Overview
FREQUENCY: 60 Hz.
STANDARD SECONDARY VOLTAGE: 120 Volts
INSULATION LEVEL: 600 Volt, 10 kV BIL full wave.
ACCURACY CLASS: (Per Phase) 0.6 W, 1.2 X
THERMAL RATING: (Per Phase) 150 VA at 30oC. amb., 100 VA at 55oC. amb.
Terminals are brass screws No. 8-32 with one lockwasher and flatwasher.
Approximate weight 15.5 lbs.
Request a Quote for Model 2VT460 3 Phase Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 15.5 lbs
- Application
- Metering
- Thermal Rating at 55°C
- 100 VA per phase
- Standard Secondary Voltage
- 120 V
- Insulation Level
- 600 V, 10 kV BIL full wave
- Connection Type
- Open delta
- Construction
- Encased core and coil, resin-filled
- Terminals
- Brass screws No. 8-32
- Primary Fuse Type
- Type CC rejection style
- 50 Hz Availability
- Available on request
- Burden — Value
- 150
- Burden — Condition
- max
- Overall Accuracy — Accuracy
- 0.6
- Overall Accuracy — Condition
- Accuracy Class 0.6 W, 1.2 X (per phase)
Maximum 1000 characters
Specification Table
| Primary V | Secondary V | Ratio (display) | Fuse Rating |
|---|---|---|---|
| 69.3 | 120 | 69.3:120 | 5.0 A |
| 69.3 | 120 | 69.3:120 | 5.0 A |
| 120 | 120 | 120:120 | 4.0 A |
| 120 | 120 | 120:120 | 4.0 A |
| 208 | 120 | 208:120 | 2.0 A |
| 208 | 120 | 208:120 | 2.0 A |
| 240 | 120 | 240:120 | 2.0 A |
| 240 | 120 | 240:120 | 2.0 A |
| 288 | 120 | 288:120 | 1.5 A |
| 288 | 120 | 288:120 | 1.5 A |
| 300 | 120 | 300:120 | 1.5 A |
| 300 | 120 | 300:120 | 1.5 A |
| 480 | 120 | 480:120 | 1.0 A |
| 480 | 120 | 480:120 | 1.0 A |
| 600 | 120 | 600:120 | 0.75 A |
| 600 | 120 | 600:120 | 0.75 A |
