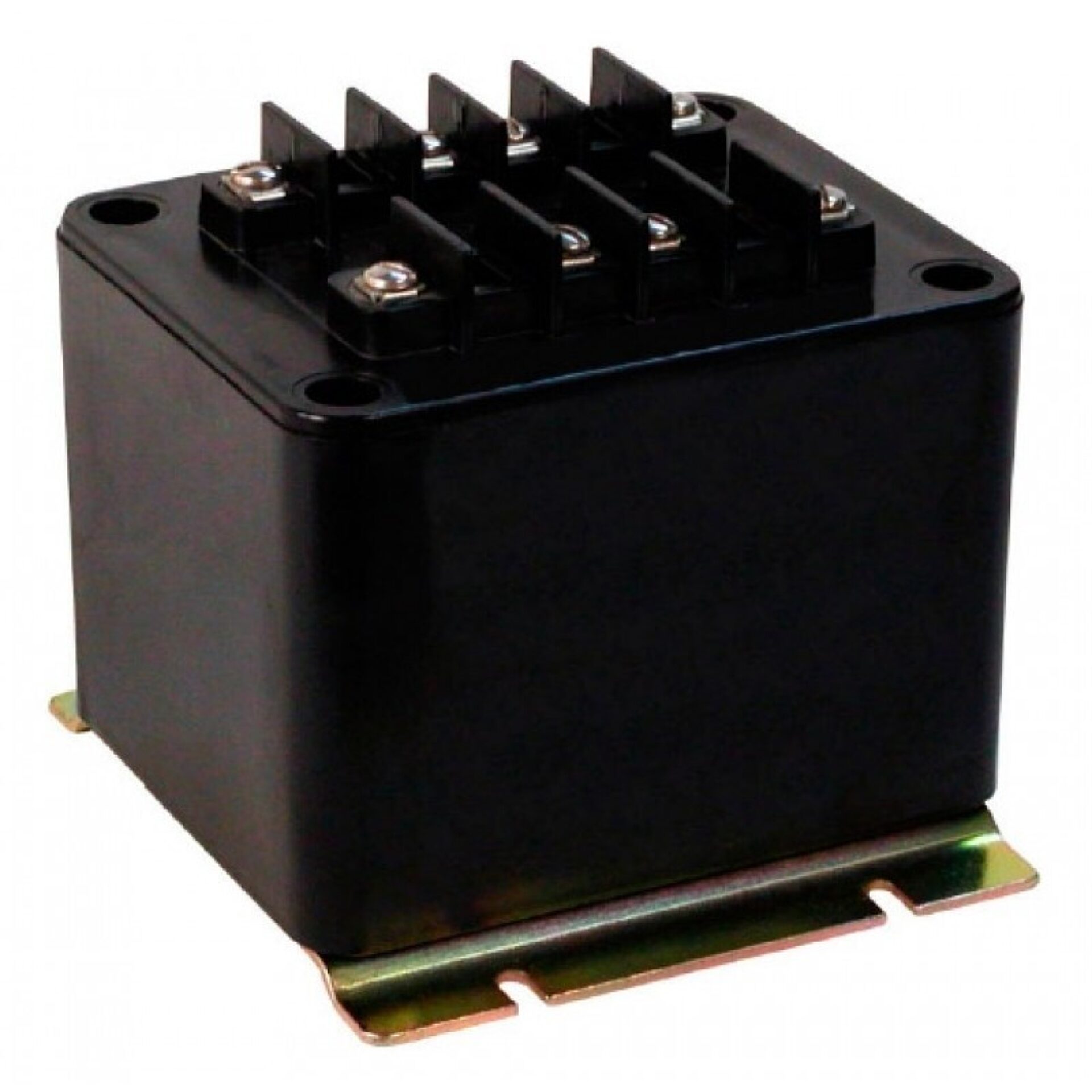

Model 2VT469 3 Phase Voltage Transformer
Model 2VT469 3 Phase Voltage Transformer - Transformers
FREQUENCY: 60 Hz.
STANDARD SECONDARY VOLTAGE: 120 Volts
INSULATION LEVEL: 600 Volt, 10 kV BIL full wave.
ACCURACY CLASS: +/- 1% at all burdens up to 5 VA at 1.0 and 0.95 P.F.
THERMAL RATING: 40 VA at 30oC. amb., 27 VA at 55oC. amb.
Terminals are No. 6-32 screws with one lockwasher and one flatwasher.
Approximate weight 4.5 lbs.
Overview
FREQUENCY: 60 Hz.
STANDARD SECONDARY VOLTAGE: 120 Volts
INSULATION LEVEL: 600 Volt, 10 kV BIL full wave.
ACCURACY CLASS: +/- 1% at all burdens up to 5 VA at 1.0 and 0.95 P.F.
THERMAL RATING: 40 VA at 30oC. amb., 27 VA at 55oC. amb.
Terminals are No. 6-32 screws with one lockwasher and one flatwasher.
Approximate weight 4.5 lbs.
Request a Quote for Model 2VT469 3 Phase Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 4.5 lbs
- Application
- Metering
- Standards
- ANSI/IEEE C57.13
- Thermal Rating (30°C ambient)
- 40 VA
- Thermal Rating (55°C ambient)
- 27 VA
- Standard Secondary Voltage
- 120 V
- Insulation Level
- 600 V, 10 kV BIL full wave
- Terminals
- No. 6-32 screws with one lockwasher and one flatwasher
- Construction
- Core and coil assembly encased in a thermoplastic shell and filled with resin
- Configuration
- Assembly of two transformers in one case with all terminals accessible, for open delta connection
- ANSI C57.13 Group
- Group 1 (Group 2 for 480 V and 600 V primary models)
- Connection
- Designed for line-to-line operation; may be operated line-to-ground or line-to-neutral at 58% of rated voltage
- 50 Hz Availability
- Available with reduced performance
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- at all burdens up to 5 VA at 1.0 and 0.95 P.F.
- Burden — Value
- 5
- Burden — Condition
- max
Maximum 1000 characters
Specification Table
| Primary V | Secondary V | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Fuse Rating |
|---|---|---|---|---|---|
| 69.3 | 120 | 69.3:120 | 40 | 27 | 1.5 |
| 120 | 120 | 120:120 | 40 | 27 | 1 |
| 208 | 120 | 208:120 | 40 | 27 | 0.5 |
| 240 | 120 | 240:120 | 40 | 27 | 0.5 |
| 277 | 120 | 277:120 | 40 | 27 | 0.5 |
| 288 | 120 | 288:120 | 40 | 27 | 0.4 |
| 300 | 120 | 300:120 | 40 | 27 | 0.4 |
| 346 | 120 | 346:120 | 40 | 27 | 0.4 |
| 480 | 120 | 480:120 | 40 | 27 | 0.25 |
| 600 | 120 | 600:120 | 40 | 27 | 0.25 |
