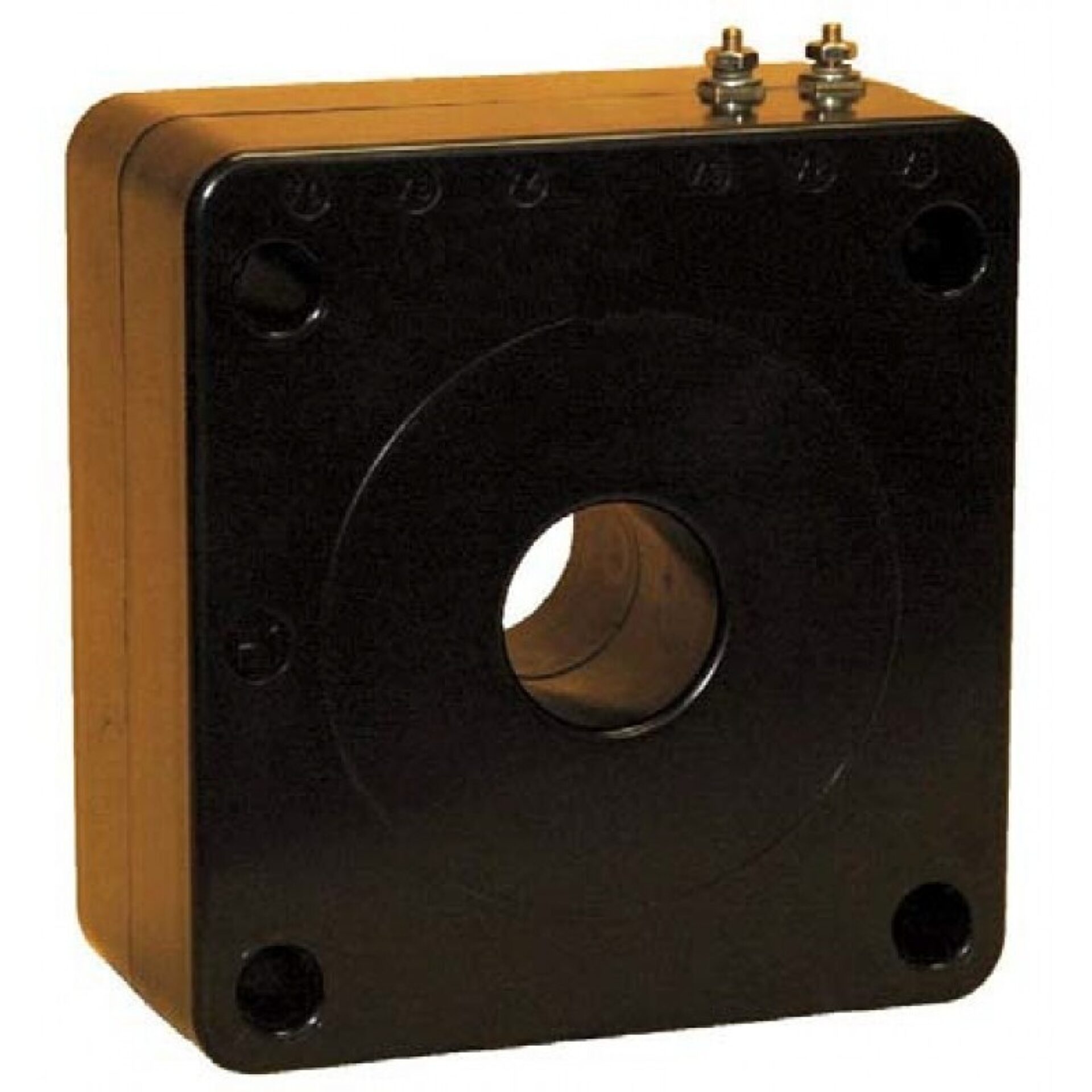

Model 300I Current Transformer
Introducing the Model 300i Current Transformer, a state-of-the-art solution designed to deliver precise and reliable current measurement for a wide range of electrical applications., a global leader in innovative electrical and electronic equipment, this current transformer exemplifies the company's commitment to quality, durability, and performance. Engineered with advanced technology, the Model 300i provides accurate current readings essential for system monitoring, protection, and control.
Overview
Introducing the Model 300i Current Transformer, a state-of-the-art solution designed to deliver precise and reliable current measurement for a wide range of electrical applications., a global leader in innovative electrical and electronic equipment, this current transformer exemplifies the company's commitment to quality, durability, and performance. Engineered with advanced technology, the Model 300i provides accurate current readings essential for system monitoring, protection, and control.
and distributed by Spectrum Industries, this current transformer is built to meet the rigorous demands of industrial, commercial, and utility environments. Its robust construction ensures long-term stability and dependable operation even in challenging conditions. The Model 300i features a compact design that facilitates easy installation and integration into existing systems, making it a versatile choice for engineers and technicians alike.
Designed to deliver high accuracy and safety, the Model 300i current transformer is an ideal component for ensuring optimal performance of electrical systems. Whether used for metering, relaying, or instrumentation, this product and Spectrum Industries offers the reliability and precision that professionals require. With its proven track record and cutting-edge features, the Model 300i stands out as a trusted solution for current measurement needs across various industries.
Request a Quote for Model 300I Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 0.7 kV
- Weight
- 9.04 lbs
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 95.3 mm
- Terminals
- Brass studs, ASA 8-32
- Mounting Bracket Kit
- 0221B00259
- Multi-Ratio Option
- Available on request
- Excitation Data
- Available upon request
- Insulation Level
- 0.72 kV
- Standard
- IEC 60044-1
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 75 | 5 | 75:5 |
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
| 1200 | 5 | 1200:5 |
| 1500 | 5 | 1500:5 |
