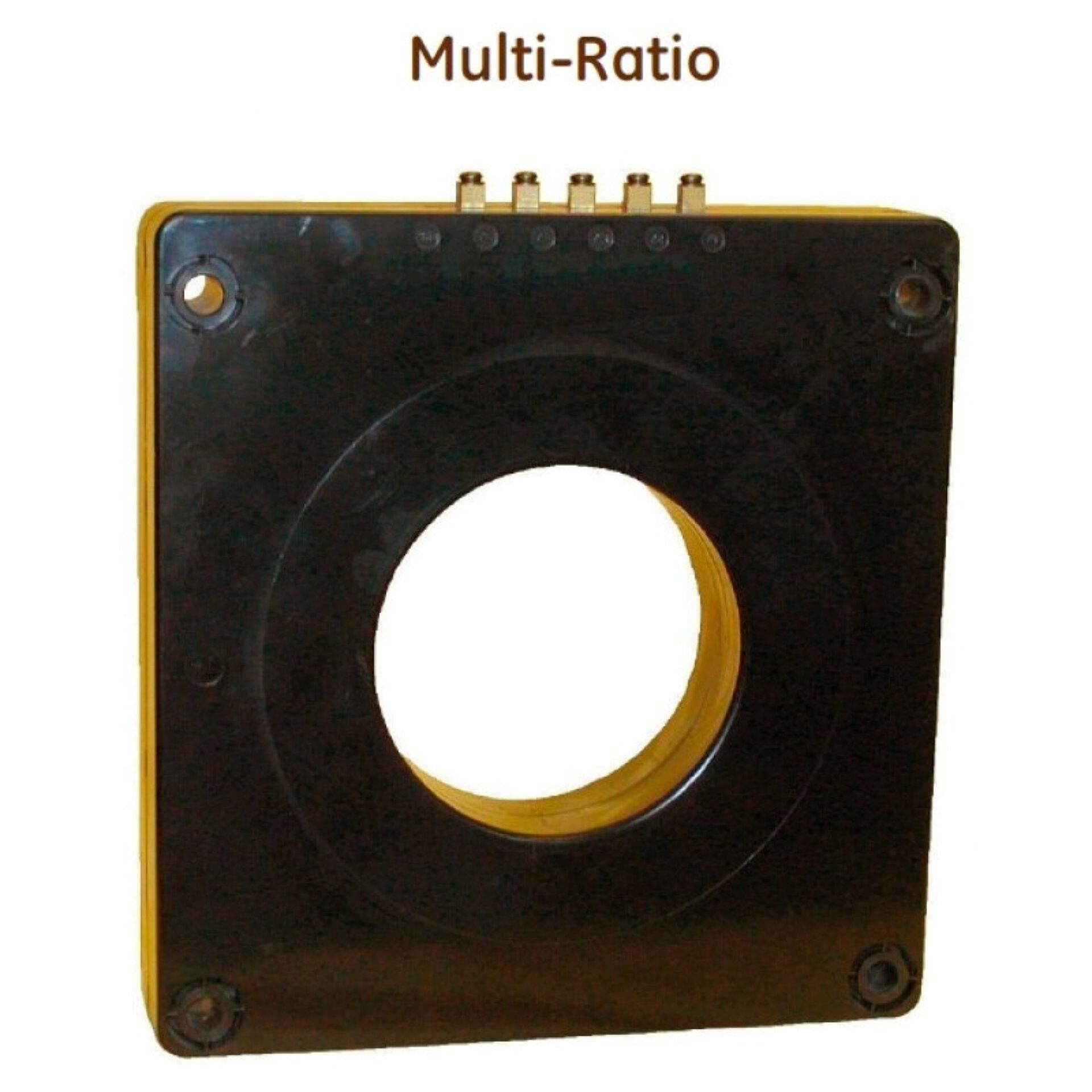

Model 308MR Current Transformer
Introducing the Model 308MR Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this current transformer exemplifies precision engineering and durability, ensuring accurate readings in a variety of industrial and commercial environments. The Model 308MR is engineered to provide consistent performance, making it an essential component for professionals seeking dependable current measurement capabilities.
Overview
Introducing the Model 308MR Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this current transformer exemplifies precision engineering and durability, ensuring accurate readings in a variety of industrial and commercial environments. The Model 308MR is engineered to provide consistent performance, making it an essential component for professionals seeking dependable current measurement capabilities.
Constructed with robust materials and adhering to strict manufacturing standards, the Model 308MR offers excellent electrical insulation and resistance to environmental factors such as temperature fluctuations and mechanical stresses. Its compact design allows for easy installation in various settings, while its high accuracy ensures precise current readings essential for system analysis, maintenance, and safety protocols. Whether used in power distribution, control systems, or energy management, this current transformer delivers reliable and stable performance over time.
a global leader in electrical equipment manufacturing, the Model 308MR Current Transformer benefits from decades of expertise in electrical innovation. Spectrum Industries, a trusted distributor of high-quality electrical components, ensures that this product is readily available to meet the needs of engineers, technicians, and maintenance personnel. With the Model 308MR, you can confidently enhance your electrical systems with a proven, durable, and accurate current measurement solution.
Request a Quote for Model 308MR Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 34 lbs
- Application
- Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Voltage Rating
- 600 V
- Window Diameter
- 5.75"
- Terminals
- No. 10-32 brass screws
- Mounting Bracket Kit
- 0221B01527
- Winding Arrangement
- Fully distributed multi-ratio
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 600 | 5 | 600:5 | C100 | 2 | 2 |
| 1200 | 5 | 1200:5 | C200 | 2 | 1.5 |
| 2000 | 5 | 2000:5 | C400 | 1.5 | 1 |
| 3000 | 5 | 3000:5 | C400 | 1.33 | 1 |
| 4000 | 5 | 4000:5 | C400 | 1 | 0.8 |
