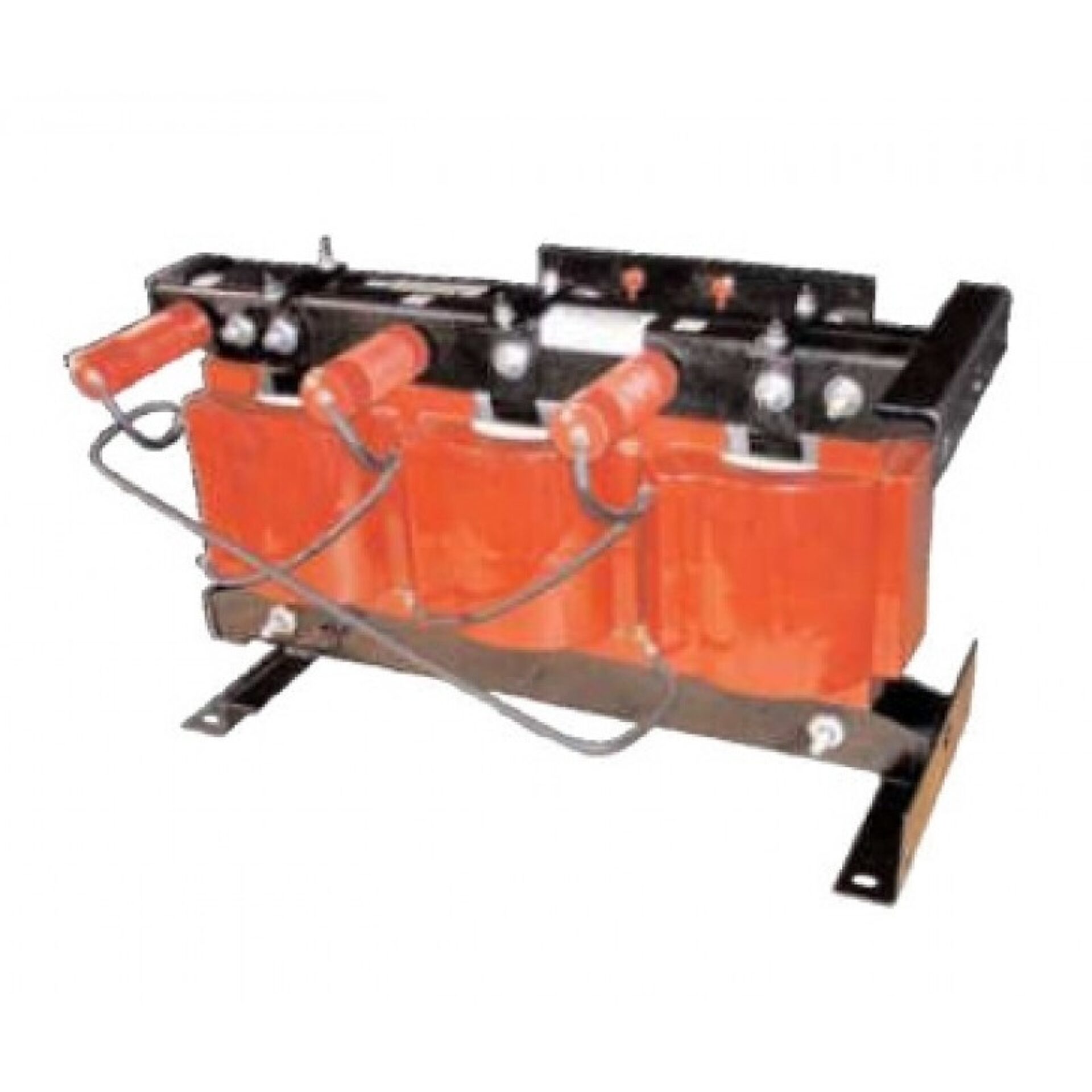

Model 3CPT3-60-15 Medium Voltage Transformer - 15 kVA - 60 kV BIL

Application: To provide control power in medium voltage switchgear Frequency: 60 Hz Insulation Level: 5 kV, 60 kV BIL full wave, 130 oC Thermal Rating: 15 kVA at 30 oC ambient. 13 kVA at 55 oC ambient. 80 oC rise. Primary terminals are copper compression type lugs. Secondary terminals are brass studs 1/2- 13 with one flatwasher, lockwasher and two regular nuts. Windings are encapsulated in epoxy resin. Assembly is varnish coated. Supplied with taps on primary side: Cat. suffix A (1 ) + 7 1/ 2% taps or Cat. suffix B (2 ) + 2 1/ 2% taps Secondary typically 208 Y/120 V. Available as unfused only. Universal vertical or horizontal mounting. Mounting base and frame is 7 ga. (0.188" thk) steel with (8) 0.56 x 0.875 slots. For indoor use. Approximate weight 650 lbs.
