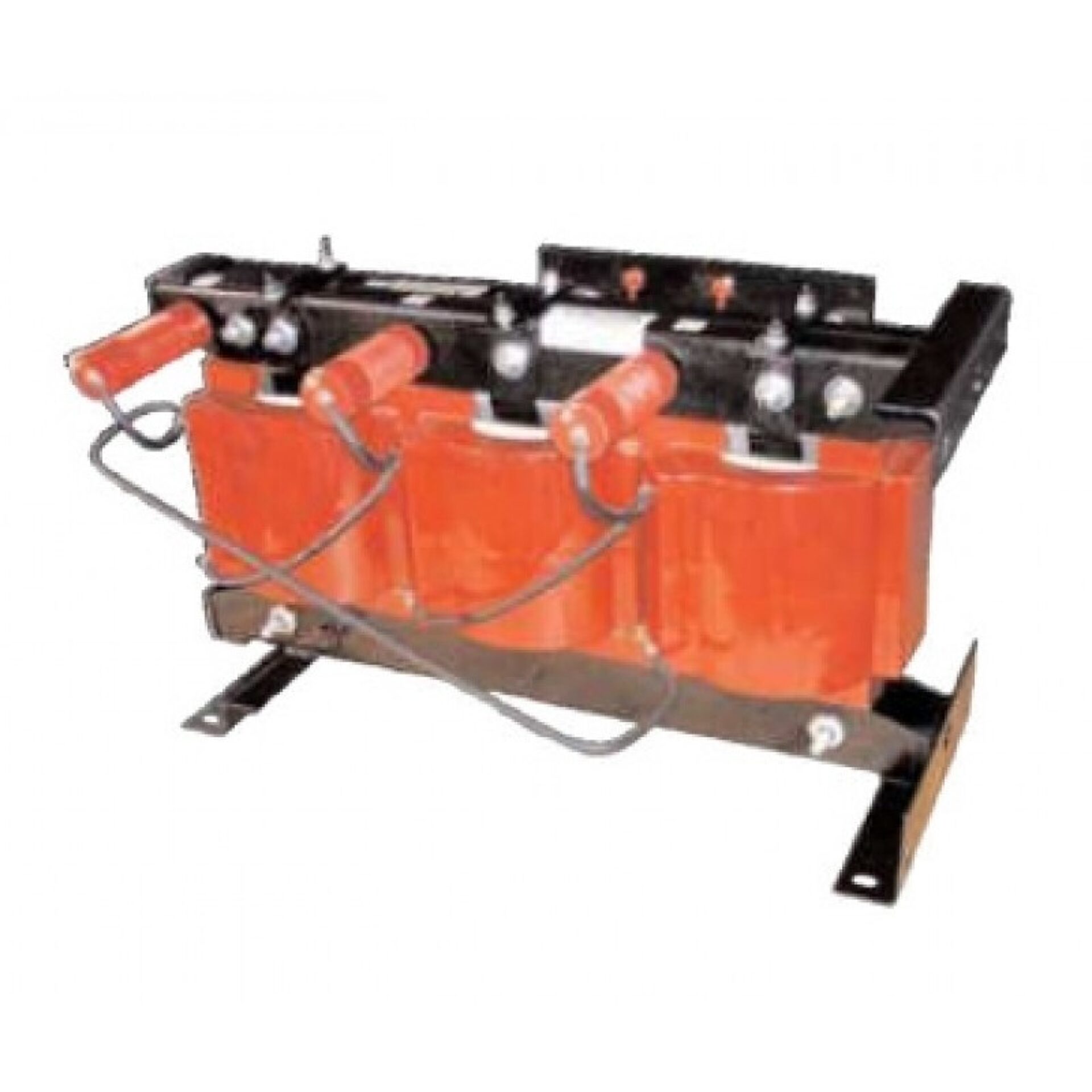

Model 3CPT5-95-15 Medium Voltage Transformer - 15 kVA - 95 kV BIL
Introducing the Model 3CPT5-95-15 Medium Voltage Transformer, a reliable and efficient solution designed to meet the demanding requirements of modern electrical systems., a global leader in electrical equipment and power solutions, this transformer embodies quality, durability, and precision engineering. With a power rating of 15 kVA and a primary voltage of 95 kV BIL, it is engineered to provide safe and stable voltage transformation in various industrial, commercial, and utility applications.
Overview
Introducing the Model 3CPT5-95-15 Medium Voltage Transformer, a reliable and efficient solution designed to meet the demanding requirements of modern electrical systems., a global leader in electrical equipment and power solutions, this transformer embodies quality, durability, and precision engineering. With a power rating of 15 kVA and a primary voltage of 95 kV BIL, it is engineered to provide safe and stable voltage transformation in various industrial, commercial, and utility applications.
Spectrum Industries is proud to offer this high-performance transformer, which is built to deliver consistent performance even in challenging environments. Its robust construction and advanced design ensure long-lasting operation, minimizing maintenance needs and maximizing uptime. The Model 3CPT5-95-15 is ideal for applications requiring reliable voltage regulation, isolation, or step-down functions, making it a versatile choice for electrical distribution systems.
Designed with safety and efficiency in mind, this transformer adheres to the highest industry standards, ensuring compliance and peace of mind for users. Whether used in new installations or as a replacement component, the Model 3CPT5-95-15 from Spectrum Industries provides a dependable solution backed by ’s trusted engineering excellence. It’s an excellent investment for those seeking a durable, high-quality medium voltage transformer that delivers consistent, safe, and efficient performance over its lifespan.
Request a Quote for Model 3CPT5-95-15 Medium Voltage Transformer - 15 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 650 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Insulation Voltage Class
- 15 kV, 95 kV BIL full wave, 130°C insulation system
- Winding Construction
- Windings encapsulated in epoxy resin; assembly varnish coated
- Mounting Base/Frame
- 7 ga. (0.188 in thk) steel with (8) 0.56 x 0.875 in slots; universal vertical or horizontal mounting
- Terminals
- Primary: copper compression-type lugs. Secondary: 1/2-13 brass studs with one flatwasher, lockwasher, and two regular nuts
- Thermal Rating
- 15 kVA at 30°C ambient; 13 kVA at 55°C ambient; 80°C rise
- Fuse Configuration
- Available as unfused only
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 208 | 15 | 5E | Suffix A: 1 ± 7 1/2% taps; Suffix B: 2 ± 2 1/2% taps (append A or B to catalog number) |
| 8400 | 208 | 15 | 5E | Suffix A: 1 ± 7 1/2% taps; Suffix B: 2 ± 2 1/2% taps (append A or B to catalog number) |
| 12000 | 208 | 15 | 3E | Suffix A: 1 ± 7 1/2% taps; Suffix B: 2 ± 2 1/2% taps (append A or B to catalog number) |
| 12470 | 208 | 15 | 3E | Suffix A: 1 ± 7 1/2% taps; Suffix B: 2 ± 2 1/2% taps (append A or B to catalog number) |
| 13200 | 208 | 15 | 3E | Suffix A: 1 ± 7 1/2% taps; Suffix B: 2 ± 2 1/2% taps (append A or B to catalog number) |
| 13800 | 208 | 15 | 3E | Suffix A: 1 ± 7 1/2% taps; Suffix B: 2 ± 2 1/2% taps (append A or B to catalog number) |
