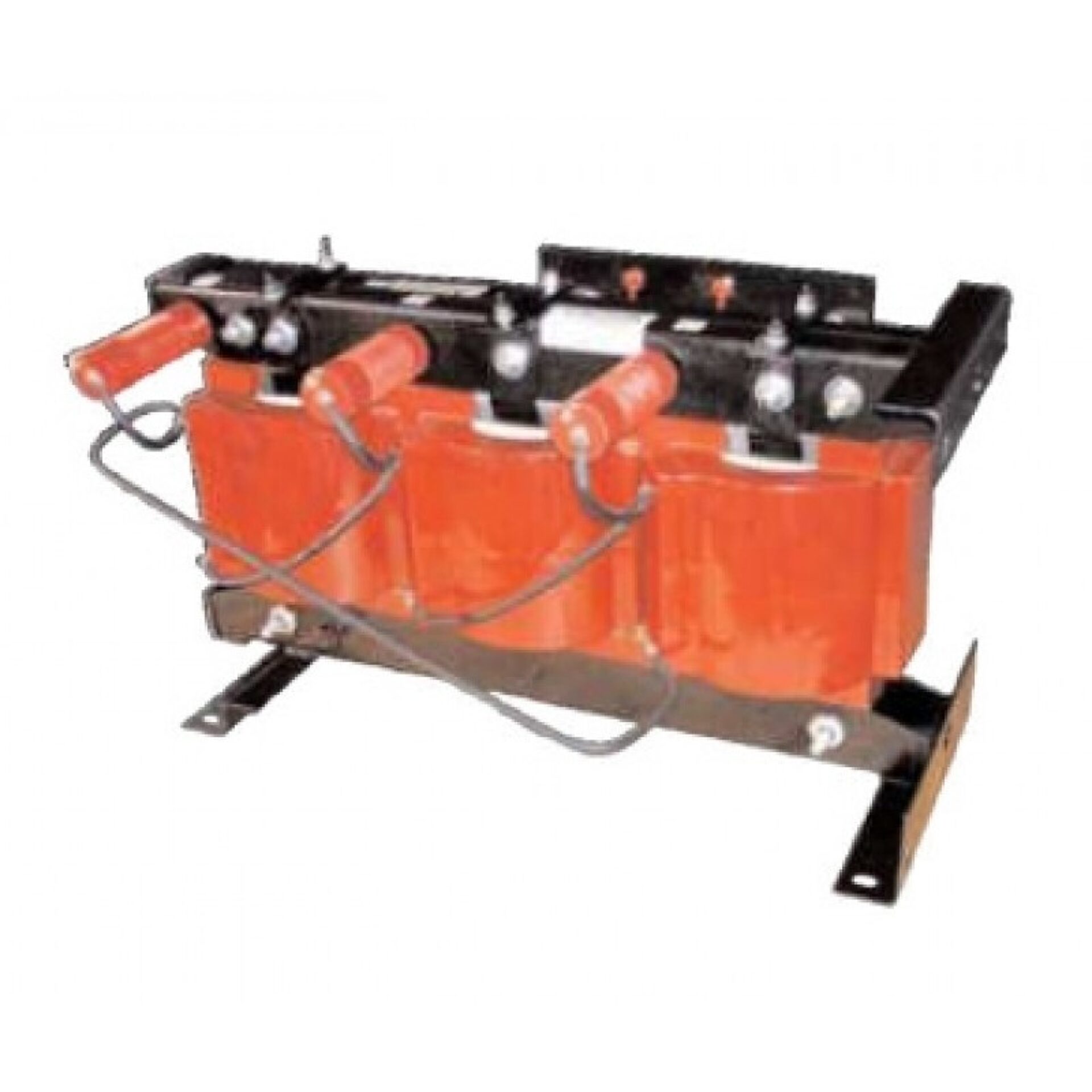

Model 3CPT5-95-30 Control Power Transformer - 30 kVA - 95 kV BIL
Introducing the Model 3CPT5-95-30 Control Power Transformer, a high-quality solution designed to meet the demanding needs of electrical systems requiring reliable power conversion., a global leader in electrical equipment and innovation, this transformer exemplifies durability, efficiency, and precision. Engineered specifically for control power applications, it provides a stable and consistent voltage supply, ensuring optimal performance of your electrical controls and instrumentation.
Overview
Introducing the Model 3CPT5-95-30 Control Power Transformer, a high-quality solution designed to meet the demanding needs of electrical systems requiring reliable power conversion., a global leader in electrical equipment and innovation, this transformer exemplifies durability, efficiency, and precision. Engineered specifically for control power applications, it provides a stable and consistent voltage supply, ensuring optimal performance of your electrical controls and instrumentation.
The 3CPT5-95-30 is rated at 30 kVA and is designed to operate at a primary voltage of 95 kV, making it suitable for a wide range of industrial and utility applications. Its robust construction and advanced engineering features ensure it can withstand harsh operational environments while maintaining excellent electrical performance. Whether used in power distribution, control panels, or automation systems, this transformer offers peace of mind through its reliability and long service life.
a name synonymous with quality and innovation in the electrical industry, this control power transformer benefits from decades of expertise and technological advancement. Spectrum Industries has partnered with to bring this dependable product to market, ensuring that customers receive a transformer that not only meets but exceeds industry standards. With the Model 3CPT5-95-30, you get a trusted solution that enhances the safety, efficiency, and reliability of your electrical infrastructure.
Request a Quote for Model 3CPT5-95-30 Control Power Transformer - 30 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 730 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Insulation Level - Voltage Class
- 15 kV class, 95 kV BIL full wave
- Thermal Rating
- 30 kVA at 30C ambient; 25.7 kVA at 55C ambient, 80C rise
- Terminals
- Primary: copper compression type lugs. Secondary: brass studs 1/2-13 with one flatwasher, lockwasher and two regular nuts.
- Winding Construction
- Windings encapsulated in epoxy resin
- Mounting Base / Frame
- Steel mounting base, varnish coated assembly; base and frame 7 ga. (0.188 in thk) steel with (8) 0.56 x 0.875 slots. Vertical or horizontal mounting.
- Fusing
- Available as unfused only
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 208 | 30 | 10E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 8400 | 208 | 30 | 10E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 12000 | 208 | 30 | 5E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 12470 | 208 | 30 | 5E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 13200 | 208 | 30 | 5E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
| 13800 | 208 | 30 | 5E | Suffix A: (1) + 7.5% taps; Suffix B: (2) + 2.5% taps |
