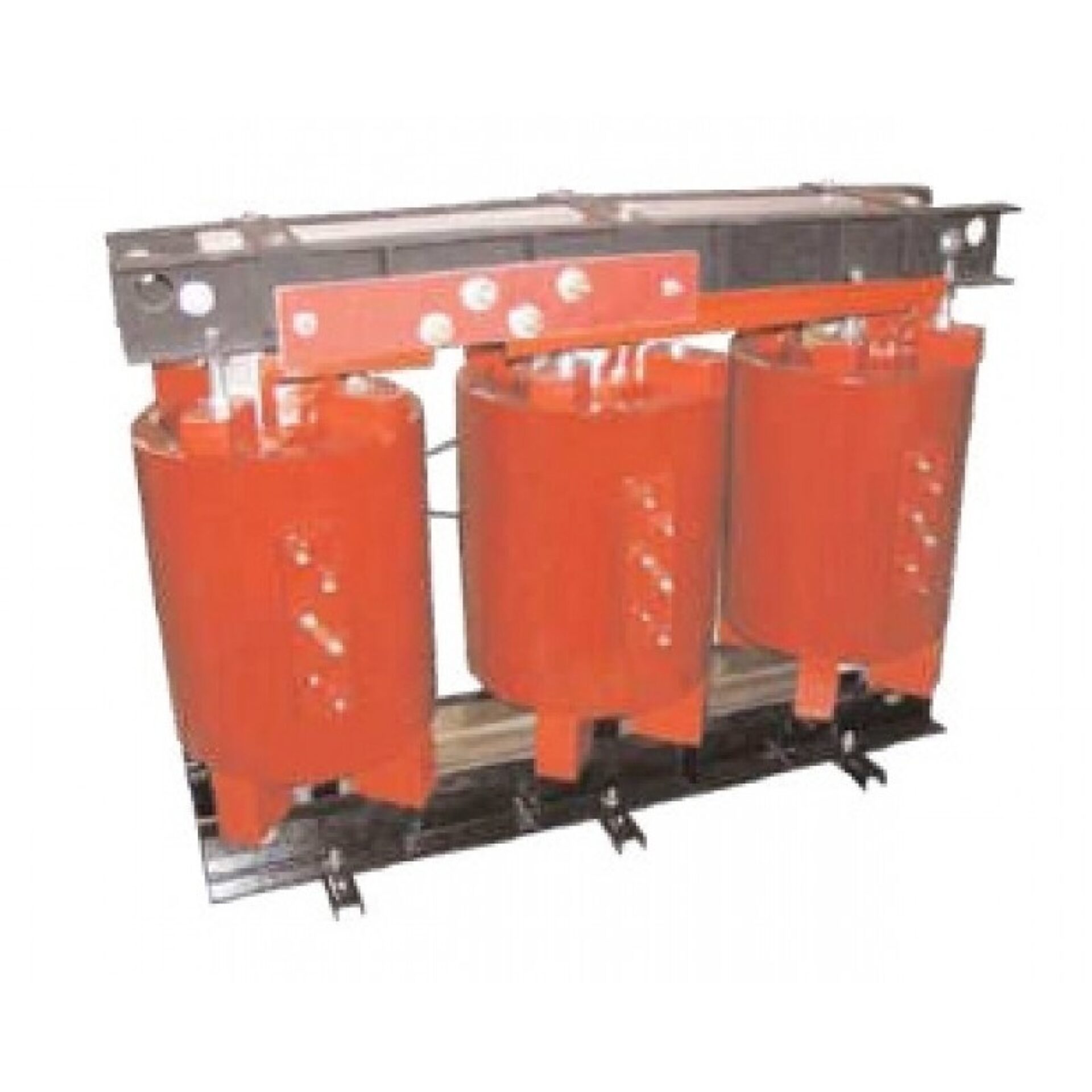

Model 3CPTD3-60-75 Control Power Transformer Medium Voltage - 75 kVA - 60 kV BIL

Application: To provide control power in medium voltage switchgear. Frequency: 60 Hz Insulation Level: 5 kV & 15 kV Class, 60 kV & 95 kV BIL, 150 oC Thermal Rating: 75 kVA at 30 °C ambient. 64.3 kVA at 55 °C ambient. H.V. Terminals are No. 8-2 connector. L. V. Terminals are 1/2-13 brass studs. Windings are encapsulated in epoxy resin. Mounting base is steel. Assembly is varnish coated. ( 6 ) Mounting slots are 0.37 x 0.75, Typ. Low voltage available, 208 Y/120 V. For indoor use. Approximate weight 2000 lbs.
