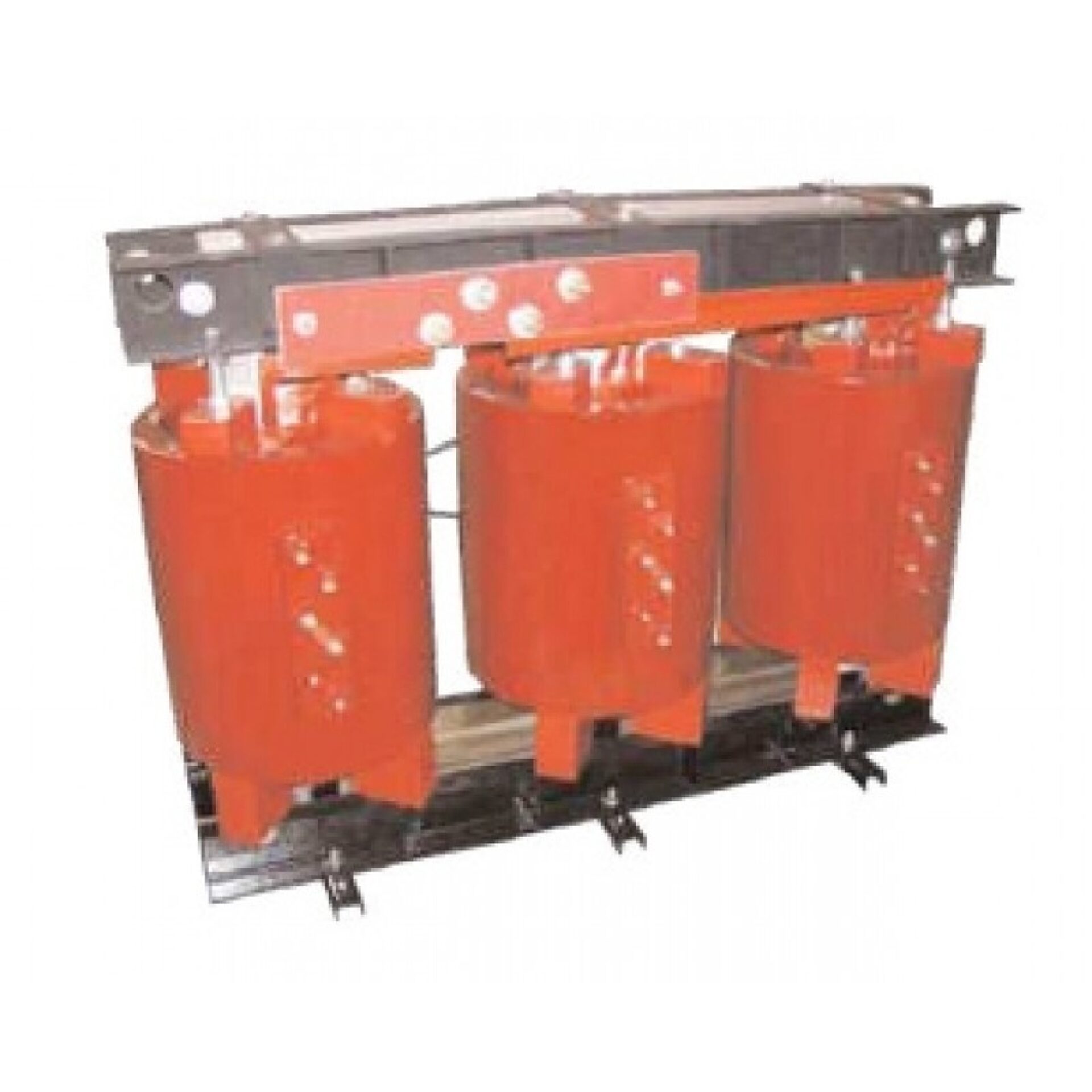

Model 3CPTD5-95-75 Control Power Transformer Medium Voltage - 75 kVA - 95 kV BIL

Application: To provide control power in medium voltage switchgear. Frequency: 60 Hz Insulation Level: 5 kV & 15 kV Class, 60 kV & 95 kV BIL, 150 oC Thermal Rating: 75 kVA at 30 °C ambient. 64.3 kVA at 55 °C ambient. H.V. Terminals are No. 8-2 connector. L. V. Terminals are 1/2-13 brass studs. Windings are encapsulated in epoxy resin. Mounting base is steel. Assembly is varnish coated. ( 6 ) Mounting slots are 0.37 x 0.75, Typ. Low voltage available, 208 Y/120 V. For indoor use. Approximate weight 2000 lbs.

Would you like to customize this product? Get in touch with us today to request a quote, check product availability, or discuss your specific project needs. You can reach us via phone, email, or by filling out the convenient contact form below. We pride ourselves on prompt, friendly service and look forward to helping you achieve reliable, efficient electrical system performance.
meters@spectrumind.com
Ph: (978) 887-2020
Fax: (978) 887-2225
meters@spectrumind.com

Additional Information

3CPTD3-60-75 and 3CPTD5-95-75 Specs

Options

Taps
