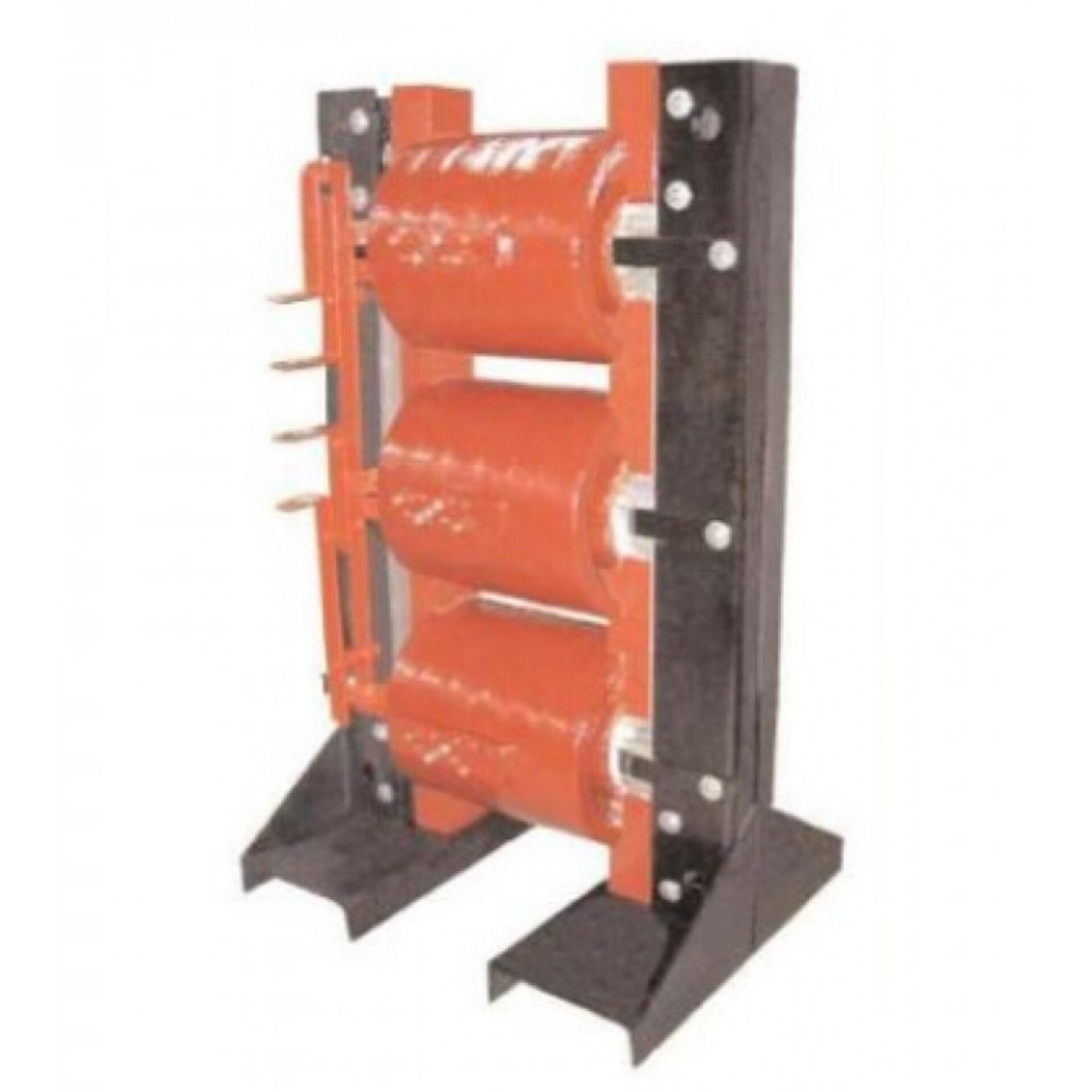

Model 3CPTDV5-95-75 Control Power Transformer Medium Voltage - 75 kVA - 95 kV BIL
Introducing the Model 3CPTDV5-95/75 Control Power Transformer, a state-of-the-art solution designed to meet the demanding needs of medium-voltage electrical systems., a global leader in electrical equipment and engineering, this transformer exemplifies reliability, efficiency, and advanced performance. Engineered specifically for control power applications, it ensures stable and consistent voltage supply, which is essential for the safe and efficient operation of various industrial and utility equipment.
Overview
Introducing the Model 3CPTDV5-95/75 Control Power Transformer, a state-of-the-art solution designed to meet the demanding needs of medium-voltage electrical systems., a global leader in electrical equipment and engineering, this transformer exemplifies reliability, efficiency, and advanced performance. Engineered specifically for control power applications, it ensures stable and consistent voltage supply, which is essential for the safe and efficient operation of various industrial and utility equipment.
The Model 3CPTDV5-95/75 is rated at 75 kVA and is designed to operate at a voltage level of 95 kV, making it suitable for a wide range of medium-voltage environments. Its robust construction and high-quality components guarantee durability and long-term performance even in challenging conditions. This transformer features precise voltage regulation and low losses, contributing to energy savings and operational stability. Its compact design facilitates easy installation and maintenance, providing a practical solution for control power needs in substations, manufacturing plants, and other industrial facilities.
and distributed through Spectrum Industries, this transformer combines the trusted engineering excellence of with Spectrum Industries’ commitment to quality and customer satisfaction. Whether upgrading existing systems or installing new infrastructure, the Model 3CPTDV5-95/75 offers a reliable, efficient, and durable choice for medium-voltage control power applications.
Request a Quote for Model 3CPTDV5-95-75 Control Power Transformer Medium Voltage - 75 kVA - 95 kV BIL
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 95 kV
- Weight
- 2000 lbs
- Mounting
- Indoor
- Application
- Switchgear, Control Power
- Standards
- NEC
- Frequency
- 60 Hz
- Insulation Level
- 5 kV & 15 kV Class
- Thermal Rating
- 75 kVA at 30 °C. ambient
Specification Table
| Primary V | Secondary V | kVA Rating | Fuse Rating | Taps Config |
|---|---|---|---|---|
| 7200 | 120 | 75 | 20E | 2 ±2-1/2%, suffix B |
| 8400 | 120 | 75 | 20E | 2 ±2-1/2%, suffix B |
| 12000 | 120 | 75 | 10E | 2 ±2-1/2%, suffix B |
| 12470 | 120 | 75 | 10E | 2 ±2-1/2%, suffix B |
| 13200 | 120 | 75 | 10E | 2 ±2-1/2%, suffix B |
| 13800 | 120 | 75 | 10E | 2 ±2-1/2%, suffix B |
