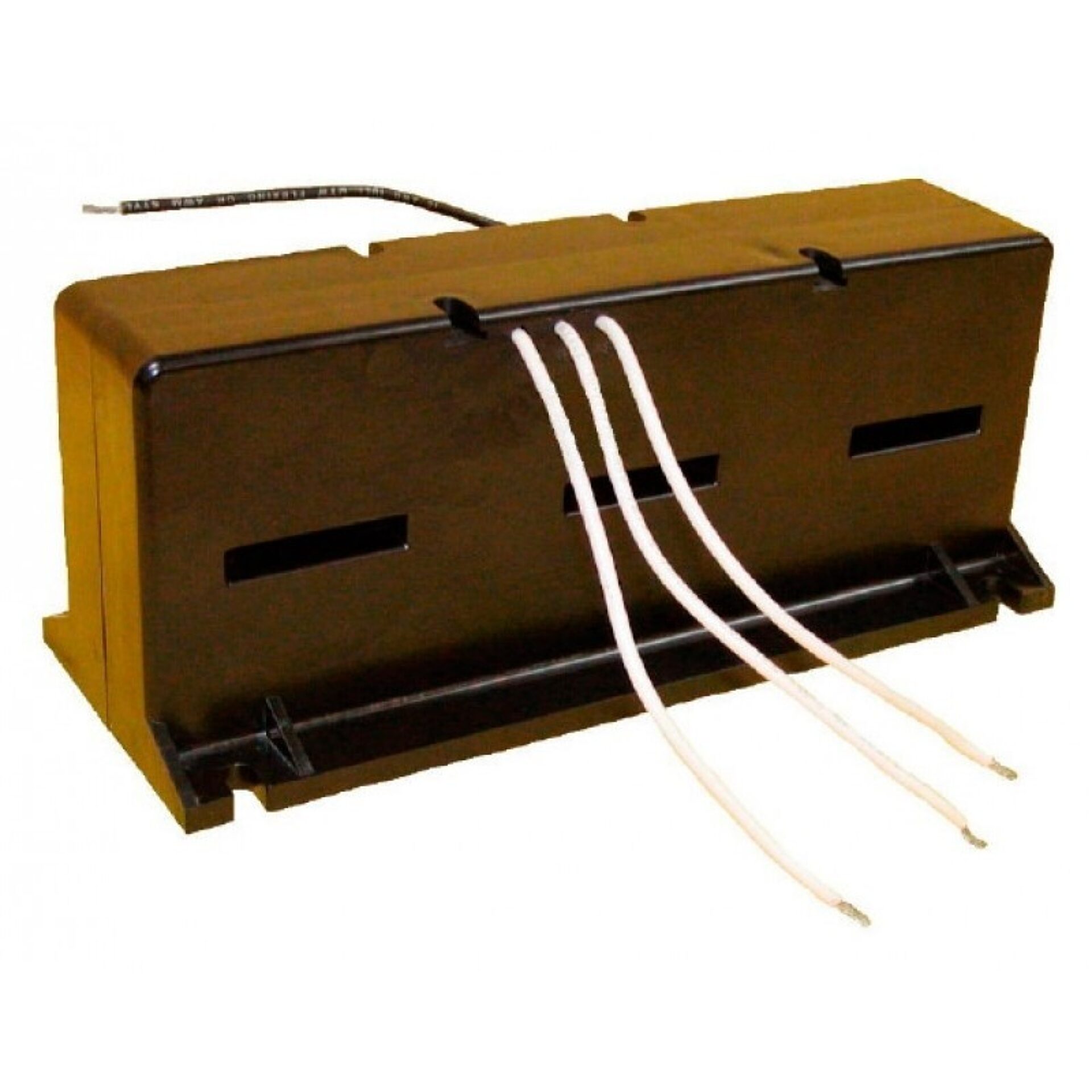

Model 3P10 Current Transformer
Introducing the Model 3P10 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to provide precise current measurement and enhance the safety and efficiency of electrical systems, this current transformer is an essential tool for professionals in the electrical and industrial sectors.
Overview
Introducing the Model 3P10 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to provide precise current measurement and enhance the safety and efficiency of electrical systems, this current transformer is an essential tool for professionals in the electrical and industrial sectors.
a globally recognized leader in electrical equipment and innovation, the Model 3P10 offers exceptional reliability and performance. Its robust construction ensures durability in various operating environments, making it suitable for both residential and commercial applications. The transformer features a compact design, allowing for easy installation without compromising accuracy or functionality. Its high accuracy ratings enable precise current measurement, which is critical for system monitoring, fault detection, and energy management.
Spectrum Industries, a trusted distributor of electrical components, ensures that each Model 3P10 transformer meets stringent quality standards. This product is designed to seamlessly integrate into existing electrical setups, providing consistent and reliable performance over time. Whether used for metering, protection, or control purposes, the Model 3P10 current transformer is a dependable choice for engineers, technicians, and maintenance professionals seeking a top-tier solution.
In summary, the -produced Model 3P10 Current Transformer, available through Spectrum Industries, combines advanced engineering with proven reliability. It is an ideal component for ensuring accurate current measurement and maintaining the integrity of electrical systems in a variety of applications.
Request a Quote for Model 3P10 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Application
- Protection, Motor Control
- Voltage Class
- 600 V
- Secondary Leads
- UL 1015, 105 C, CSA, No. 16 AWG, 24 in
- Window Size
- 1.58 in x 0.26 in
- Continuous Thermal Rating Factor
- 1.0 at 30 C / 0.75 at 55 C
- Mounting
- Bus bar mount
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|
| 200 | 5 | 200:5 | 1 | 0.75 | 0.056 |
| 250 | 5 | 250:5 | 1 | 0.75 | 0.071 |
| 300 | 5 | 300:5 | 1 | 0.75 | 0.089 |
| 400 | 5 | 400:5 | 1 | 0.75 | 0.113 |
| 500 | 5 | 500:5 | 1 | 0.75 | 0.186 |
| 600 | 5 | 600:5 | 1 | 0.75 | 0.223 |
