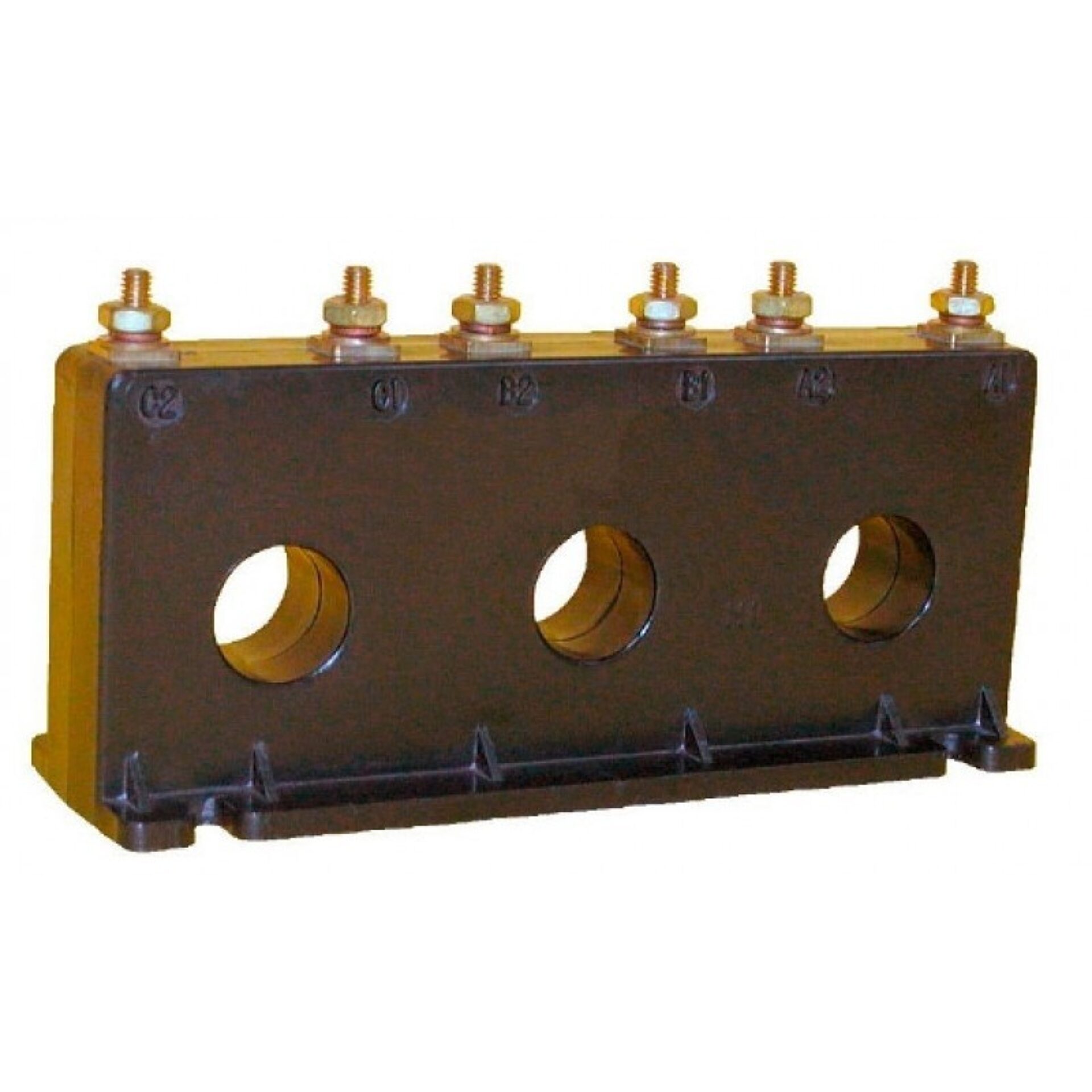

Model 3P2 Current Transformer
Introducing the Model 3P2 Current Transformer, a high-quality solution and produced by Spectrum Industries. Designed to meet the demanding requirements of modern electrical systems, this current transformer provides precise measurement and reliable performance in a compact and durable package. Whether used in industrial, commercial, or utility applications, the Model 3P2 ensures accurate current sensing, which is essential for effective system monitoring, protection, and control.
Overview
Introducing the Model 3P2 Current Transformer, a high-quality solution and produced by Spectrum Industries. Designed to meet the demanding requirements of modern electrical systems, this current transformer provides precise measurement and reliable performance in a compact and durable package. Whether used in industrial, commercial, or utility applications, the Model 3P2 ensures accurate current sensing, which is essential for effective system monitoring, protection, and control.
Manufactured by Spectrum Industries, a trusted name in electrical instrumentation, this current transformer embodies the latest technological advancements and rigorous quality standards. Its robust construction ensures long-term stability and accuracy, even in challenging environments. The Model 3P2 is engineered to seamlessly integrate into existing electrical setups, offering ease of installation and maintenance. Its design emphasizes safety, precision, and durability, making it an ideal choice for professionals seeking dependable current measurement solutions.
Produced under the reputable brand, the Model 3P2 Current Transformer benefits from decades of innovation and expertise in electrical engineering. It is a testament to ’s commitment to delivering high-performance products that meet the highest industry standards. Whether for new installations or upgrades, this current transformer provides the reliability and accuracy necessary to optimize electrical system performance and ensure safety across a broad range of applications.
Request a Quote for Model 3P2 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.5 lbs
- Application
- Metering, Switchgear
- Insulation Voltage
- 600 V full wave
- Mounting
- Horizontal
- Terminals
- Brass studs No. 8-32
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 50 | 5 | 50:5 | 1.33 | 1 |
| 60 | 5 | 60:5 | 1.33 | 1 |
| 75 | 5 | 75:5 | 1.33 | 1 |
| 80 | 5 | 80:5 | 1.33 | 1 |
| 100 | 5 | 100:5 | 1.33 | 1 |
| 120 | 5 | 120:5 | 1.33 | 1 |
| 125 | 5 | 125:5 | 1.33 | 1 |
| 150 | 5 | 150:5 | 1.33 | 1 |
| 200 | 5 | 200:5 | 1.33 | 1 |
| — | 5 | — | — | — |
