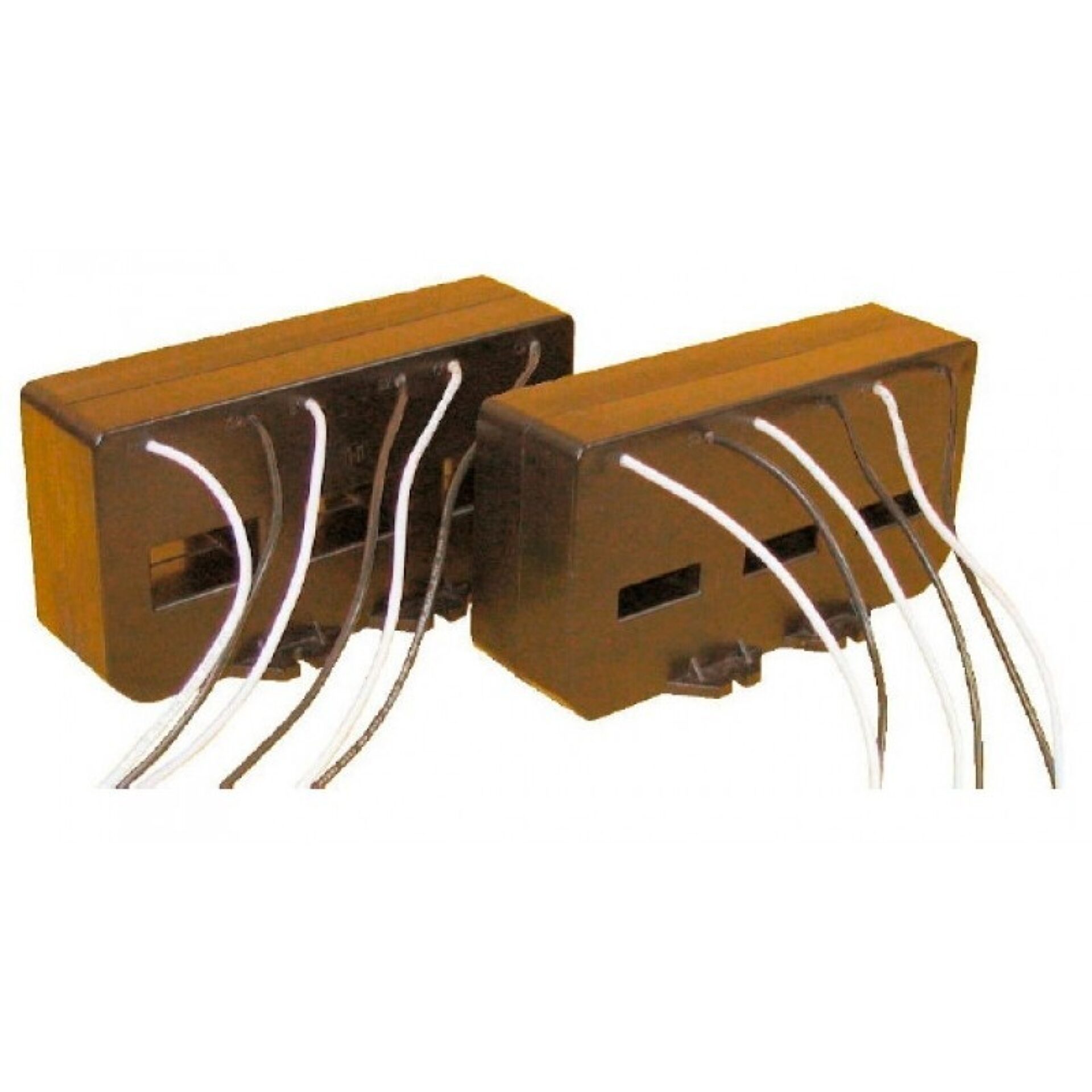

Model 3P27 Current Transformers
Introducing the Model 3P27 Current Transformers, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise and reliable current measurement, these transformers are an essential component for electrical systems that demand accuracy and durability. Whether you're involved in power distribution, industrial automation, or energy management, the Model 3P27 provides the performance you need to monitor electrical loads effectively.
Overview
Introducing the Model 3P27 Current Transformers, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise and reliable current measurement, these transformers are an essential component for electrical systems that demand accuracy and durability. Whether you're involved in power distribution, industrial automation, or energy management, the Model 3P27 provides the performance you need to monitor electrical loads effectively.
a globally recognized leader in electrical engineering and manufacturing, these current transformers incorporate advanced technology and rigorous quality standards. Spectrum Industries has partnered with to bring this innovative product to market, ensuring that it meets the highest industry benchmarks. The Model 3P27 is built to withstand demanding environments while maintaining consistent accuracy over its lifespan, making it a dependable choice for professionals seeking long-term reliability.
This product features a compact design that facilitates easy installation in various settings, from control panels to large-scale electrical systems. Its robust construction and precise calibration make it suitable for a wide range of applications where accurate current measurement is critical. With the Model 3P27 Current Transformers, Spectrum Industries continues its commitment to providing top-tier electrical components that enhance system performance and safety.
Request a Quote for Model 3P27 Current Transformers
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 2 lbs
- Application
- Protection, Motor Control
- Application
- 3 phase relaying and motor overload protection
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Window Sizes
- 1.44 in x 0.44 in; 1.56 in x 0.82 in
- Continuous Thermal Current Rating Factor
- 1.33 at 30 C ambient; 1.0 at 55 C ambient
- Leads
- UL 1015, 105 C, CSA approved, No. 16 AWG, 24 in long
- Approximate Weight
- 2 lbs
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|
| 200 | 5 | 200:5 | 1.33 | 1 | 0.04 |
| 250 | 5 | 250:5 | 1.33 | 1 | 0.048 |
| 300 | 5 | 300:5 | 1.33 | 1 | 0.057 |
| 400 | 5 | 400:5 | 1.33 | 1 | 0.079 |
| 500 | 5 | 500:5 | 1.33 | 1 | 0.099 |
| 600 | 5 | 600:5 | 1.33 | 1 | 0.119 |
| 400 | 5 | 400:5 | 1.33 | 1 | 0.072 |
| 500 | 5 | 500:5 | 1.33 | 1 | 0.09 |
| 600 | 5 | 600:5 | 1.33 | 1 | 0.108 |
| 900 | 5 | 900:5 | 1.33 | 1 | 0.15 |
